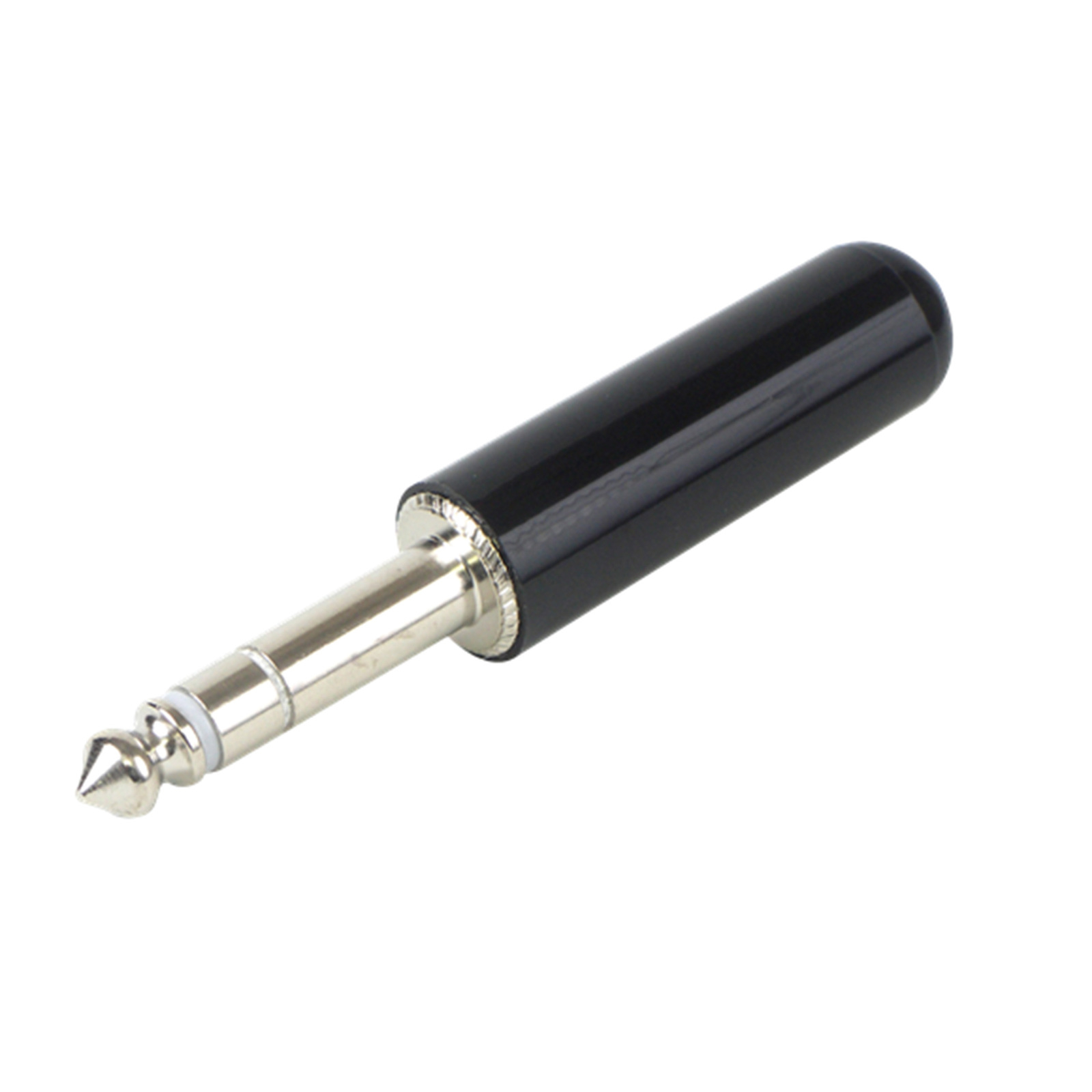

Switchcraft 1/4" 3 Conductor Stereo Headphone Plug (Dual GA Headsets)

Configuration

• Number of Conductors: 3
• Product Line: Littel Plugs
• Mounting Type: Cord
• Termination Style: Solder
• Contact Plating: Nickel
• Color: Black
• Sealed: Not Sealed
• Handle Material: Thermoplastic
• Packaging Type: Assembled
• Standard Connector Type: 1/4" Phone Jacks & Plugs
• Jack-Plug Type: Plug

Electrical

• Contact Resistance: 0.03 Ohms
• Dielectric Withstanding Voltage: 500 Volts
• Insulation Resistance: 10000 MOhms
• Current Rating: 1 Amps

Mechanical

• Life Cycle: 10000 Cycles
• Operating Force: 7 lbs

Environmental

• Shielding: Unshielded
• Maxiumum Temperature: 85 C

Compliance

• RoHS Compliant: Compliant
• REACH Compliant: Compliant
• Brand: Switchcraft

Dimensional

• Cable Opening: 0.296 in

Material

• Body Material: Copper Alloy
• Body Plating: Nickel
• Contact Plating Type: Nickel
• Terminal Material: Copper Alloy Tinnned
