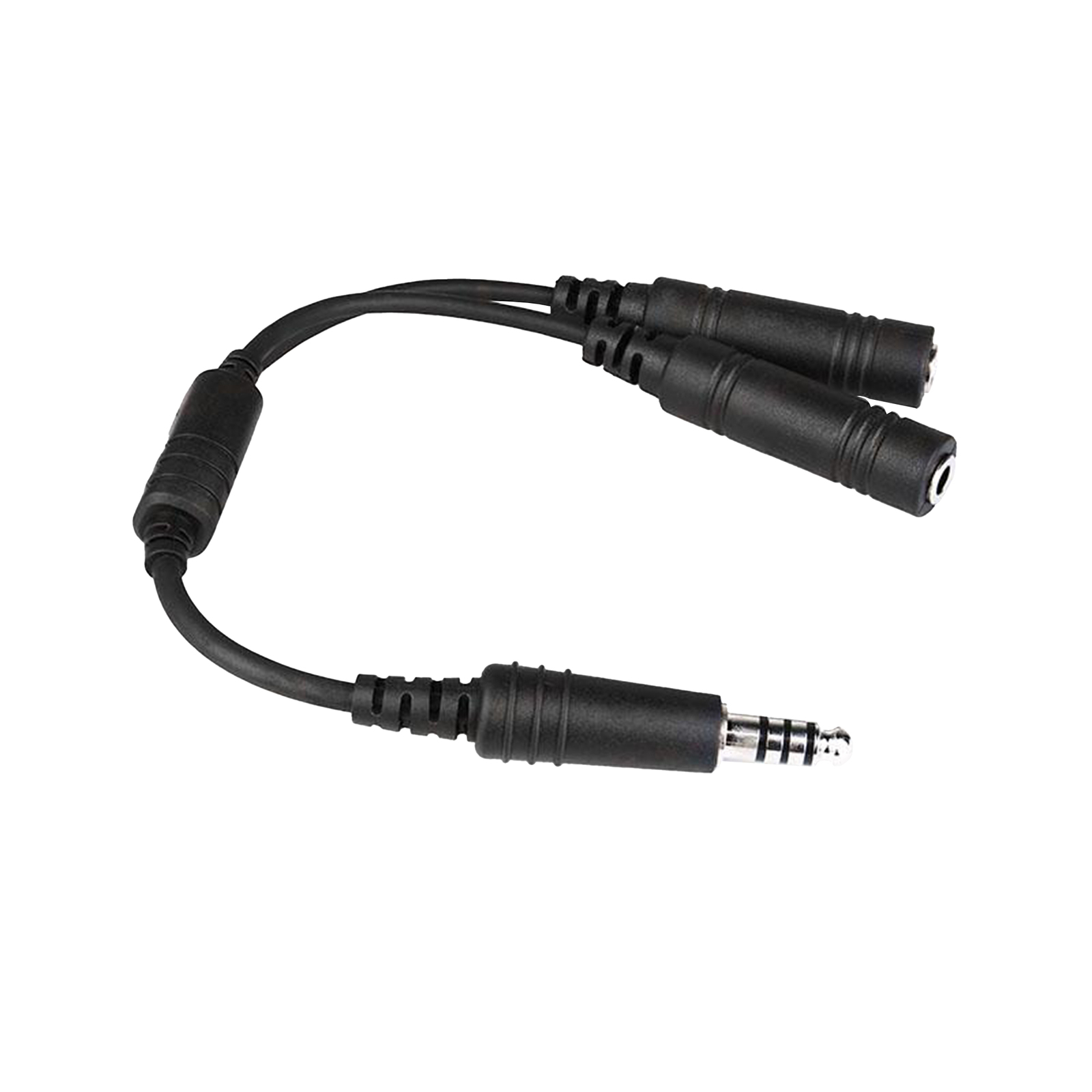

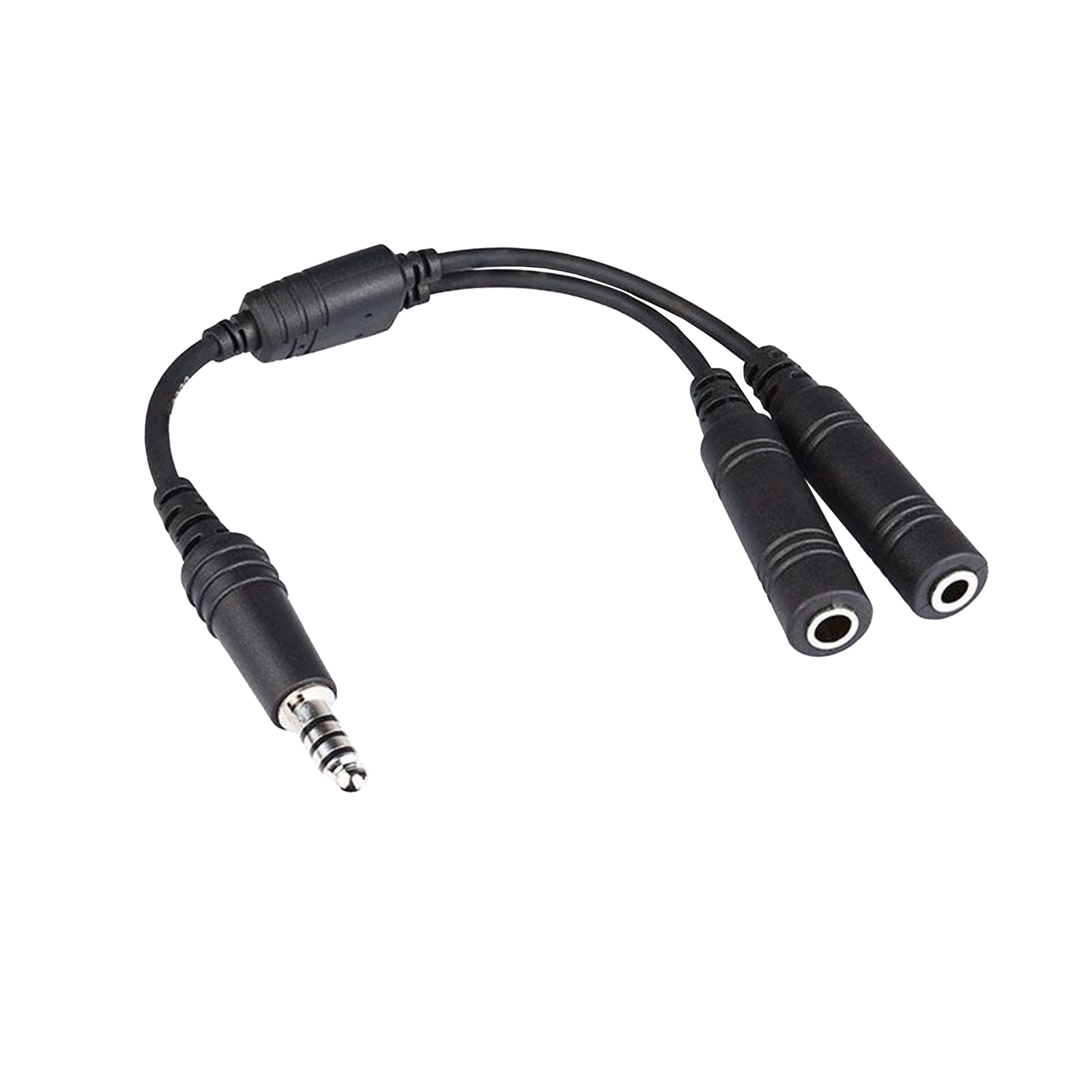

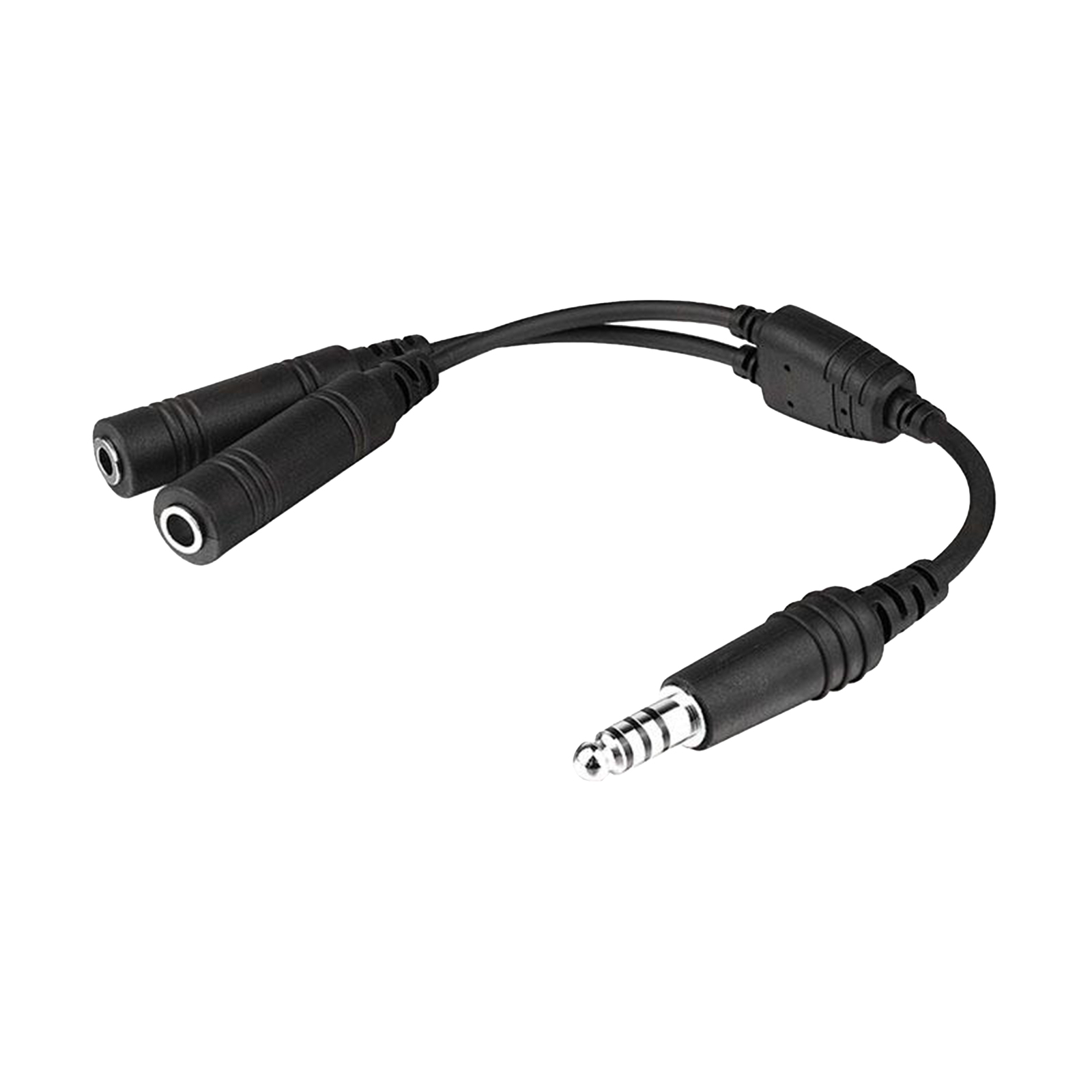

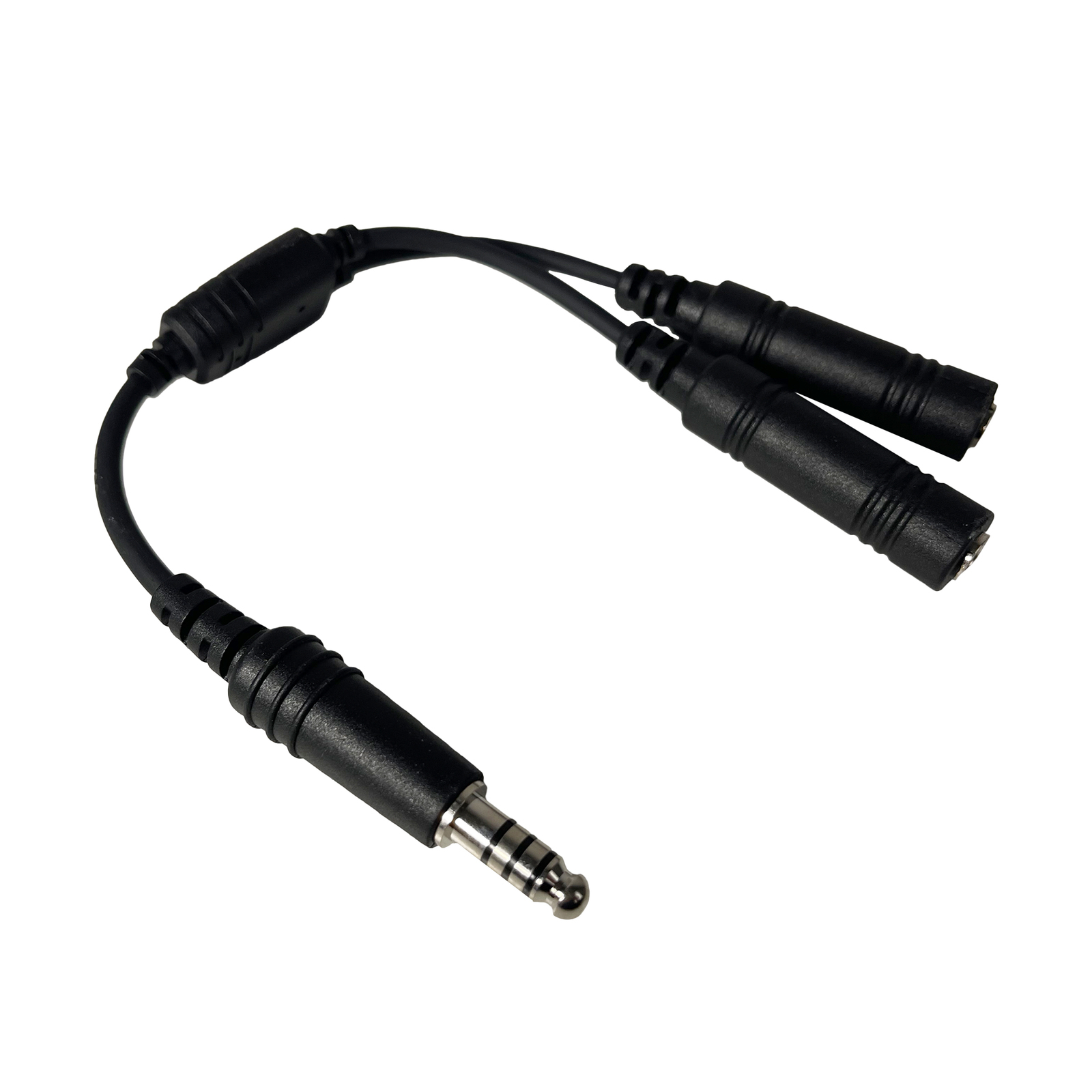

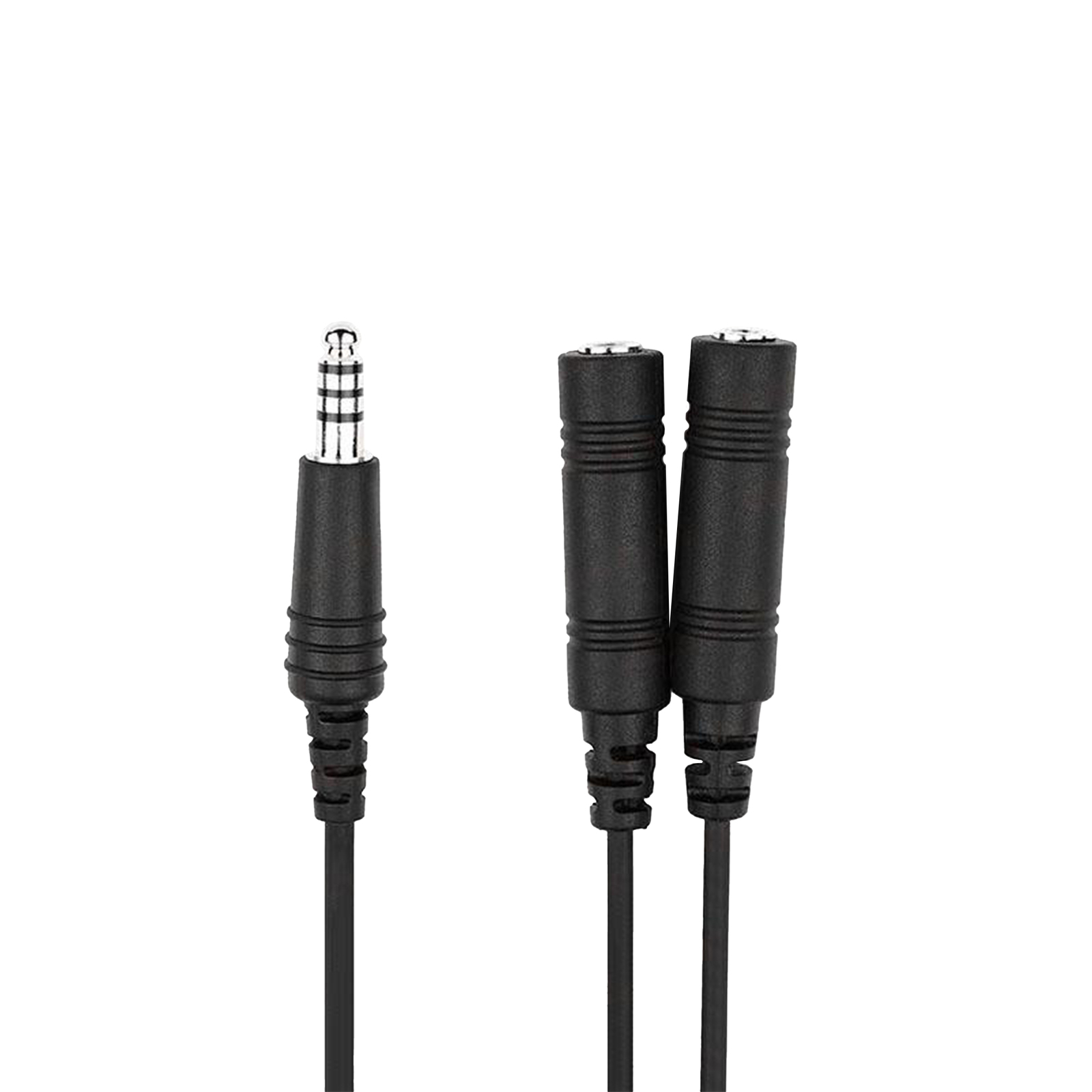

Stealth Headset Adapter - Dual GA Plugs to Single U-174 Helicopter Plug

Headset Adapter - Dual GA Plugs to Single U-174 Helicopter Plug

With this adapter you can convert your Dual GA plugs headset to helicopter plugs. (Convert general aviation plugs PJ-068 and PJ-055 or equivalent to U-174/U or equivalent helicopter plug)

Easy to use, no need to set up, plug and play. Adopts high quality material, study and durable. Portable and compact size, easy to carry anywhere and anytime.

PLUG INFORMATION

DUAL GA - DUAL MALE PLUGS FIXED WING

For most fixed wing (airplane) pilots, you're headset uses standard dual male plugs. These are known as the PJ-055 (.25 inch / 6.35mm) and PJ-068 (.206 inch / 5.25mm) plugs. The PJ-055 provides audio to the ear cups and the PJ-068 is for your microphone. These plugs will work in almost all civilian and commercial airplanes, even when other options might work as well. If you're in doubt, these are generally a safe bet. The PJ-055 is also known as the M642/4-1 and the PJ-068 is also known as the M642/5-1.

NATO/U174 - SINGLE MALE PLUG HELICOPTER
If you fly helicopters you'll most likely be looking for a headset with a single plug. It's slightly shorter and fatter than either of the fixed wing plugs. This single plug (7.1 mm / 0.281 inch diameter) provides both microphone and audio to the ear cups. It's generally known as a U-174/U plug or the U-93A/U plug (Nexus TP120).

(FAH-AD01)
