Snapvent CC3251 Ventilator

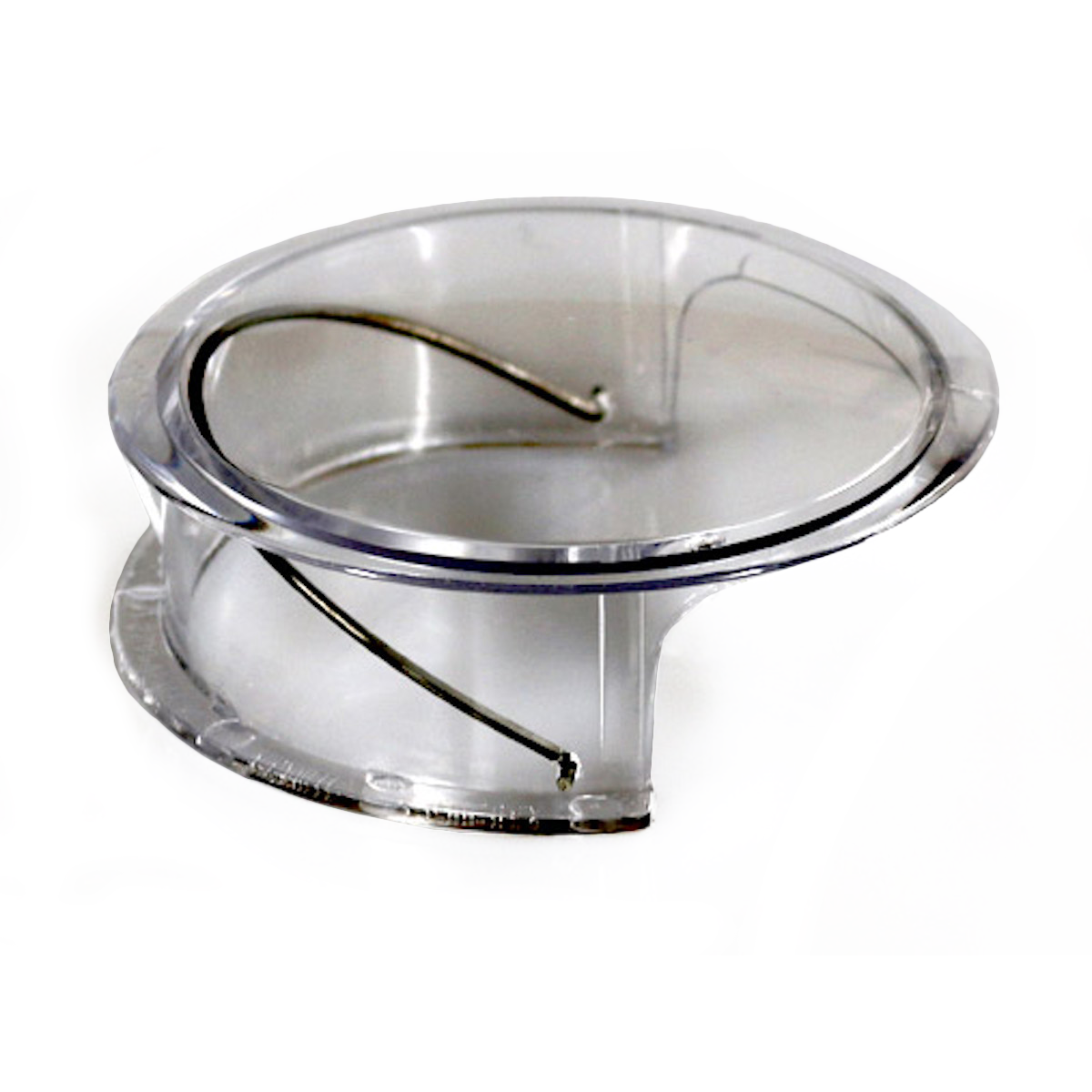

The CC3251 Snapvent is the most popular of the current vents available. It should be sufficient for most applications. The back wall of the ventilator creates an “air flow” turn of close to 90°. That makes this ventilator most useful installed next to, and slightly in front of, the area to be cooled. The wire inside the ventilator is a “tension wire”. It’s purpose is to help the part maintain tension against the window where it is installed. No user adjustments are required. It is not a handle for the part.

ABOUT SNAPVENT

Snapvent Ventilators have been utilized for years in many different types of vehicles, from boats, to race cars, to light aircraft, as well as helicopters and home-built vehicles, and for use in motorcycle fairings. They provide a controlled source of air circulation in any moving vehicle. You can install a set of ventilators on each side of a vehicle ( one or more ventilators per side ). Turn the ventilators on one side to the forward position, with the open end or scoop facing front-wards or intake position. Then rotate the ventilators on the other side to the rearward or exhaust position, with the scoop facing the opposite direction. This will create a cross draft through the cabin of the vehicle supplying much needed cooler air for the occupants. All ventilators requiring a 3 3/16″ or larger hole are injection molded using a proprietary material to give long life and great strength for the part. You can not break one by hand, so do not be afraid to apply pressure to the part when installing it in your vehicle. The smaller A-2-100 part can be damaged and requires more care in handling and installation.

INSTALLATION

First determine exactly where you wish to have your ventilators placed in your vehicle and mark the locations accordingly.
Next, it is of paramount importance, that you first drill a test hole in a different piece of material that matches where your ventilators will be installed. Check your hole diameter as it must be exactly 3 1/4″ for the ventilator to function properly. The diameter of the hole is what secures the ventilator in position. If your hole is too large the ventilator will “loosely rotate” in the hole and not function correctly. It is better for the hole to be slightly smaller than required, than it is for it to be larger.
Once you are satisfied with your test, drill or cut your holes in the places you have previously marked.
Take your ventilator, and with the bottom open part facing away from you, squeeze the sides, and push the ventilator fully into the hole you cut. Don’t worry, you cannot squeeze hard enough by hand to damage the part.
Push the ventilator firmly in place all the way into the opening until the top part is flush with the window surface. This is the fully closed position.

From inside the vehicle you may now “open” the ventilator by pressing on the leading edge slightly and this will cause the scoop to open. You may also handle the sides and rotate the part where the scoop is either facing forwards to scoop air, or facing rearwards to exhaust air.

SUGGESTED CUTTING METHODS

It is preferable that the temperature be at least 70 degrees Fahrenheit when making the installation in any type of acrylic. Acrylic’s become brittle as the temperatures decline. Never try to cut a hole in a cold piece of acrylic.

The hole can be made with a 3 ¼” metal cutting hole saw having 6 teeth per inch, or finer. Use at a slow speed of 300 – 400 RPM. Cut half of the way through from one side, then cut the rest of the way through from the other side. Use a file, abrasive paper, or a scraper to remove the sharp edges from the hole. This is NOT a FAA-PMA approved part, and is NOT intended for use at speeds above 120 knots.

The above guidelines are only suggestions, and each installation is different. It is up to the installer to make the appropriate judgements on their particular application and act accordingly. Snapvent Plastics is not responsible for incorrectly drilled or placed holes, or for the suitability of our product to your application.

(CC3251)
