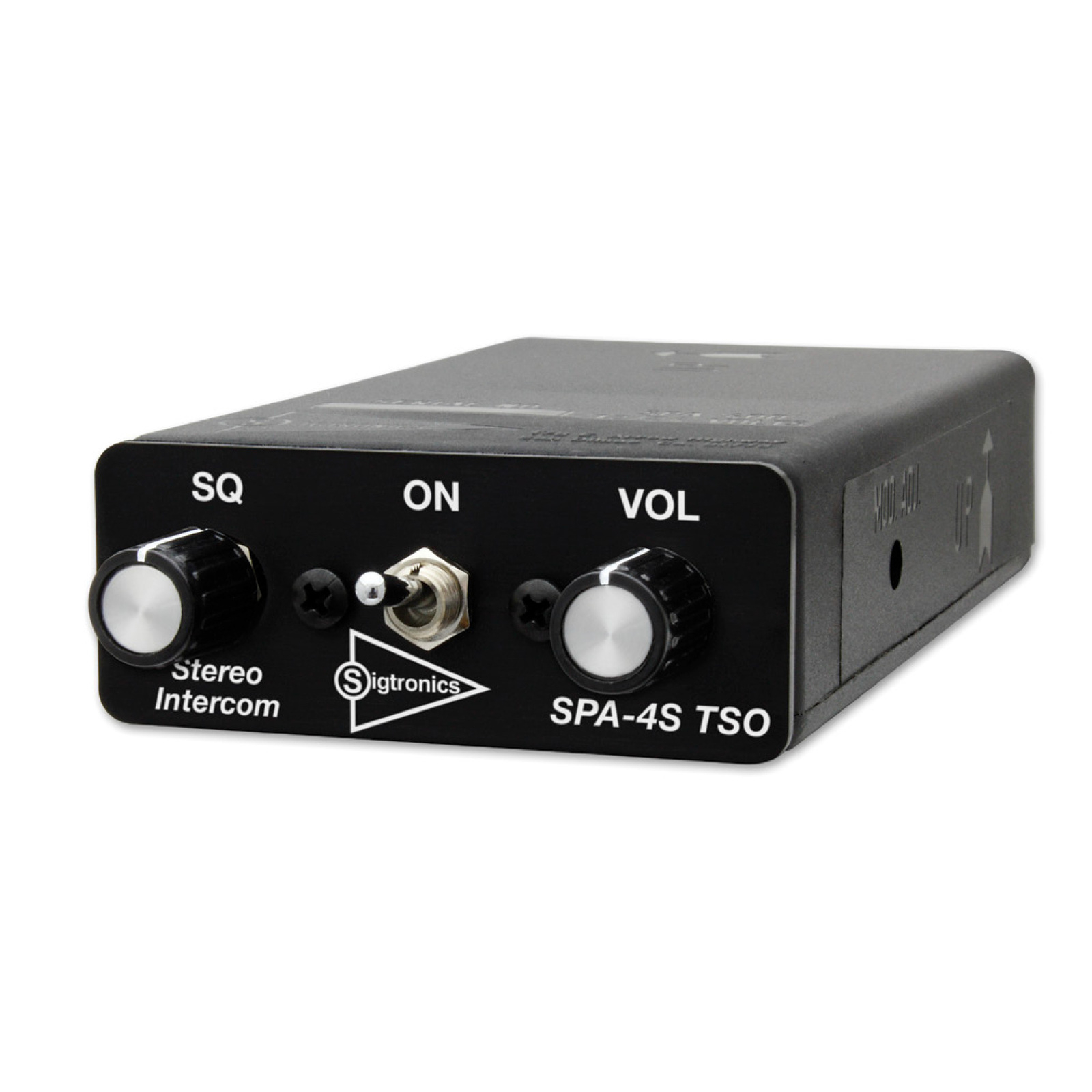

Sigtronics SPA-4S 4 Place Stereo Panel Mount Intercom
SPA-4S Two or Four Place Stereo Intercoms
- FAA TSO approved.
- Pilot fail safe feature allows pilot to always hear radios.
- Use Satellite Radio, MP3 or CD players as audio source.
- Reversible face plate included for vertical or horizontal mounting.
- Radio priority assures that ATC hears only the crew member transmitting.
- Installation hardware included, including jack kit and pre-wired harness.
- WARRANTY: Five years parts and labor.
Compact Stereo System
The SPA-4S is a 2 or 4 place voice activated intercom with inputs for stereo music. It is a compact system that allows it to fit in space critical panels. The SPA-4S uses the industry standard Sigtronics squelch, fast on slow off for hands free communication. The music will full mute during ATC communication and partial mute during intercom communication. When radio / intercom use is ended the music will gradually return to its previous volume.
The SPA-4S is a 2 or 4 place voice activated intercom with inputs for stereo music. It is a compact system that allows it to fit in space critical panels. The SPA-4S uses the industry standard Sigtronics squelch, fast on slow off for hands free communication. The music will full mute during ATC communication and partial mute during intercom communication. When radio / intercom use is ended the music will gradually return to its previous volume.
Easy Upgrade
Each intercom comes complete with all necessary mounting hardware, jacks, and two 4-foot pre-wired harnesses. The SPA-4S only requires 1" X 2.5" of panel space, mounts horizontal or vertically, is 4" deep, and weights 5.5 oz. The SPA-4S intercom can easily upgrade the SPA-400. The SPA-4S uses the same panel hole pattern and interface cable as the SPA-400. A second cable is provided for the music inputs and headphone outputs.
Each intercom comes complete with all necessary mounting hardware, jacks, and two 4-foot pre-wired harnesses. The SPA-4S only requires 1" X 2.5" of panel space, mounts horizontal or vertically, is 4" deep, and weights 5.5 oz. The SPA-4S intercom can easily upgrade the SPA-400. The SPA-4S uses the same panel hole pattern and interface cable as the SPA-400. A second cable is provided for the music inputs and headphone outputs.
High Noise Environment N Series
The FAA TSO approved SPA-4SN is available for the high noise amateur built aircraft and helicopters. As with all of Sigtronics' products, the SPA-4S / SPA-4SN are RFI and EMI immune. The SPA-4S intercom is constructed of high quality components and carries a five-year parts and labor warranty. The SPA-4S will operate on an input power of 11 VDC through 32 VDC. Maximum current drain 0.10 Amps.
The FAA TSO approved SPA-4SN is available for the high noise amateur built aircraft and helicopters. As with all of Sigtronics' products, the SPA-4S / SPA-4SN are RFI and EMI immune. The SPA-4S intercom is constructed of high quality components and carries a five-year parts and labor warranty. The SPA-4S will operate on an input power of 11 VDC through 32 VDC. Maximum current drain 0.10 Amps.
Features
|
SPA-4S
|
SPA-4SN
|
Headset Positions:
|
4
|
4
|
High Noise:
|
No
|
Yes
|
Size:
|
4" x 2.5" x 1" / 102mm x 63.5mm x 25.4mm
|
4" x 2.5" x 1" / 102mm x 63.5mm x 25.4mm
|
Weight Unit:
|
5.5 oz. / 155g
|
5.5 oz. / 155g |
Weight Jacks/Harness:
|
7.0 oz. / 198g
|
7.0 oz. / 198g
|
Warranty:
|
5 Years
|
5 Years
|

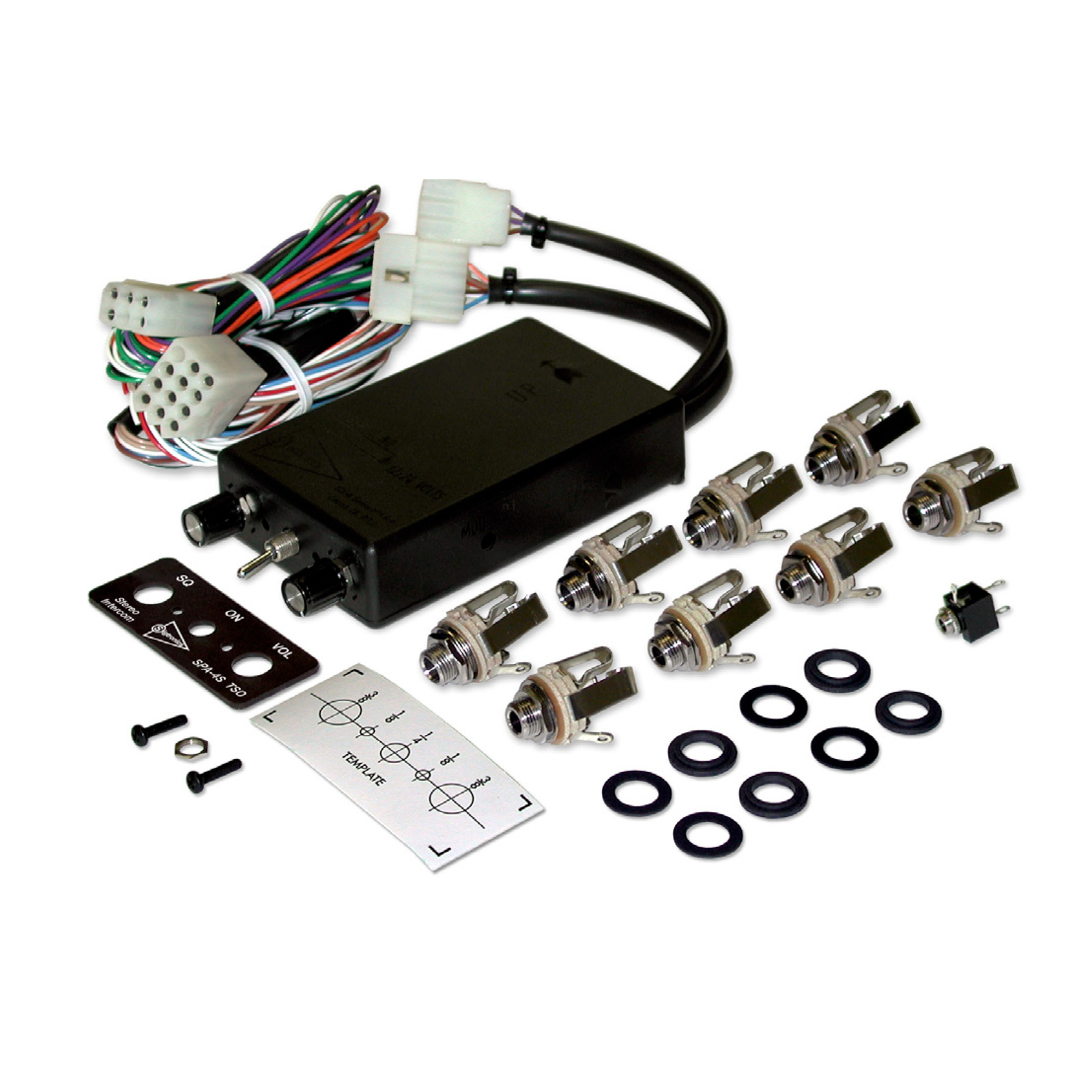

In the Box
Intercom unit
Intercom Panel - lettered on both sides.
Aircraft / Intercom Interface Cable (4 feet long)
Panel Mount GA Headphone / Mic Jacks
Drill Template
Mounting Screws
Intercom unit
Intercom Panel - lettered on both sides.
Aircraft / Intercom Interface Cable (4 feet long)
Panel Mount GA Headphone / Mic Jacks
Drill Template
Mounting Screws
(SPA-4S)
SKU | SPA-4S |
Brand | Sigtronics |
Shipping Weight | 0.6000kg |
Unit Of Measure | ea |
