RAM® Twist-Lock™ Suction Cup Double Ball Mount

RAM® Twist-Lock™ Suction Cup Double Ball Mount

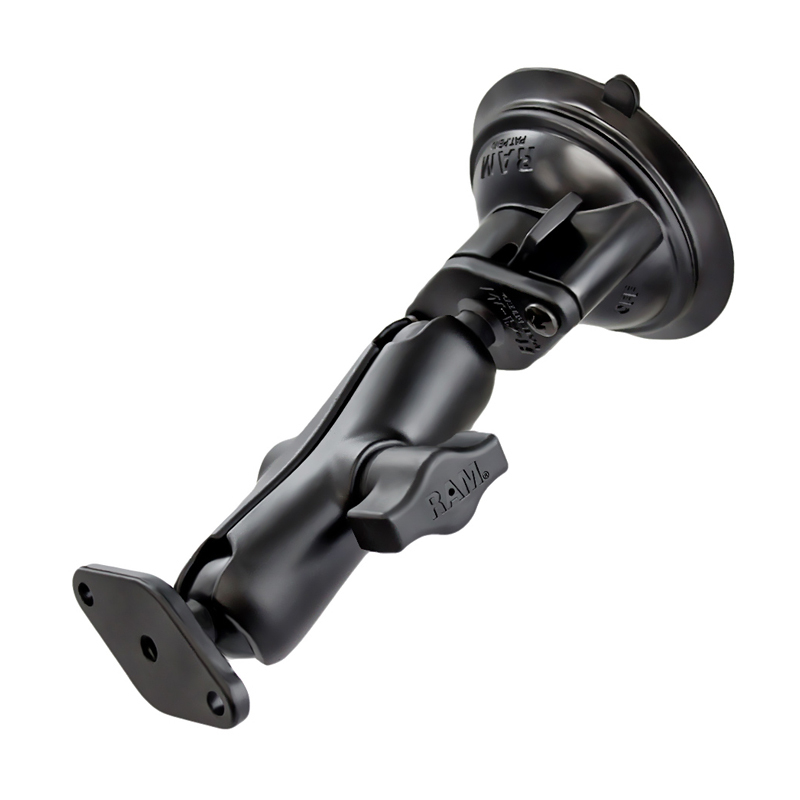

The RAM-B-166U consists of a 3.3" diameter suction cup twist lock base, medium length double socket arm and diamond base adapter. The suction cup base is designed to have a strong hold on glass and non-porous plastic surfaces, including RAM adhesive disks.

The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The hole pattern found on the diamond base adapter will connect to most RAM cradles.

Simply choose and add a Ram cradle for your device for a complete mounting solution.

KEY FEATURES

RAM® Twist-Lock™ suction cup base is ideal for vehicle windshields and other nonporous surfaces
Includes B size medium length RAM® double socket arm and diamond bases with B size 1" rubber balls; ball and socket technology allows for near-infinite adjustability
Made of powder-coated, marine-grade aluminum and high-strength composite for durability and reliability in the most demanding environments

SPECIFICATIONS

HARDWARE INCLUDED:	Assembly Hardware
PRODUCT DIMENSIONS:	Overall Height: 6.69"
SUCTION SIZE:	3.3" Diameter
SOCKET-TO-SOCKET LENGTH:	3"
HOLE PATTERN:	2-Hole AMPS: 1.912"
PLATE SIZE:	2.43" x 1.31"
BALL SIZE:	B Size (1")
WEIGHT CAPACITY:	Standard Use: 907g Heavy-Duty Use: 453g
MATERIALS:	Marine-grade aluminum High Strength Composite
PACKAGING TYPE:	Poly Bag
WEIGHT:	272g
