RAM® Tough-Charge™ with X-Grip® Tech Waterproof Wireless Charging Holder

RAM® Tough-Charge™ with X-Grip® Tech Waterproof Wireless Charging Holder

The RAM® Tough-Charge™ with X-Grip® Technology is the world's first patented, universal waterproof wireless charging cradle for phones.

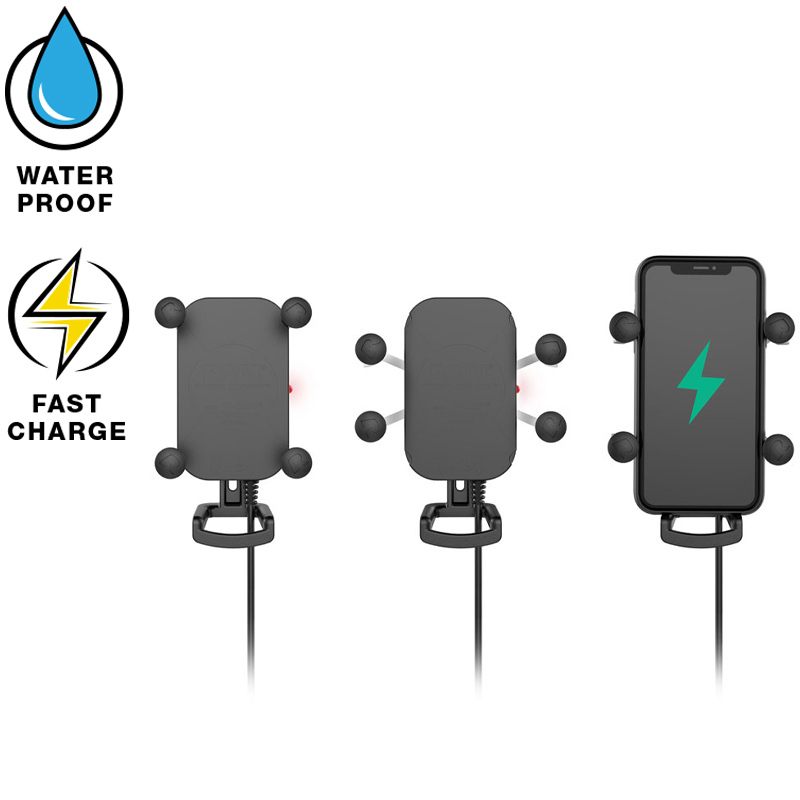

Designed with spring-loaded RAM® X-Grip® Technology, this cradle features an 'X' design that expands and contracts to secure nearly any phone while taking advantage of Qi wireless phone charging. All four arms feature rubber-coated caps that hold your phone firmly in place, and the open design keeps buttons and switches accessible on the sides of phones.

To insert your device, simply squeeze the arms on one side of the cradle and place your phone inside before releasing the arms. This Qi wireless charging cradle ensures your compatible phone charges no matter what position it’s placed at. For added security and peace of mind, a device tether is included that’s recommended for outdoor applications. In addition, a support leg can be adjusted to the ideal position or removed altogether.

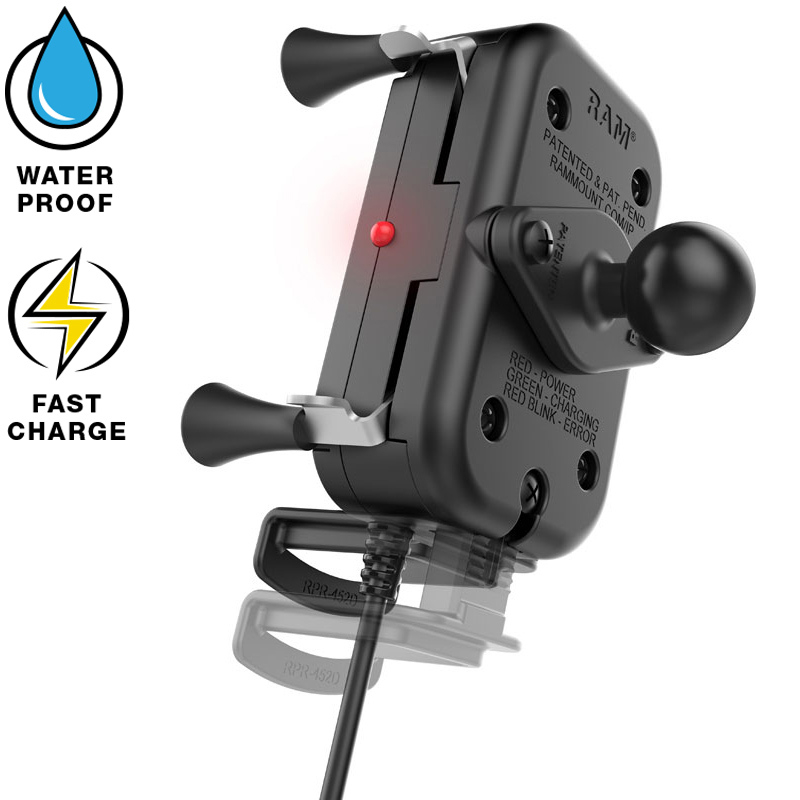

This RAM® Tough-Charge™ with X-Grip® Technology wireless charging kit for vehicles includes a B size diamond base featuring a 1” rubber ball – perfect for attaching to your choice of B size RAM® double socket arm.

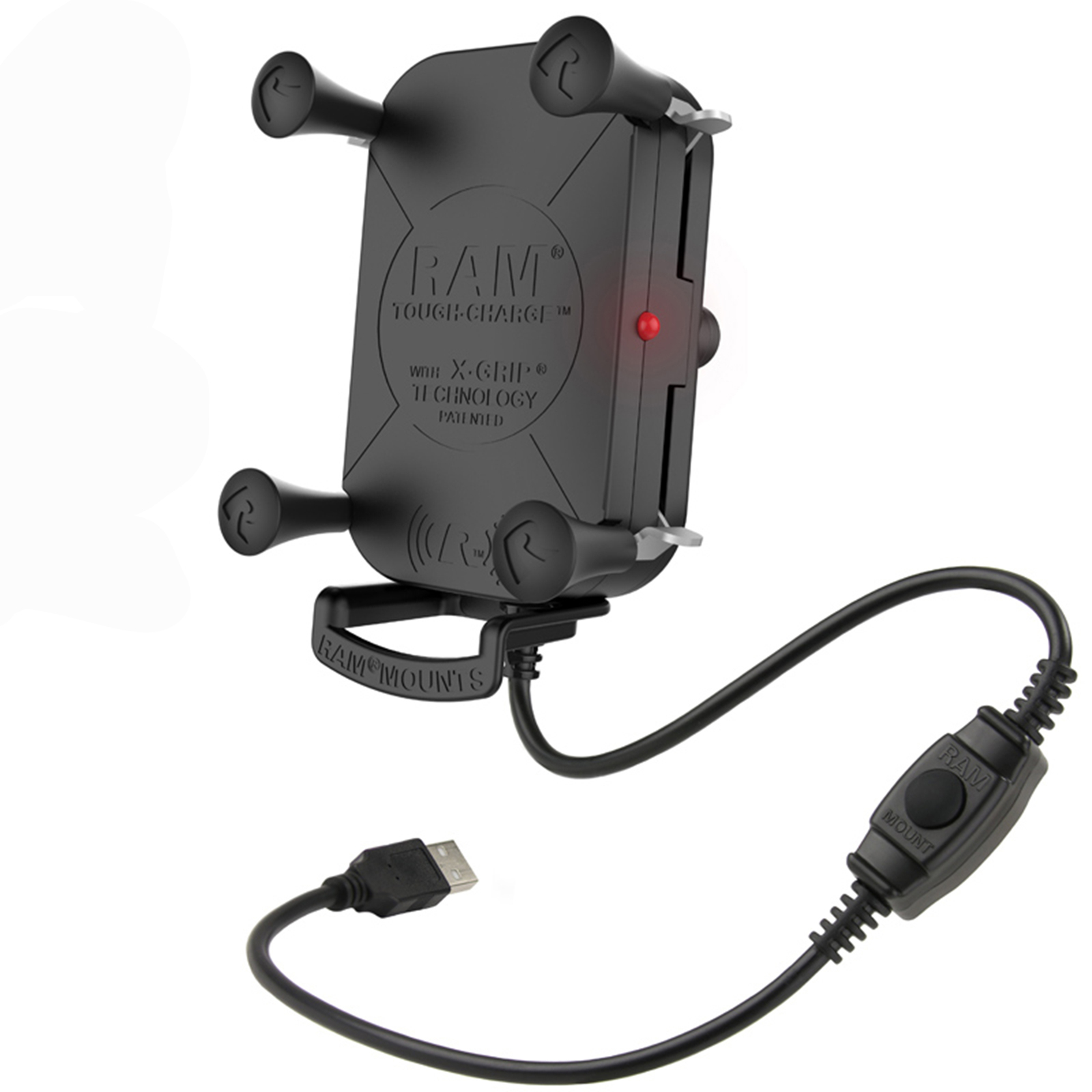

The connected Type-A male pigtail connector features an in-line switch that allows you to turn off the wireless charging module when not in use. For in-vehicle charging, attach the pigtail to the included 1.2m Type-A male to Type-A female extension cable.

FEATURES

Waterproof Qi wireless phone charging cradle features spring-loaded RAM® X-Grip® technology and 10W maximum output
RAM® Mounts Compatible™ with B size double socket arms and ball bases for mounting in your preferred location
Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
RAM® Mounts backed by lifetime warranty, RAM® electronics backed by 1-year warranty with proof of purchase required

Size of case may affect compatibility. Not compatible with phone cases containing metal. This holder will not charge phones that do not have built-in wireless charging capabilities, such as the Apple iPhone 7 or Samsung Galaxy S5.

HOLDER DIMENSIONS

Width Range: 60mm - 82mm
Depth Range: 22mm max

SPECIFICATIONS

Materials: High strength composite | Stainless steel
Product Weight: 544g
Weight Capacity: 910g
Ball Socket Size: B Size (1")
Warranty: RAM® electronics 1 year
Certifications: FCC, IC, CE, e-Mark, WEEE, RCM, and RoHS Compliant

POWER SPECIFICATIONS

Input Power: 5V-2A; 9V-1.67A
Output: 5W / 7.5W / 10W
Conversion Efficiency: 85% Max
Maximum Protective Phone Case Thickness: 6mm (for charging)
Working Frequency: 110-205KHZ
Product Standard: WPC v.1.2.4
QI Compatible
Compatible with QC2.0/QC3.0 power supplies

HARDWARE INCLUDED

1x Safety Tether
1x Glue Tube for Rubber Caps
1x Cradle Leg
1x Cradle Leg Cover
1x Silicon sleeve for USB waterproof connection
1x 1.2 Meter USB Extension Cable
4x Small zip ties
2x Large zip ties

COMPATIBLE DEVICES

Apple	Blackberry	Google	Huawei	LG	Nokia	Razer	Samsung	Sony
iPhone 11 iPhone 11 Pro iPhone 11 Pro Max iPhone 8 iPhone 8 Plus iPhone SE iPhone X iPhone Xr iPhone Xs iPhone Xs Max	Evolve X	Pixel 3 Pixel 3 XL Pixel 4 Pixel 4 XL	Mate 20 Pro P30 Pro	G6 G6+ G7 ThinQ G8 ThinQ G8S ThinQ V30 V35 ThinQ V40 ThinQ V50 ThinQ	8 Sirocco 9 PureView	Phone 2	Galaxy Note 10 Galaxy Note 10 Plus Galaxy Note 5 Galaxy Note 8 Galaxy Note 9 Galaxy S10 Galaxy S10 5G Galaxy S10+ Galaxy S20 Galaxy S20+ Galaxy S20 Ultra 5G Galaxy S6 Galaxy S6 Edge+ Galaxy S7 Active Galaxy S7 Edge Galaxy S8 Galaxy S8+ Galaxy S9 Galaxy S9+	Xperia XZ2 Xperia XZ3 Xiaomi Mi 9 Mi 9 Explorer Mi Mix 2S Mi Mix 3
