RAM® Tab-Tite™ Holder for 10”-11” Rugged Tablets

RAM® Tab-Tite™ Holder for 10”-11” Rugged Tablets

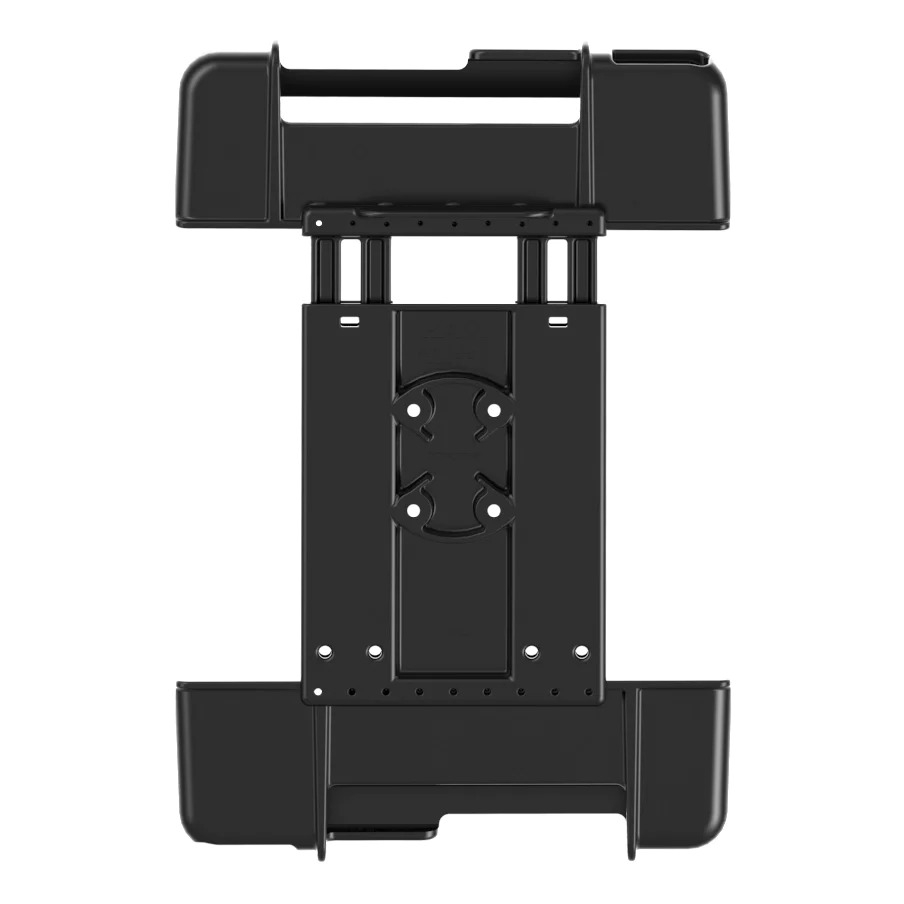

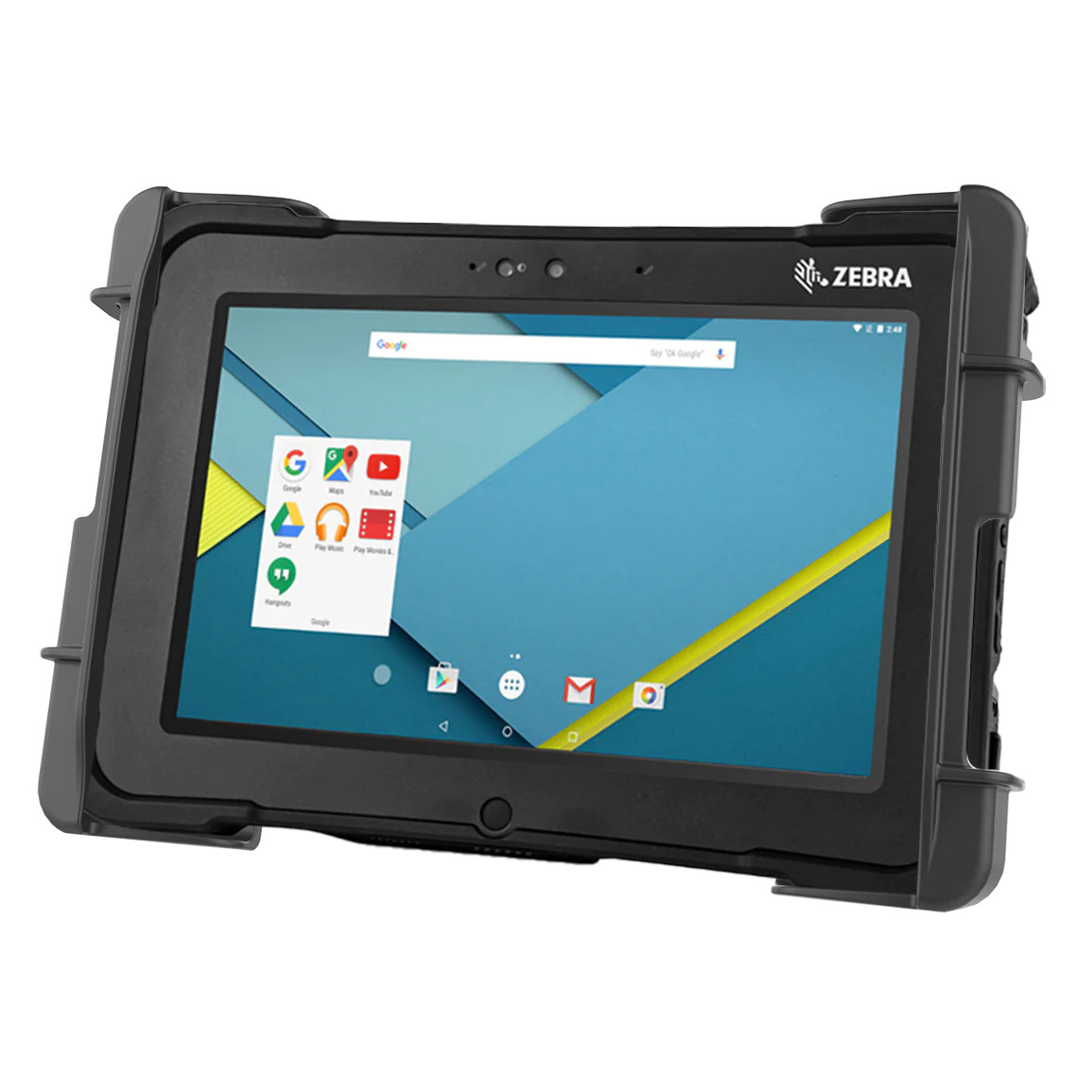

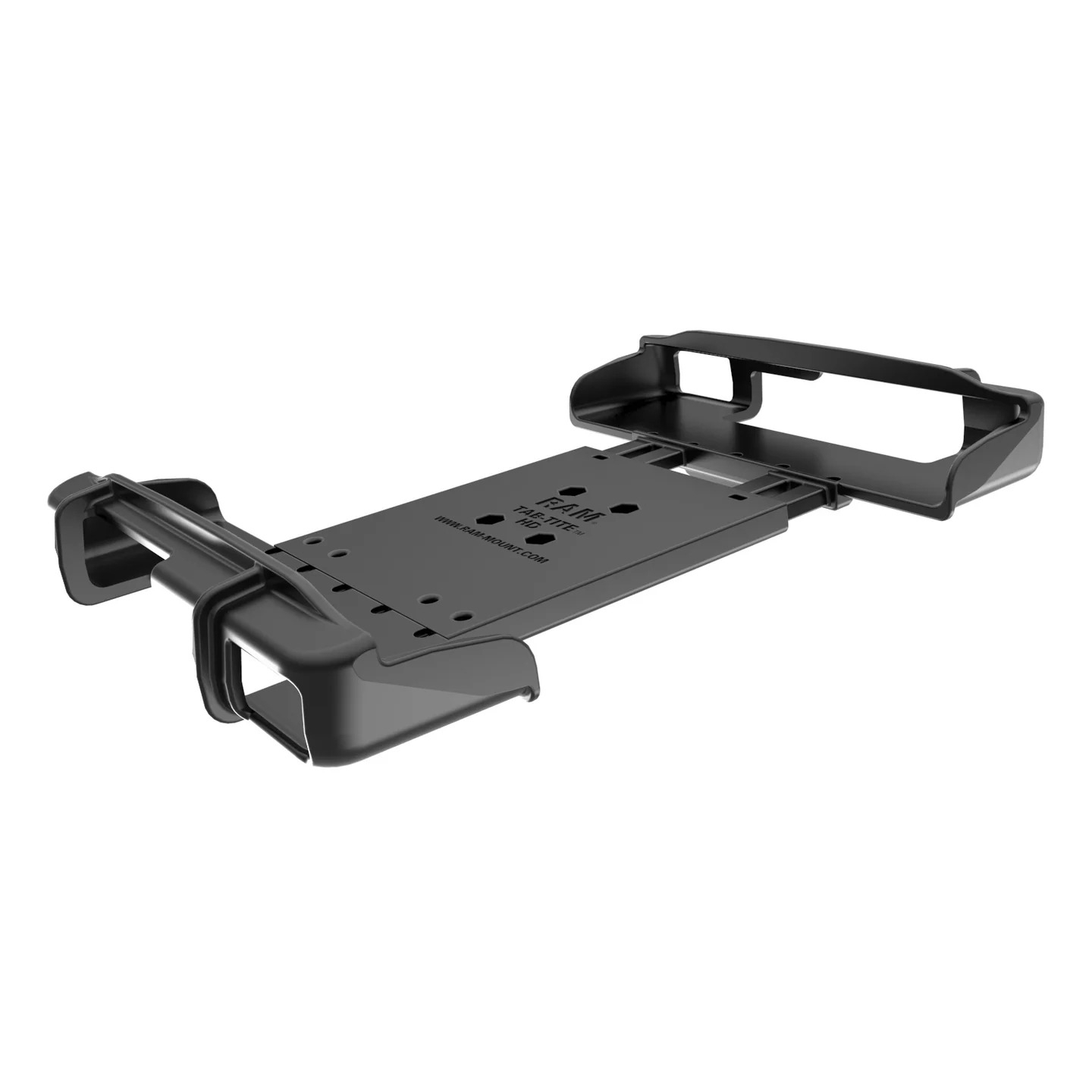

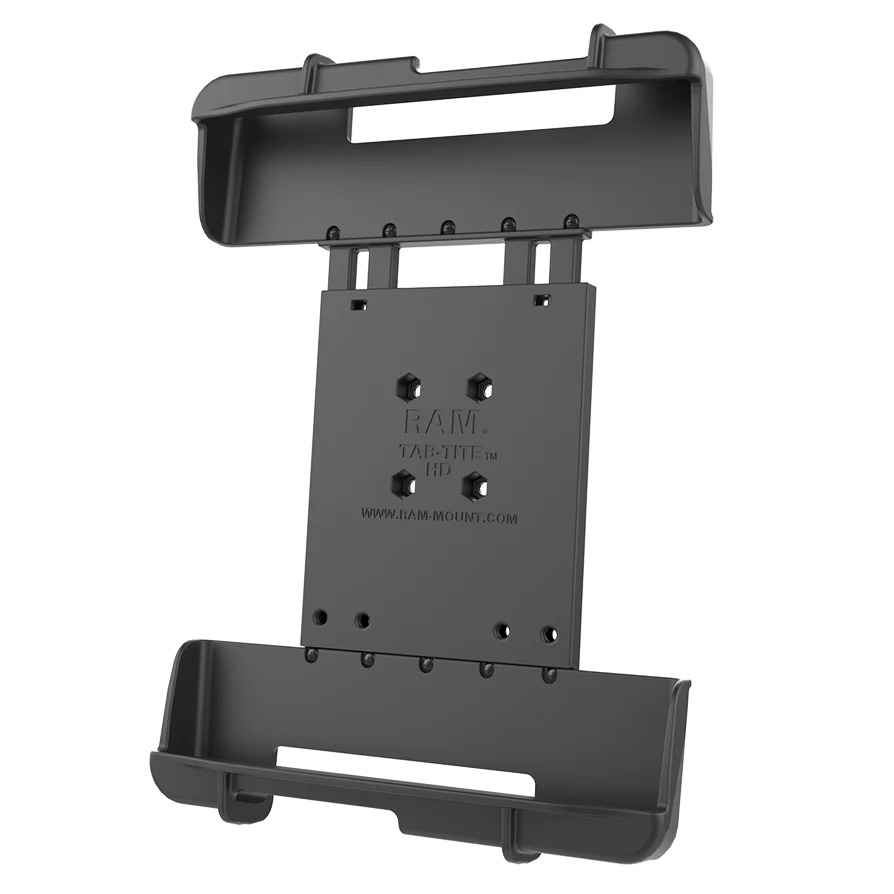

The RAM-HOL-TAB19U consists of a spring loaded back plate and custom support cups for the Panasonic Toughpad FZ-G1. The spring loaded design makes it easy to load and unload your tablet, along with keeping it secure while on the go. Interchangeable cup ends are designed to optimize the functionality of your tablet, allowing access to audio jacks, usb, power, and other ports, your tablet can be used just as it was intended. Perfect for stationary or on the go applications, the RAM-HOL-TAB19U is just what you need to get the most out of your tablet. Included is a set of four nuts and bolts to connect the cradle to any RAM components or mounts that contain the universal AMPs hole pattern. For off-road environments and extreme use, we recommended the use of a tether to assist in retaining your device. The Tab-Tite™ cradle is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size.

KEY FEATURES

Spring-loaded holder secures large rugged tablets; interchangeable end cups allow you to modify the holder when upgrading devices
Compatible with B and C size RAM® round ball bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
Made of high-strength composites for durability and reliability in the most demanding environments
Backed by a lifetime warranty

SPECIFICATIONS

HARDWARE INCLUDED
Assembly Hardware
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 x 1/2" Machine Screws
(4) #8-32 Nylock Nuts

HOLDER DIMENSIONS
Height Range: 10.75" - 13.375"
Width Range: 6.5" - 7.75"
Depth Range: .13" - .93"

HOLE PATTERN: 4-Hole AMPS: 1.181" x 1.496"

MATERIALS: High strength composite

WEIGHT: 326g / 0.72 lb

ADDITIONAL INFORMATION
If your tablet has a handstrap integrated in the back, a set of risers (RAM-HOL-TAB-RISER1U or RAM-HOL-TAB-RISER2U) may be required to offset the cups to accomodate the added thickness. This holder will not support the Panasonic Toughpad FZ-G1 with an extended battery pack.

(RAM-HOL-TAB19U)
