RAM® Quick-Grip™ XL Large Phone Holder without Ball

RAM® Quick-Grip™ XL Large Phone Holder

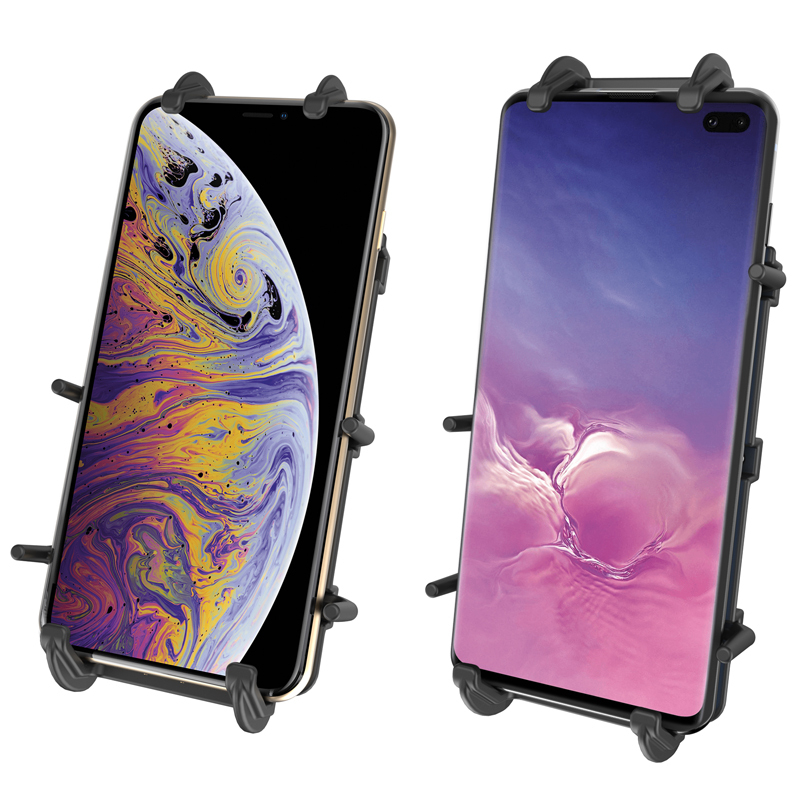

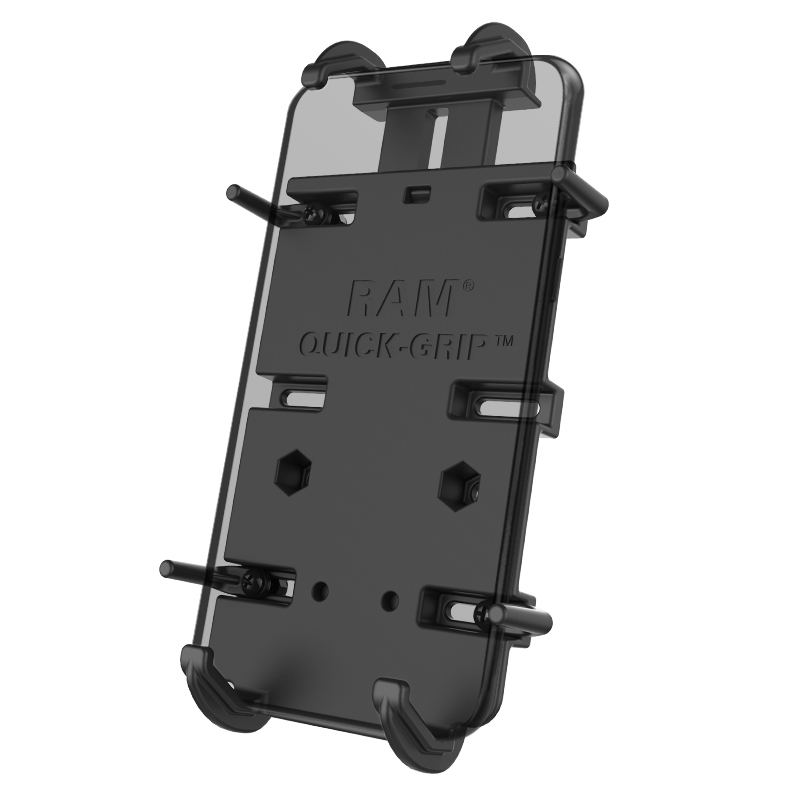

This version of the spring-loaded RAM® Quick-Grip™ holder provides a secure fit for a variety of large phones and other devices. The adjustable side keepers ensure that devices like GPS units and Bluetooth speakers within the listed compatible dimensions will also fit in the holder.

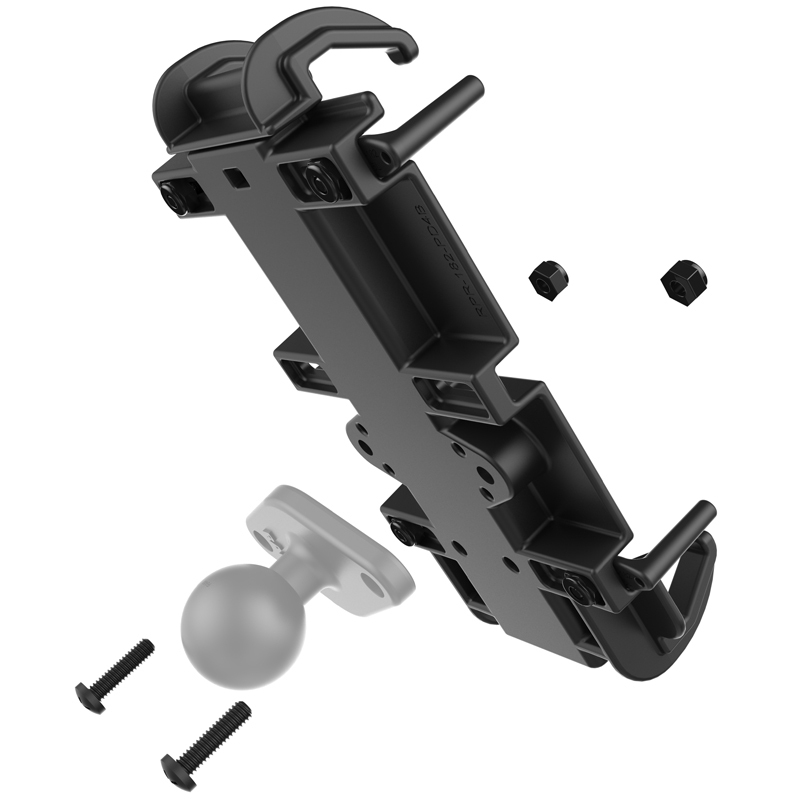

Included is a set of two nuts and bolts to attach the cradle to any RAM® components that contain the universal AMPS hole pattern, including RAM® diamond ball bases.

FEATURES

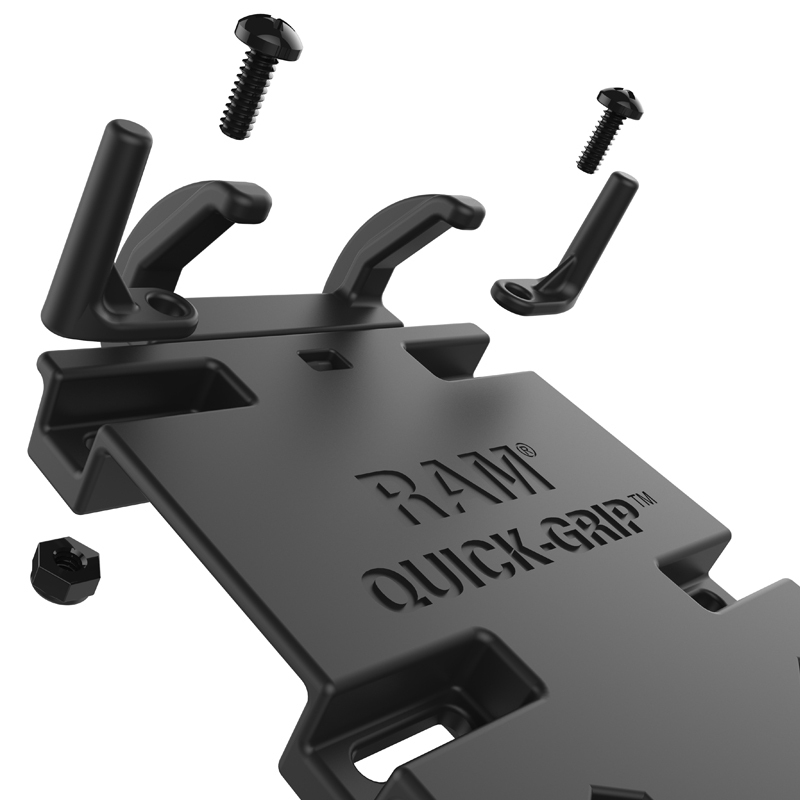

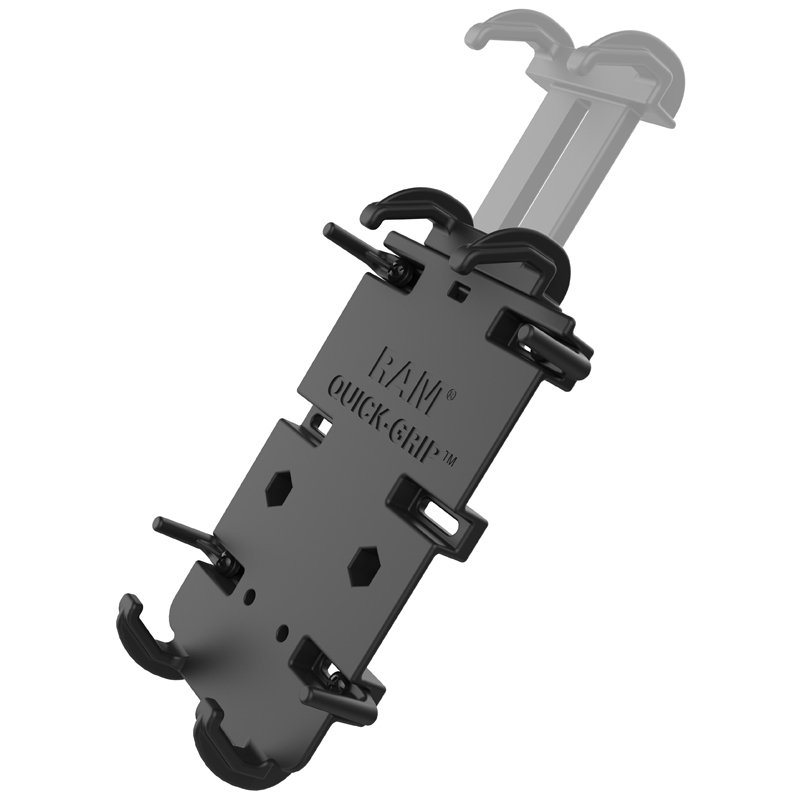

Spring-loaded holder features adjustable side supports that provide a secure fit for a variety of large phones and other devices
Easily insert and remove your phone with one hand
Compatible with RAM® diamond ball bases for attaching to double socket arms and mounting bases

SPECIFICATIONS

HARDWARE INCLUDED
Assembly Hardware
(2) #8-32 x 1/2" Machine Screws
(2) #8-32 x 5/8" Machine Screws
(2) #8-32 x 3/4" Machine Screws
(2) #8-32 Nylock Nuts

HOLDER DIMENSIONS
Height Range: 5.75" - 7.25" (14.6cm - 18.41cm)

Width Range: 2.625" - 3.625" (6.67cm - 9.21cm)
Max Depth: 1.83cm

HOLE PATTERN
2-Hole AMPS: 1.912"

MATERIALS
High strength composite

PACKAGING TYPE
Poly Bag

WEIGHT
159g

COMPATIBLE DEVICES

Apple
iPhone 6s Plus
iPhone 7 Plus
iPhone 8 Plus
iPhone Xr
iPhone Xs Max
iPhone 11
iPhone 11 Pro Max

Blackberry
DTEK 50
DTEK 60
Evolve X
KEYone

Google
Pixel XL
Pixel 2 XL
Pixel 3 XL
Pixel 3a
Pixel 3a XL
Pixel 4
Pixel 4 XL

HTC
Bolt
U Ultra
U11
U11 life

Huawei
Mate 20 Pro
Mate 20 X
P30 Pro

LG
Fiesta 2 LTE
Fiesta LTE
G5
G5 Silver
G6
G6+
G7 ThinQ
G8 ThinQ
G8S ThinQ
Grace LTE

Harmony
K20

K20 Plus
K20 V
Stylo 2 V
Stylo 3
Stylo 3 Plus Titan
Stylo 4
V20
V30
V35 ThinQ
V40 ThinQ
V50 ThinQ
X charge
X venture

Razer
Phone 2

Motorola
moto e4 plus
moto g4
moto g5s plus
moto g6
moto g7 power
moto X4
moto z2
moto z2 play
moto z3

Nokia
5
6
8
7 plus
9 PureView

OnePlus
6T
7
7T
7T Pro
7 Pro

Samsung
Galaxy A6
Galaxy A6+
Galaxy A7
Galaxy A7 (2016)

Galaxy A7 (2017)

Galaxy A7 (2018)

Samsung

Galaxy A8

Galaxy A8 (2016)
Galaxy A8 (2018)
Galaxy A8+
Galaxy A8+ (2018)
Galaxy A9 (2016)
Galaxy A9 (2018)
Galaxy A9 Pro (2016)
Galaxy A10
Galaxy A10e
Galaxy A10s
Galaxy A11
Galaxy A20
Galaxy A20e
Galaxy A30
Galaxy A50
Galaxy A50s
Galaxy 70
Galaxy A80
Galaxy A90 5G
Galaxy C7
Galaxy C7 Pro
Galaxy C9 Pro

Galaxy E7
Galaxy J5 (2017)
Galaxy J7

Galaxy J7 (2016)

Galaxy J7 (2017)
Galaxy J7 (2018)
Galaxy J7 Max

Galaxy J7 Perx

Samsung
Galaxy J7 Prime

Galaxy J7 Prime 2
Galaxy J7 V
Galaxy Note 5
Galaxy Note 8
Galaxy Note 9
Galaxy Note 10
Galaxy Note 10 Plus
Galaxy Note Fan Edition
Galaxy On NXT
Galaxy On7
Galaxy On7 Prime
Galaxy On8

Galaxy S10

Galaxy S10 5G
Galaxy S10+
Galaxy S20

Galaxy S20+
Galaxy S20 Ultra 5G
Galaxy S6 Active
Galaxy S6 Edge+
Galaxy S7 Active
Galaxy S7 Edge
Galaxy S8
Galaxy S8 Active
Galaxy S8+
Galaxy S9
Galaxy S9+
Galaxy XCover 4
Galaxy XCover 5

Sony
Xperia C4
Xperia L1
Xperia L2
Xperia XA Ultra
Xperia XA1 Plus
Xperia XA1 Ultra
Xperia XA2 Ultra
Xperia XZ Premium
Xperia XZ1

Xperia XZ2
Xperia XZ3

Xiaomi
Mi 9
Mi 9 Explorer
Mi Mix 2S
Mi Mix 3

ZTE
Axon 10 Pro
Axon 9 Pro

(RAM-HOL-PD4U)
