RAM® Quick-Grip™ 15W Waterproof Wireless Charging Holder

RAM® Quick-Grip™ 15W Waterproof Wireless Charging Holder

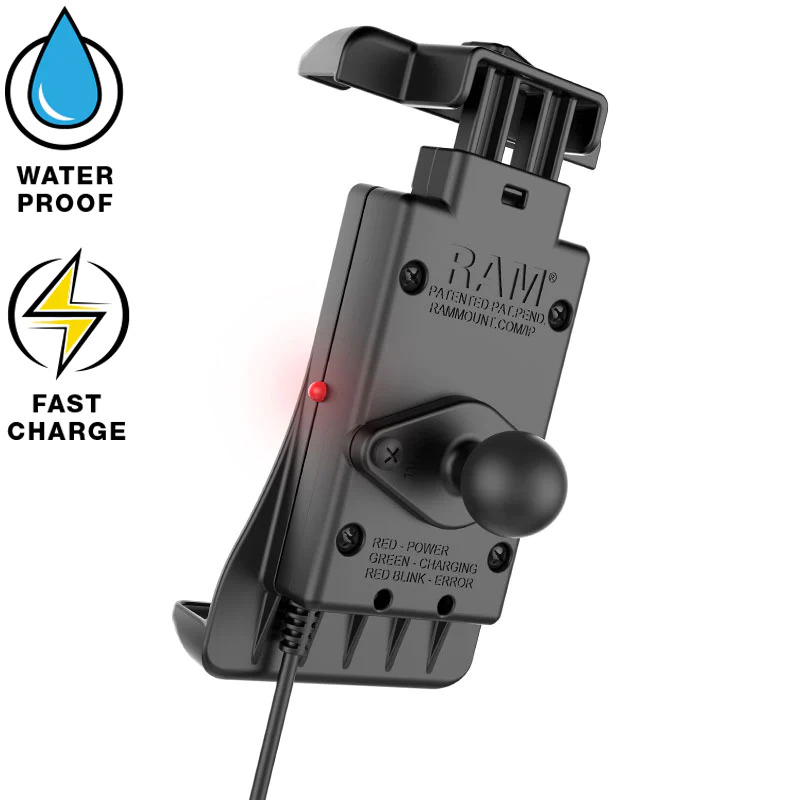

The RAM® Quick-Grip™ Wireless is a patented, universal water resistant wireless charging cradle for phones.

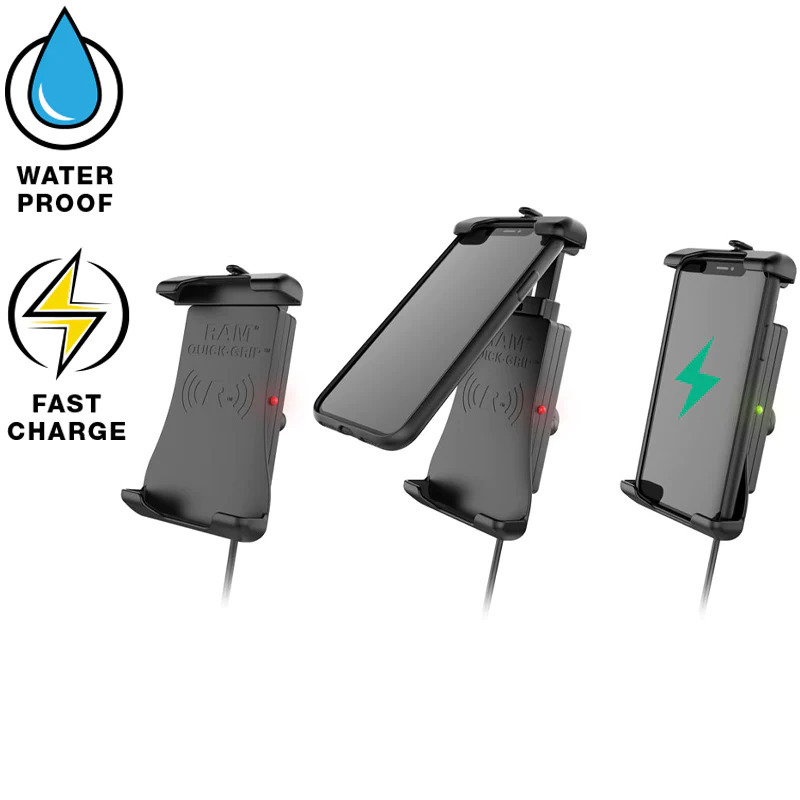

As part of the spring-loaded RAM® Quick-Grip™ family, this cradle allows for single-handed placement and removal of your phone while taking advantage of Qi wireless phone charging. Both the top and bottom cups feature rubber to help hold your phone firmly in place. To insert your device, use your phone to push the top cup upward and then gently place your device against the cradle for a secure fit. This Qi wireless charging cradle ensures your compatible phone charges as long as it’s within the listed compatible dimensions.

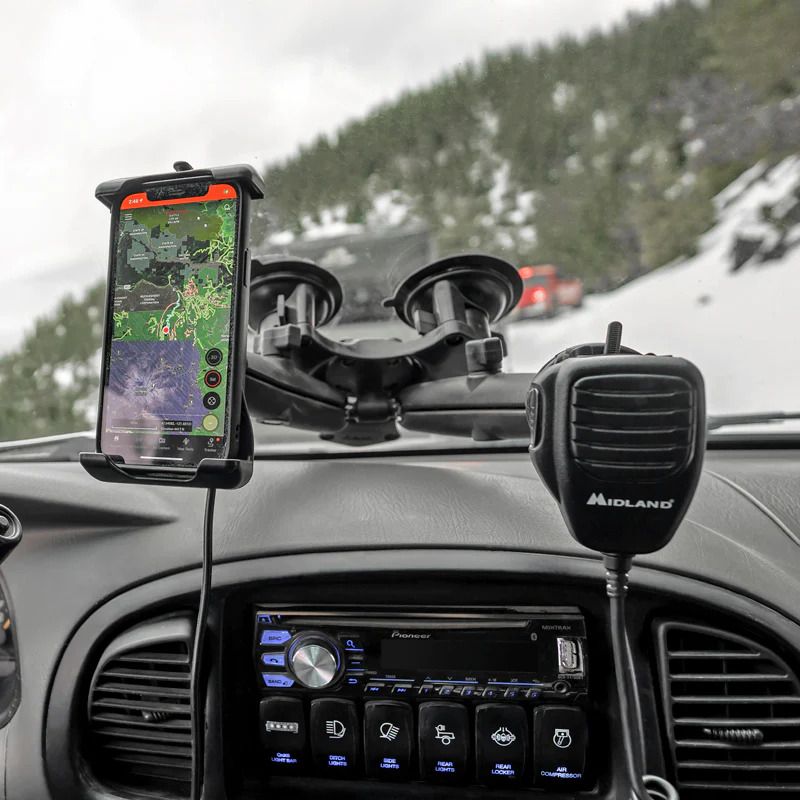

For added security and peace of mind, a device tether is included that’s recommended for outdoor applications. This RAM® Quick-Grip™ Wireless kit for vehicles includes a B size diamond base featuring a 1” rubber ball – perfect for attaching to your choice of B size RAM® double socket arm.

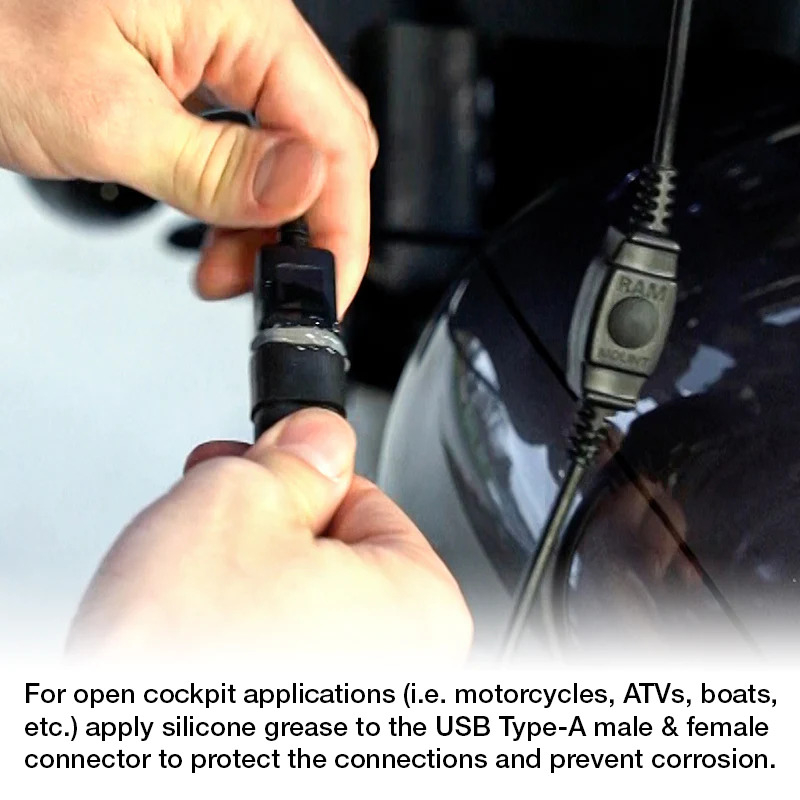

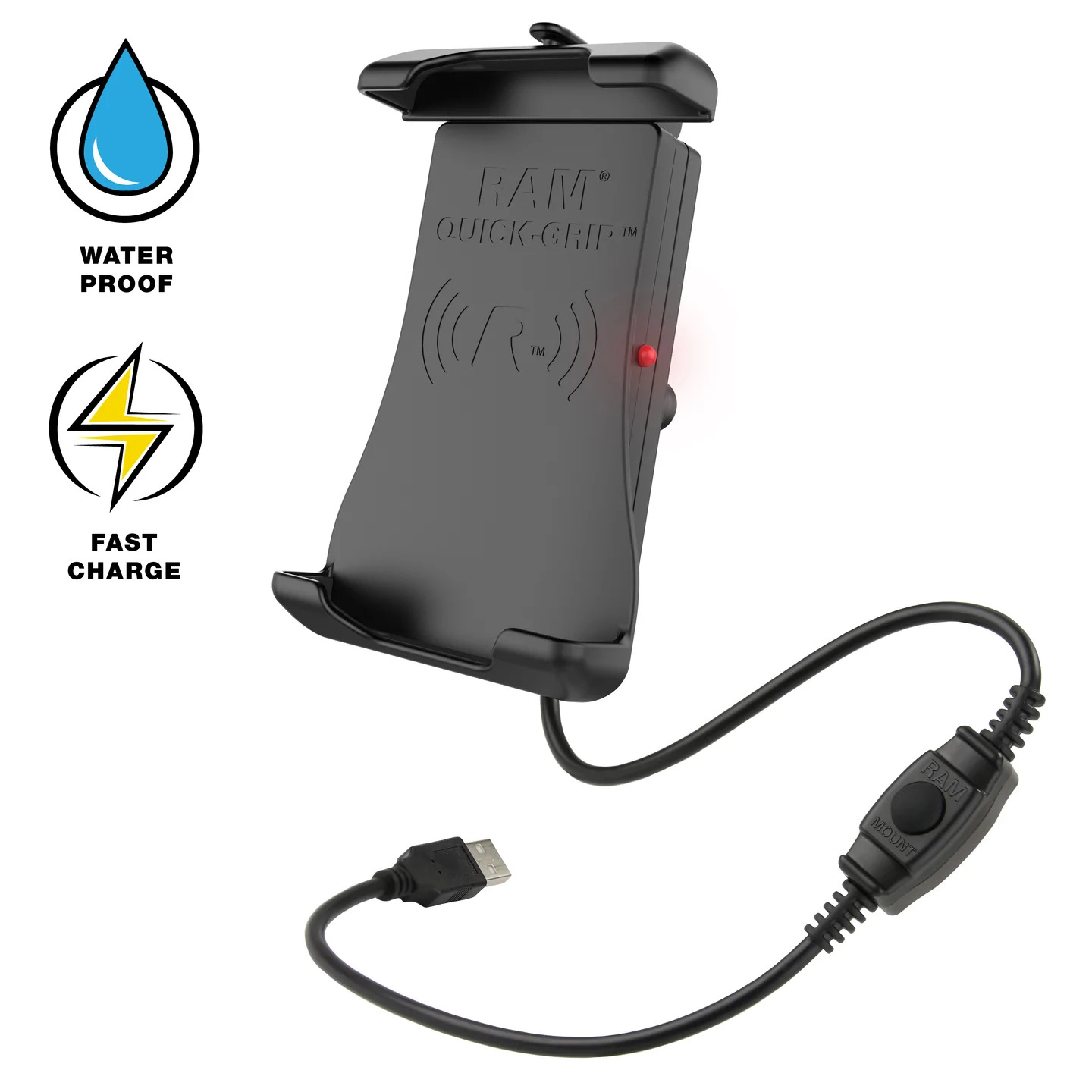

The connected Type-A male pigtail connector features an in-line switch that allows you to turn off the wireless charging module when not in use. For in-vehicle charging, attach the pigtail to the included 1.2m Type-A male to Type-A female extension cable.

FEATURES

Waterproof Qi wireless phone charging cradle features spring-loaded RAM® Quick-Grip™ design and 15W output
RAM® Mounts Compatible™ with B size double socket arms and ball bases for mounting in your preferred location
Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
RAM® Mounts backed by lifetime warranty, RAM® electronics backed by 1-year warranty with proof of purchase required

HOLDER DIMENSIONS

Height Range: 143mm - 168.3mm
Max Width: 79.4mm
Max Depth: 17.8mm

SPECIFICATIONS

Materials: High strength composite | Stainless steel
Weight Capacity: Standard Use 910g | Heavy Duty Use 455g
Ball Socket Size: B Size (1")
Packaging Type: Retail Box
Product Weight: 520g
Warranty: RAM® electronics 1 year
Certifications: FCC, IC, CE, e-Mark, WEEE, RCM, and RoHS Compliant

POWER SPECIFICATIONS

Input Power: 5V-2A; 9V-1.67A
Output: 15W
Conversion Efficiency: 85% Max
Maximum Protective phone Case Thickness: 6mm (for charging)
Working Frequency: 110-205KHZ
Operating Temperature: 0˚C to 37.7˚C
Product Standard: WPC v.1.2.4
QI Compatible
Compatible with QC2.0/QC3.0 power supplies

HARDWARE INCLUDED

1x Safety Tether
1x Silicon sleeve for USB waterproof connection
1x 1.2 Meter USB Extension Cable
4x Small zip ties
2x Large zip ties

ADDITIONAL INFORMATION

Apple iPhone 12, 13 & 14 products support two wireless charging technologies: Apple’s proprietary “Magsafe” and WPC (Wireless Power Consortium) “Qi” standard.

MagSafe can charge iPhones ~33-45% faster than the WPC Qi standard. RAM Wireless charging products provide WPC Qi BPP and EPP standard today up to 15W.

*Exposure to vibrations, like those generated by high-powered motorcycle engines, might impact iPhone cameras.

**This holder will not charge phones that do not have built-in wireless charging capabilities, such as the Apple iPhone 7 or Samsung Galaxy S5. Not compatible with phone cases containing metal.

COMPATIBLE DEVICES

Apple	Blackberry	Google	Huawei	LG	Nokia	Razer	Samsung	Sony
iPhone 14 iPhone 14 Pro iPhone 14 Max iPhone 13 iPhone 13 Pro iPhone 13 Max iPhone 12 IPhone 12 Pro iPhone 12 Max iPhone 11 iPhone 11 Pro iPhone 11 Pro Max iPhone 8 iPhone 8 Plus iPhone SE iPhone X iPhone Xr iPhone Xs iPhone Xs Max	Evolve X	Pixel 3 Pixel 3 XL Pixel 4 Pixel 4 XL Pixel 5 Pixel 6 Pixel 6 Pro	Mate 20 Pro P30 Pro	G6 G6+ G7 ThinQ G8 ThinQ G8S ThinQ V30 V35 ThinQ V40 ThinQ V50 ThinQ	8 Sirocco 9 PureView	Phone 2	Galaxy Note 5 Galaxy Note 8 Galaxy Note 9 Galaxy Note 10 Galaxy Note 10 Plus Galaxy Note 20 Galaxy Note 20 Ultra Galaxy S10 Galaxy S10 5G Galaxy S10+ Galaxy S20 Galaxy S20+ Galaxy S20 Ultra 5G Galaxy S21 5G Galaxy S21+ 5G Galaxy S21 Ultra 5G Galaxy S22 5G Galaxy S22+ 5G Galaxy S22 Ultra 5G Galaxy S6 Galaxy S6 Edge+ Galaxy S7 Active Galaxy S7 Edge Galaxy S8 Galaxy S8+ Galaxy S8 Active Galaxy S9 Galaxy S9+	Xperia XZ2 Xperia XZ3 Xiaomi Mi 9 Mi 9 Explorer Mi Mix 2S Mi Mix 3
