RAM® No-Drill™ Universal Laptop Mount with Reverse Configuration
$467.00
Sold Out - Backorder Available
RAM® No-Drill™ Universal Laptop Mount with Reverse Configuration

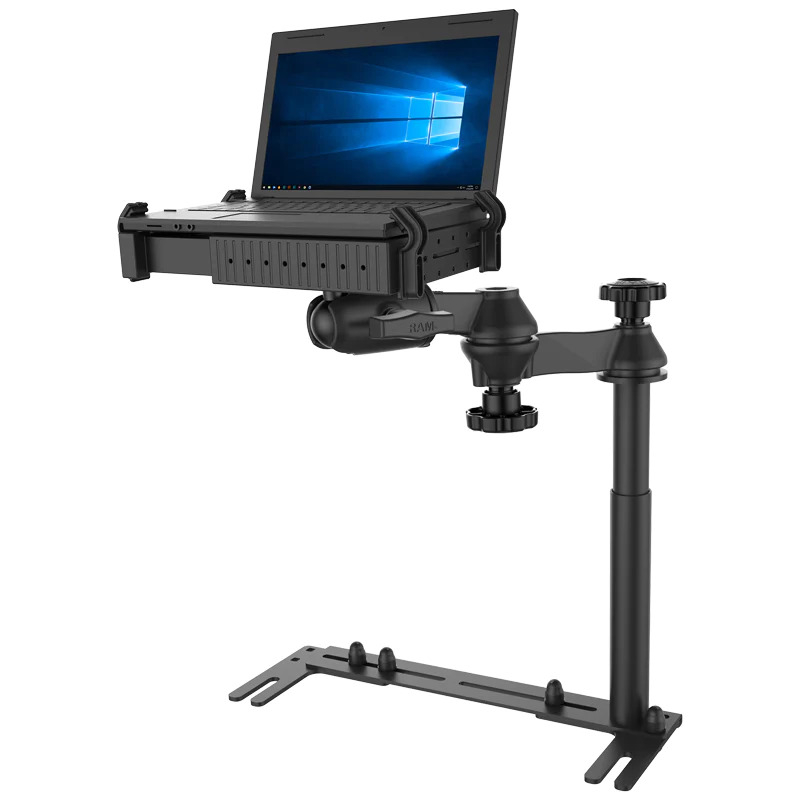

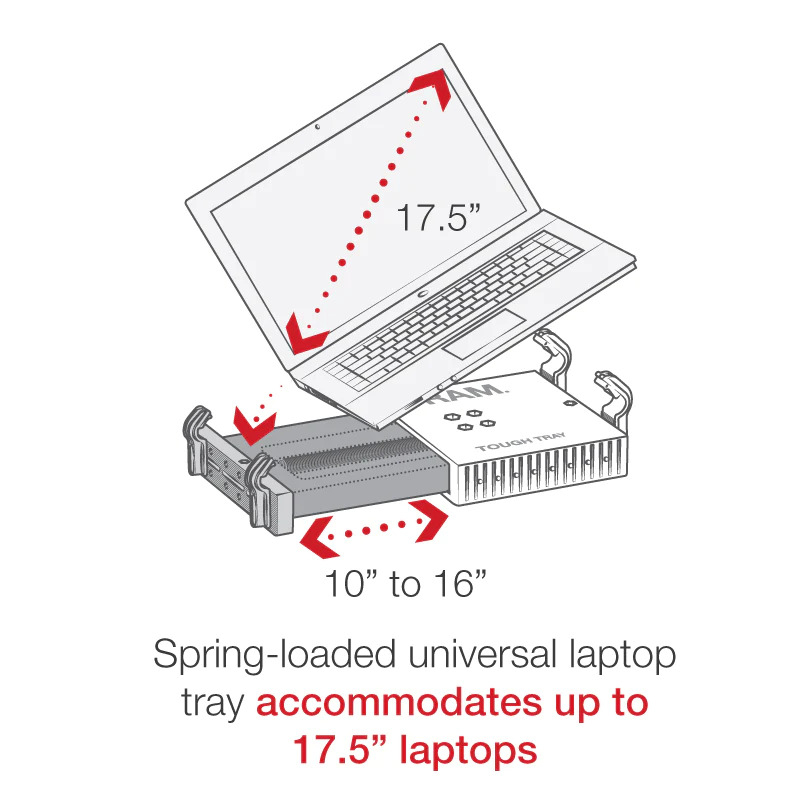

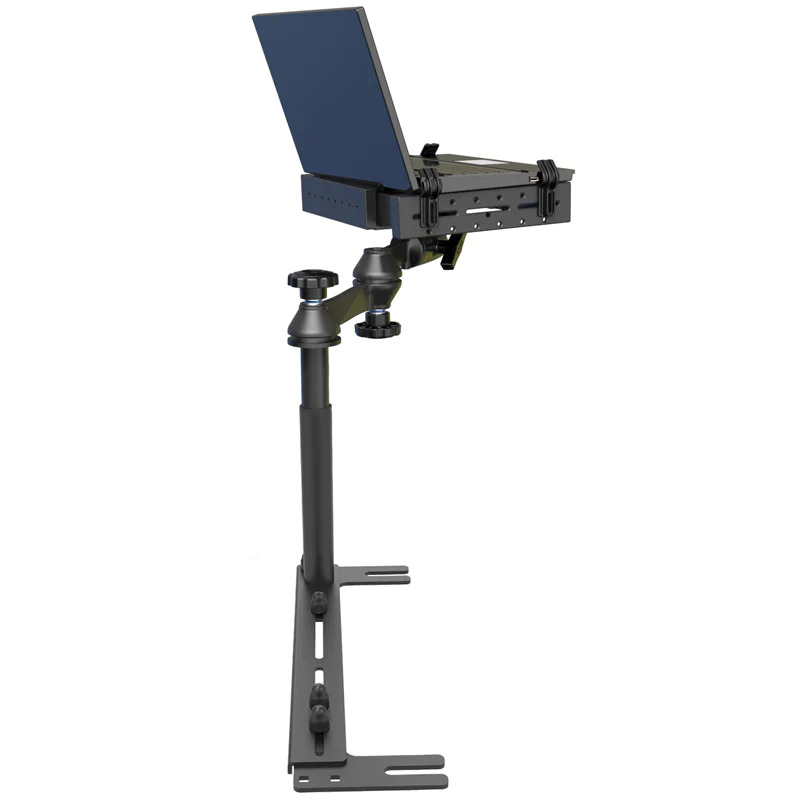

The RAM® Reverse Configuration Universal No-Drill™ Laptop features a heavy-duty steel mounting base designed to fit a variety of vehicles. Using the front bench or passenger side seat rail bolts as attachment points, existing hardware is used to secure the laptop mount base in the vehicle. The included RAM Tough-Tray™ is spring loaded to accommodate 10" to 17" laptops.
*** Laptop Pictured Not Included ***
The tray features four adjustable retaining arms with rubber grips. These arms can be moved both vertically and horizontally, enabling a custom fit for varying thicknesses of laptops and access to ports or drives. A screen support and USB light are also available to accessorize the tray. Hole patterns on perimeter of tray facilitate the mounting of additional RAM systems to support phones or other electronics.
KEY FEATURES
- Custom, RAM® No-Drill™ mounting base offers lowest profile in the industry
- Universal adjustable base accomodates a wide range of vehicles (see Additional Information)
- Patented ball and socket mounting system offers shock and vibration damping

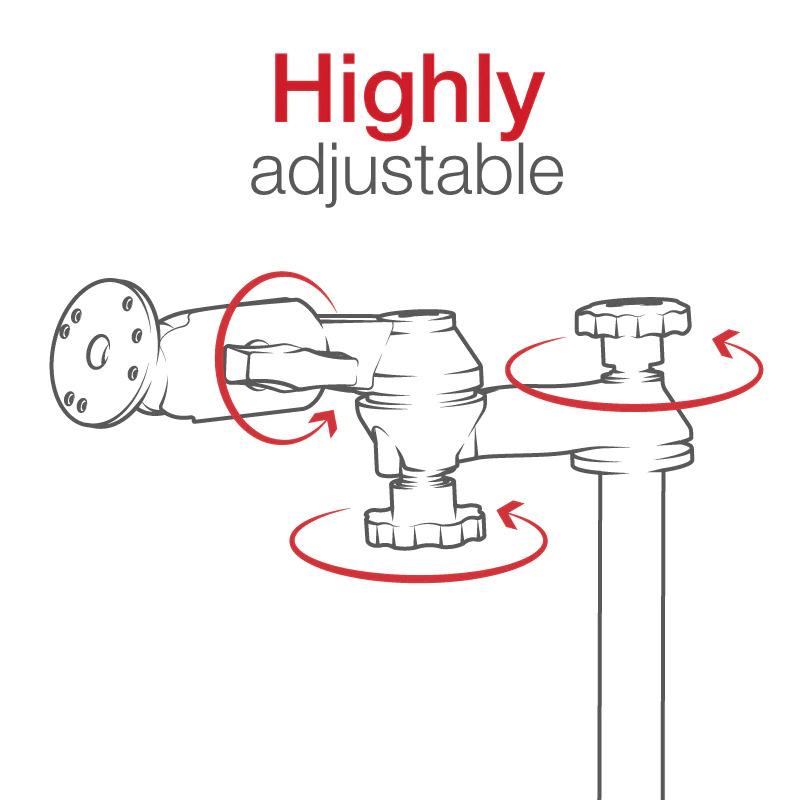

- Dual articulating swing arm offers the simplest and most comfortable adjustment points in the industry
- Backed by a lifetime warranty
SPECIFICATIONS
HARDWARE INCLUDED: Assembly Hardware / Stabilizer Foot
PRODUCT DIMENSIONS: Height Range - 46.3cm - 61cm
TRAY DIMENSIONS
Width Range: 25.4cm - 40.5cm
Side Arm Clamp Height: 1.27cm - 4.44cm
Tray Depth: 25.4cm
Tray Thickness: 5.4cm
Width Range: 25.4cm - 40.5cm
Side Arm Clamp Height: 1.27cm - 4.44cm
Tray Depth: 25.4cm
Tray Thickness: 5.4cm
HOLE PATTERN: Seat Bolt Distance: 22.8cm -47.94cm center to center
BALL SIZE: C Size (1.5")
MATERIALS: Powder coated steel / Marine grade-aluminum / High strength composite
PACKAGING TYPE: Box
WEIGHT: 6.35kg
ADDITIONAL INFORMATION
Will this mount install in your vehicle? Learn more by following the steps in this document:
Will this mount install in your vehicle? Learn more by following the steps in this document:
Depending on your vehicle, some installations may limit the adjustability of the passenger seat.
INSTRUCTIONS AND DOCUMENTS
(RAM-VB-196-1-SW1)
| SKU | RAM-VB-196-1-SW1 |
| Barcode # | 793442947797 |
| Brand | Ram Mounts |
| Shipping Weight | 8.0000kg |
| Unit Of Measure | ea |
