RAM® Multi Rail Ball Base for Rails up to 3.15"

RAM® Multi Rail Ball Base for Rails up to 3.15" - B Size 1" Ball

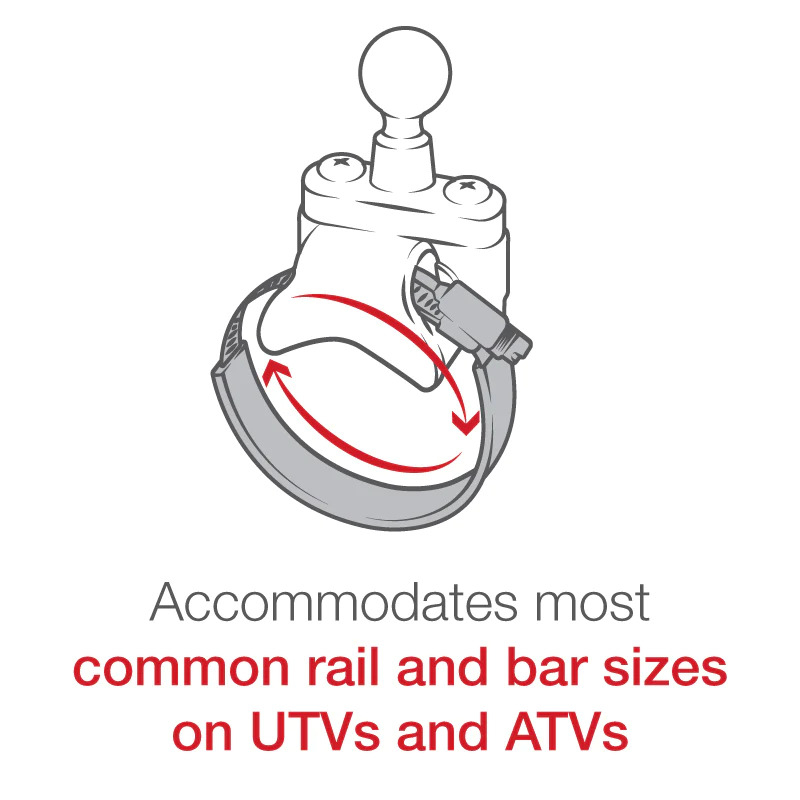

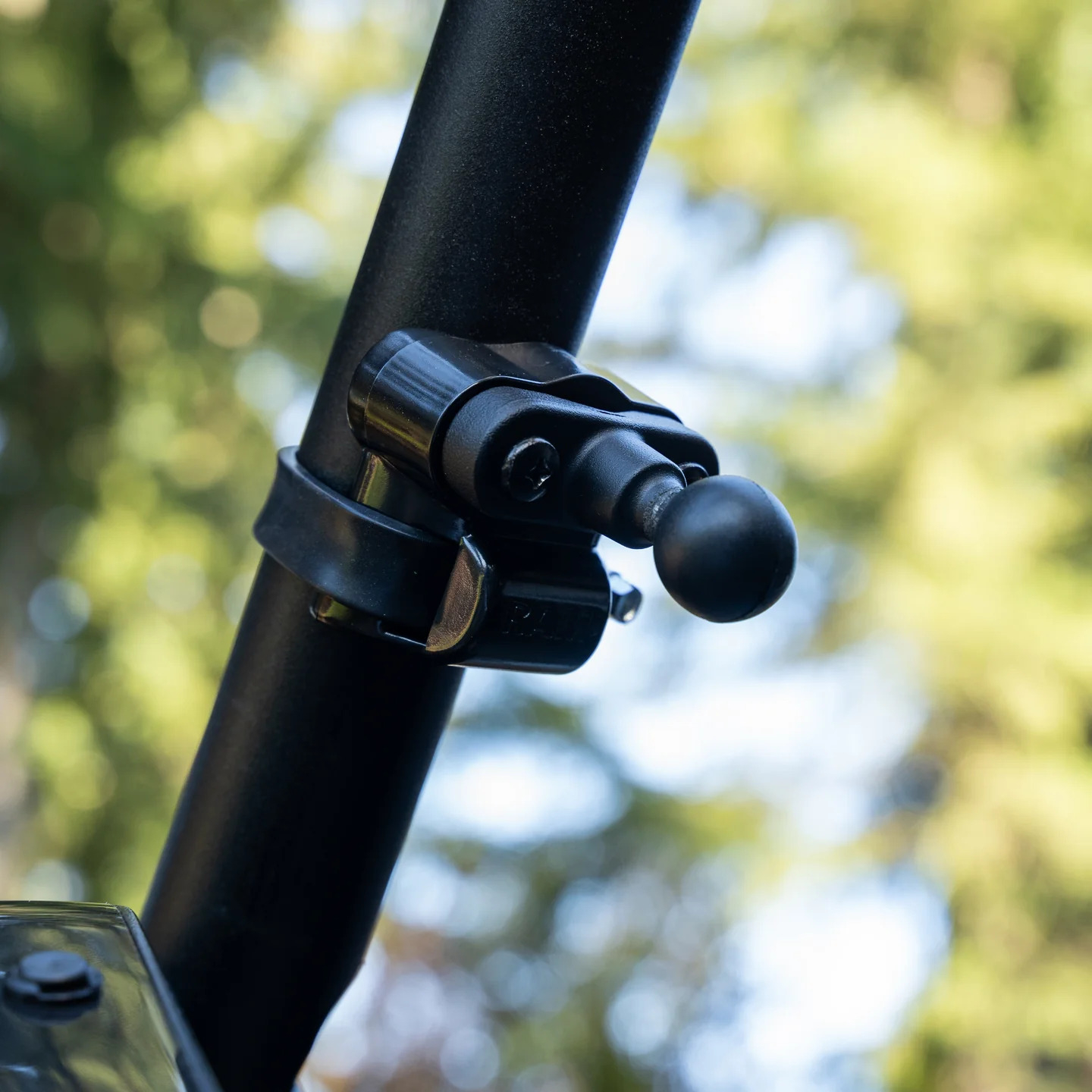

Designed for a clean installation, the RAM-B-231Z-2U base accommodates most common rail and bar sizes on UTVs and ATVs. With the strap clamp safely concealed in a compact housing, you won't have to worry about exposed sharp edges or unwanted loosening. Included in the kit is a zinc-coated metal U-bolt, allowing you to modify the mount for another mounting location. The base also includes black cover caps to be placed over the exposed ends of the U-bolt.

KEY FEATURES

Rail and bar base for UTVs and ATVs includes strap clamp and U-bolt components
Included B size 1" RAM® rubber ball allows for connection to any B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
Backed by a lifetime warranty

SPECIFICATIONS

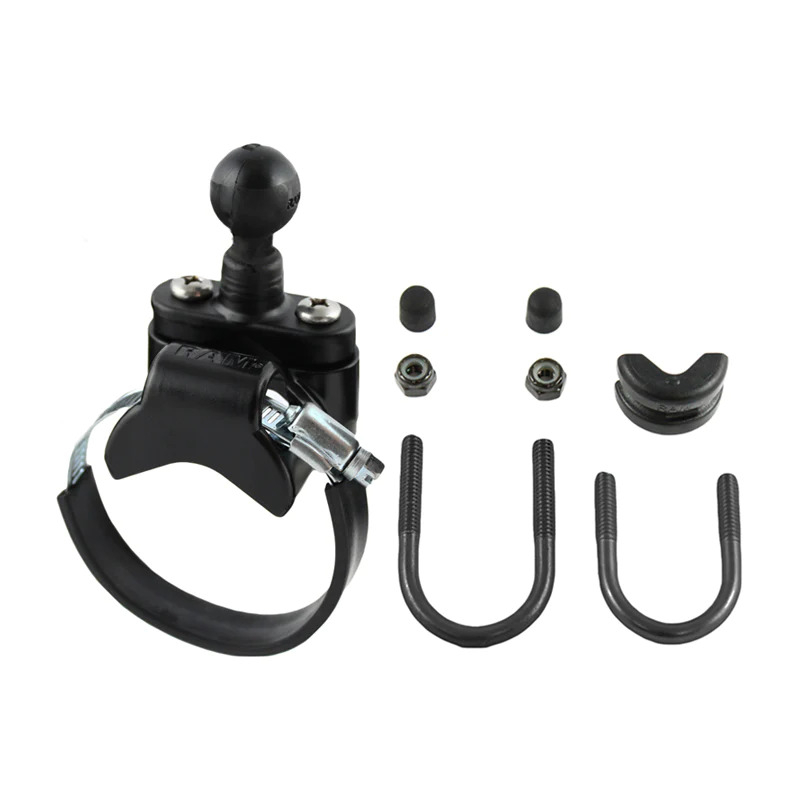

HARDWARE INCLUDED
(1) Strap Clamp Adapter
(2) 1/4"-20 x 1" Machine Screws
(2) 1/4"-20 Nylock Nuts
(1) Zinc Worm Drive Strap Clamp
(1) 6" Rubber Strip
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) Rubber Caps
(1) U-Bolt Spacer

CLAMP RANGE
U-Bolt: .5" - 1.25" diameter
Strap Clamp: 1.57" - 3.15" diameter

BALL SIZE: B Size (1")

WEIGHT CAPACITY: Standard Use: 2 lbs / Heavy-Duty Use: 1 lb

MATERIALS: Marine-grade aluminum / High strength composite

WEIGHT: 154g / 0.34 lb

(RAM-B-231Z-2U)
