RAM® Motorcycle Brake/Clutch Reservoir & Handlebar Ball Base
$38.00
In Stock
RAM® Motorcycle Brake/Clutch Reservoir & Handlebar Ball Base

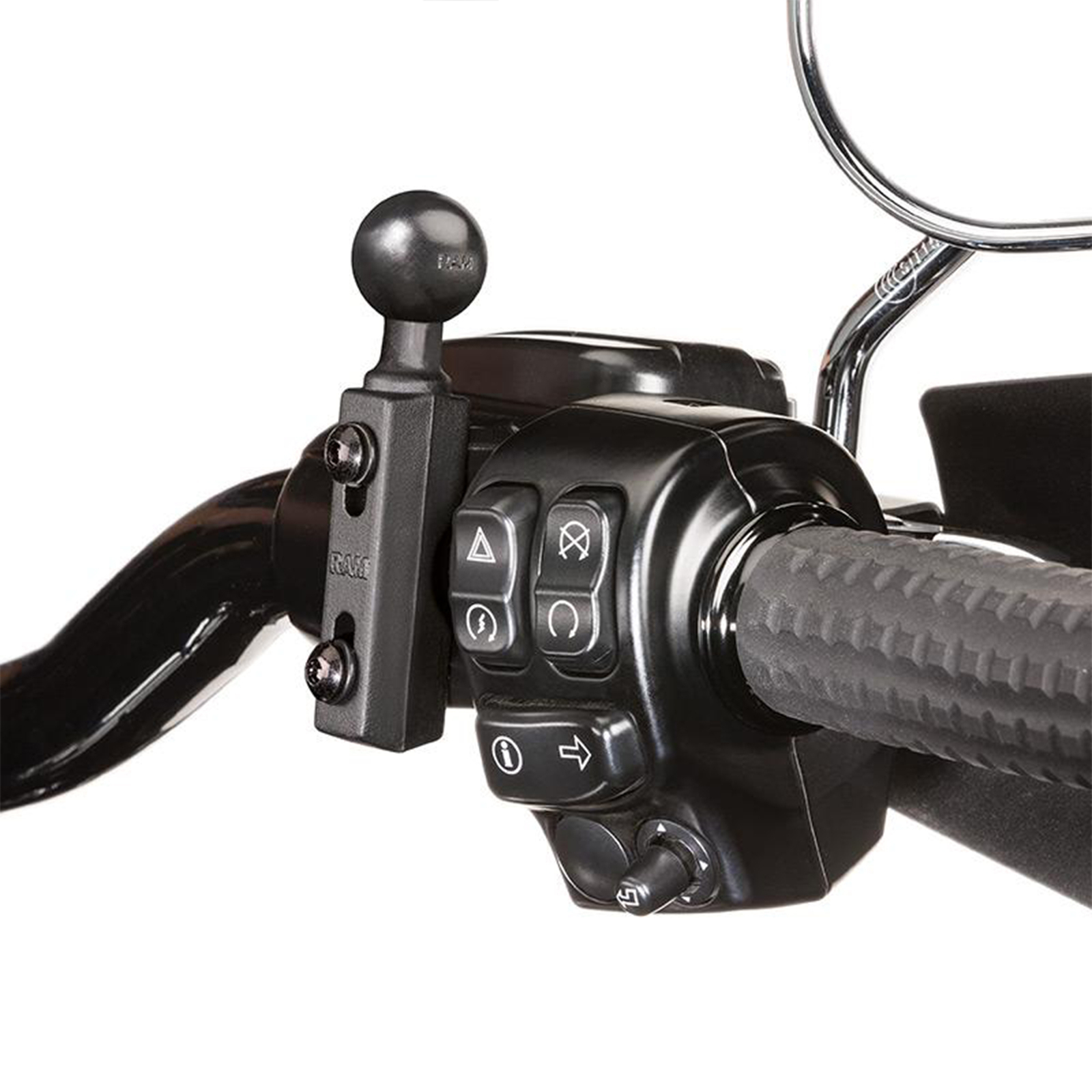

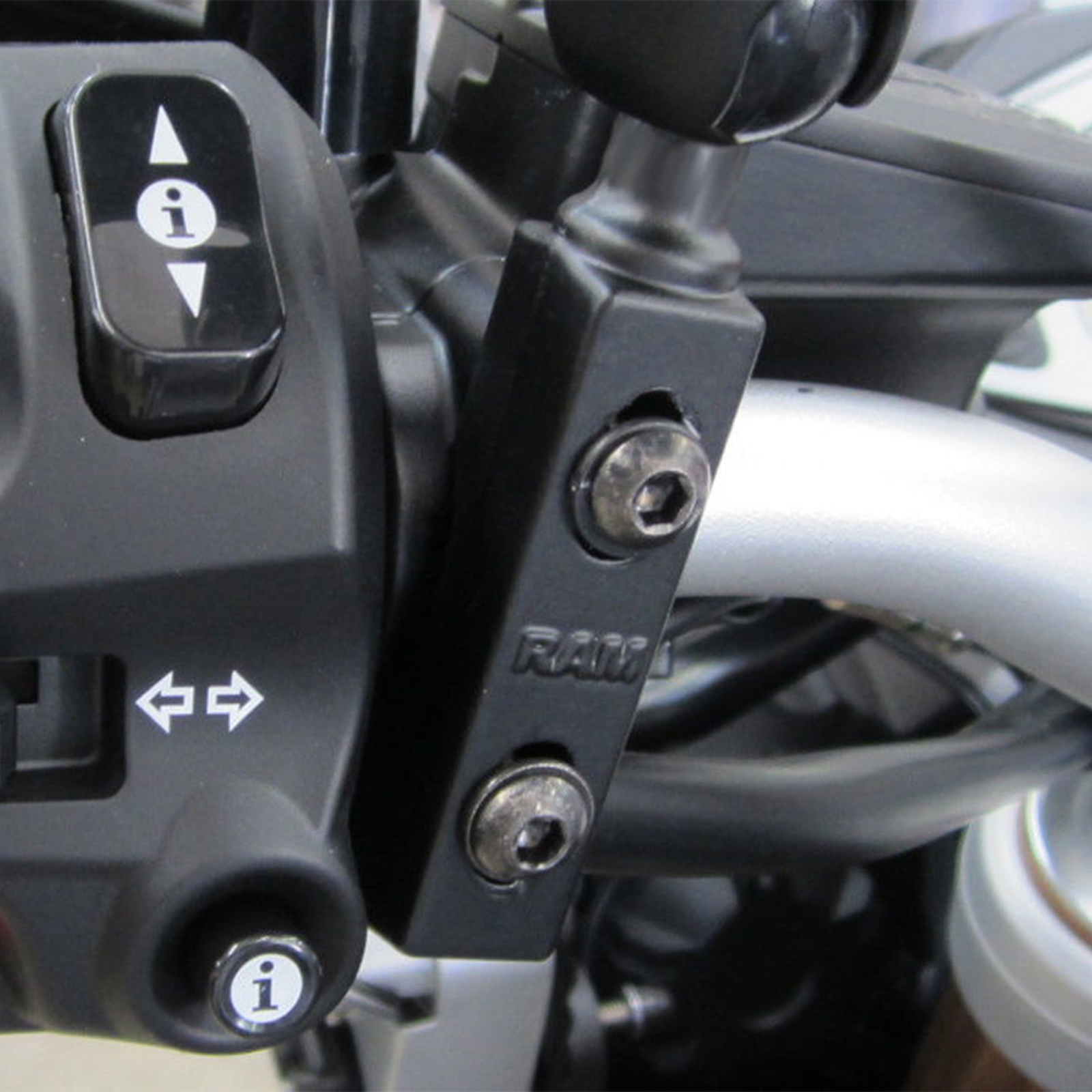

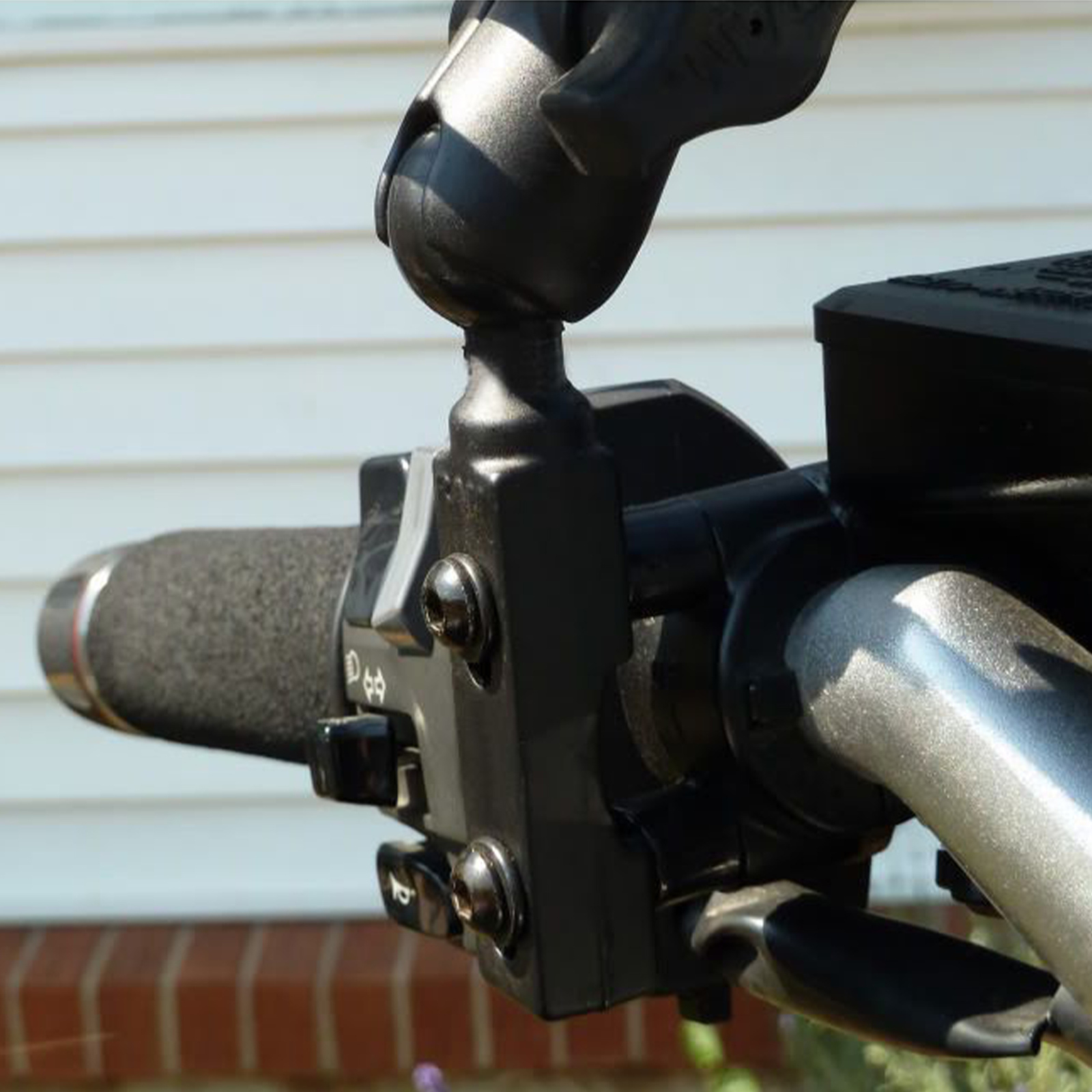

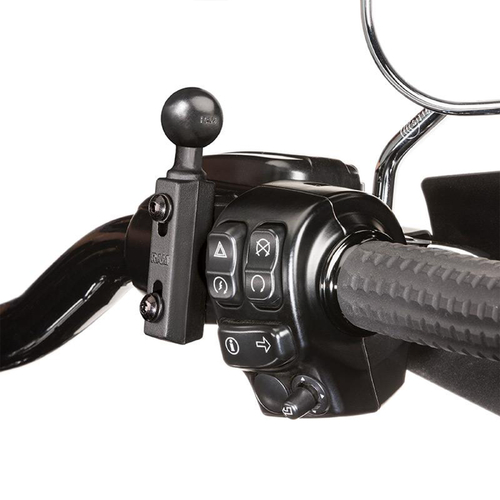

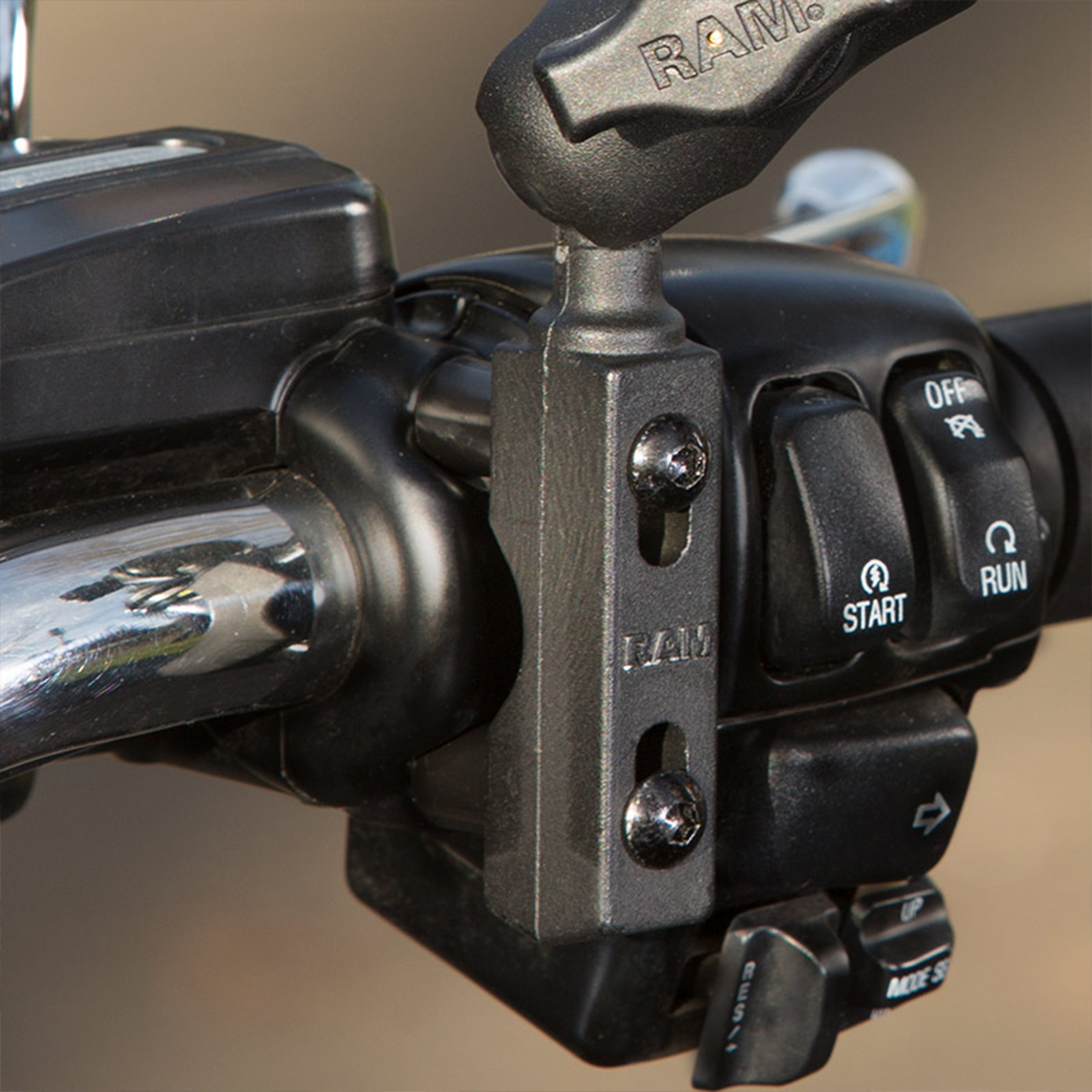

The RAM-B-309-7U combination handlebar and brake/clutch reservoir base provides the ultimate flexibility for mounting to your motorcycle. Attach the base to either your handlebar or brake/clutch, and achieve near-infinite adjustability and ideal viewing angles for your phone, GPS unit, or action camera. The zinc-coated metal U-bolt accommodates rails ranging from 0.5" to 1.25" in diameter. Hardware included.
KEY FEATURES
- Combination handlebar and brake/clutch reservoir base for motorcycles; includes U-bolt hardware
- Included B size 1" RAM® rubber ball allows for connection to any B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
- Made of Powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments

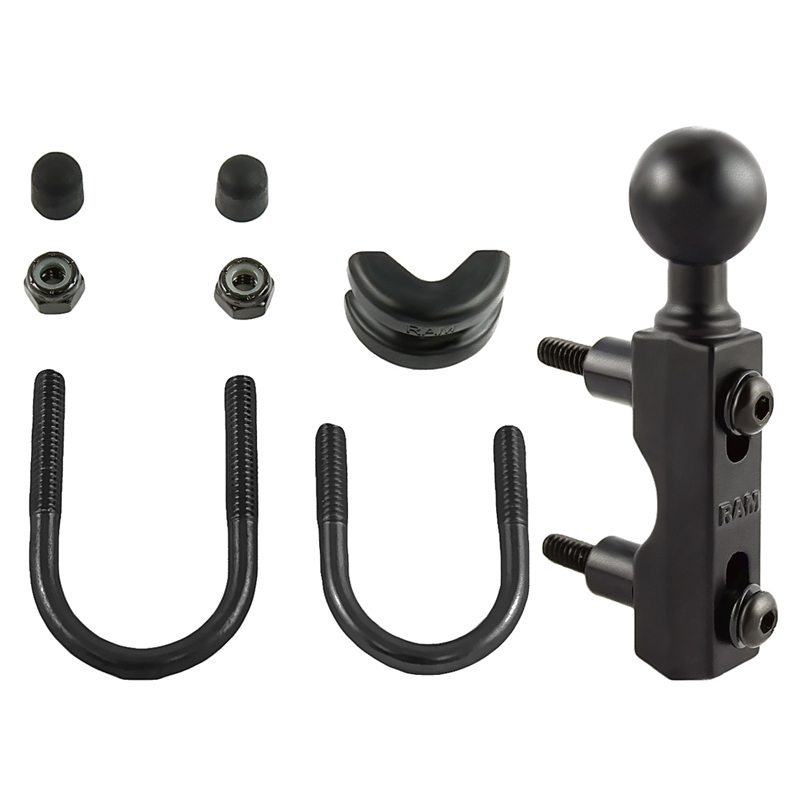

HARDWARE INCLUDED
(2) M6 x 55mm Hex Bolts
(2) #1/4-20 x 2" Hex Bolts
(2) 1/4"-20 x 2.5" Hex Bolts
(2) 1/2" Spacers
(2) 1/4" Split Lock Washers
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer
SPECIFICATIONS
CLAMP RANGE : 1.27cm - 3.17cm diameter
BALL/SOCKET SIZE : B Size (1")
WEIGHT CAPACITY : Standard Use: 900g / Heavy-Duty Use: 450g
MATERIALS : Marine-Grade Aluminum
WEIGHT : 204g
BALL/SOCKET SIZE : B Size (1")
WEIGHT CAPACITY : Standard Use: 900g / Heavy-Duty Use: 450g
MATERIALS : Marine-Grade Aluminum
WEIGHT : 204g
(RAM-B-309-7U)
| SKU | RAM-B-309-7U |
| Brand | Ram Mounts |
| Shipping Weight | 0.5000kg |
| Unit Of Measure | ea |
