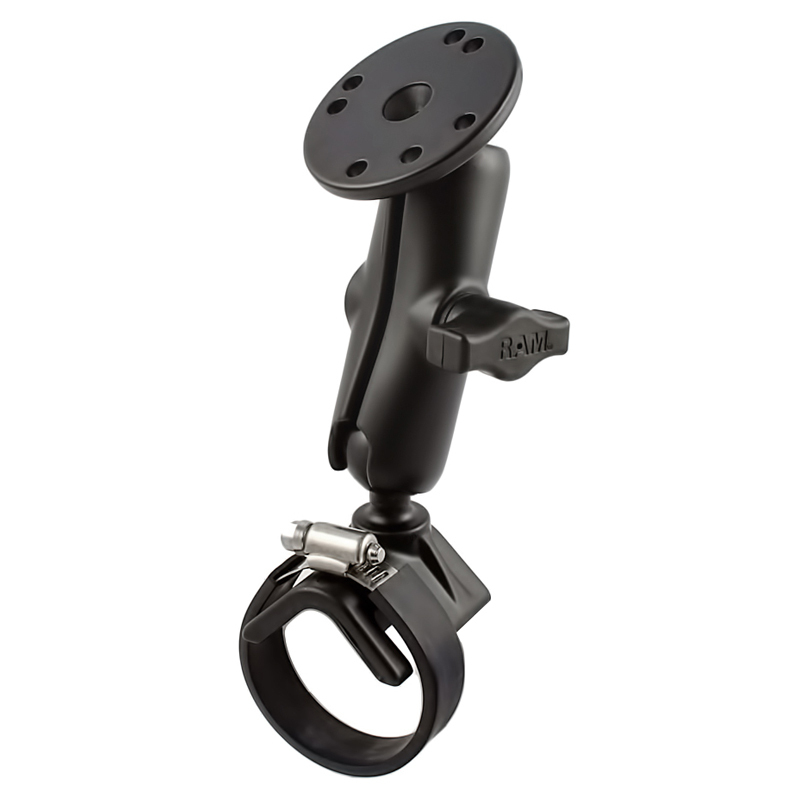

RAM® Large Strap Hose Clamp Mount with Round Plate for Beechcraft Aircraft

RAM® Large Strap Hose Clamp Mount with Round Plate for Beechcraft Aircraft

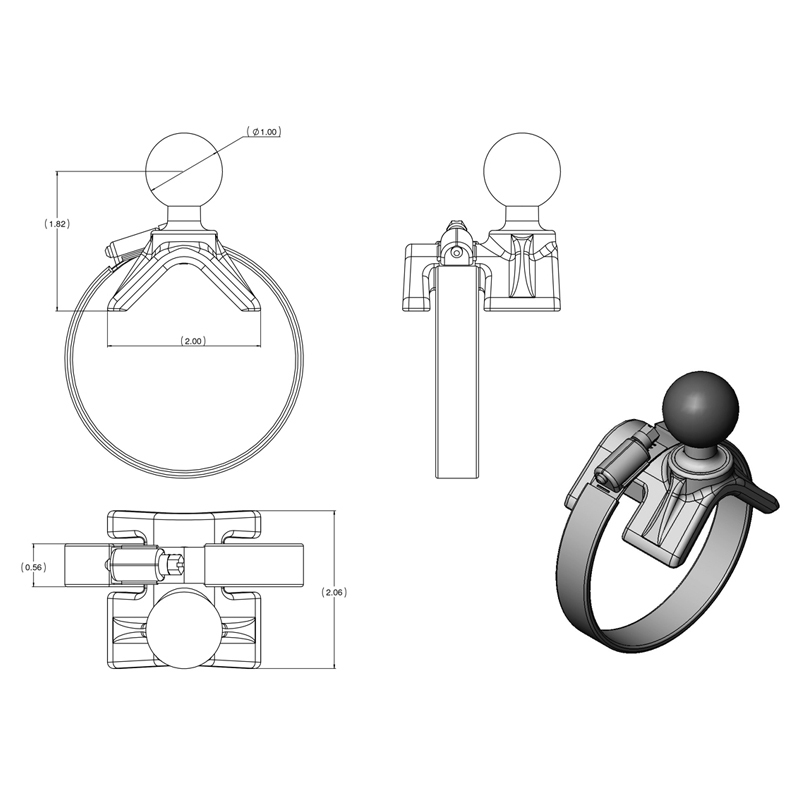

The RAM-B-108B-STRAP40 accommodates rails from 2" to a maximum of 3" in diameter.

To mount the RAM-B-108B-STRAP40 base, place the saddle shaped plate on the rail then wrap the metal clamp strap around the rail and plate. Tighten the screw knob on the metal strap with a screw driver until the strap has a firm hold on the rail. The RAM-B-108B-STRAP40 is an alternative mounting base for aircraft such as the Bonanza or Beech with a “throw over yoke”.

SPECIFICATIONS

HARDWARE INCLUDED:	(1) #40 Worm Drive Strap Clamp (1) 6" Rubber Strip
CLAMP RANGE:	2" - 3" diameter
SOCKET-TO-SOCKET LENGTH:	3" (7.62cm)
HOLE PATTERN:	4-Hole AMPS: 1.181" x 1.496" 3-Hole 120-Degree: 1.812" Diameter
BALL SIZE:	B Size (1")
WEIGHT CAPACITY:	Standard Use: 907g Heavy-Duty Use: 453g
MATERIALS:	Marine-grade aluminum
PACKAGING TYPE:	Retail Bag
WEIGHT:	376.48g
