RAM® Handlebar U-Bolt Double Ball Mount with Round Plate

RAM® Handlebar U-Bolt Double Ball Mount with Round Plate

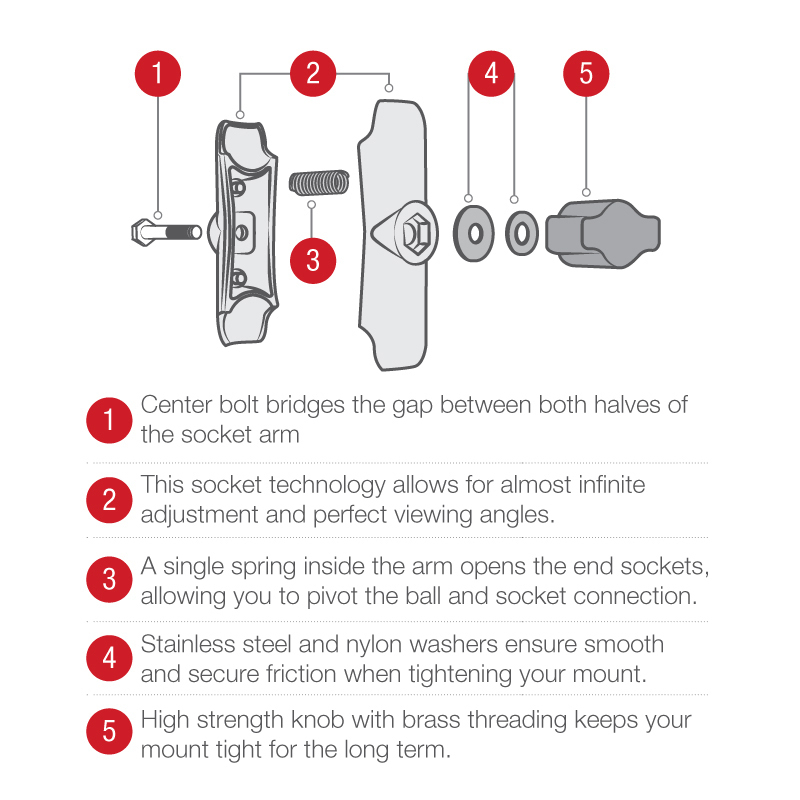

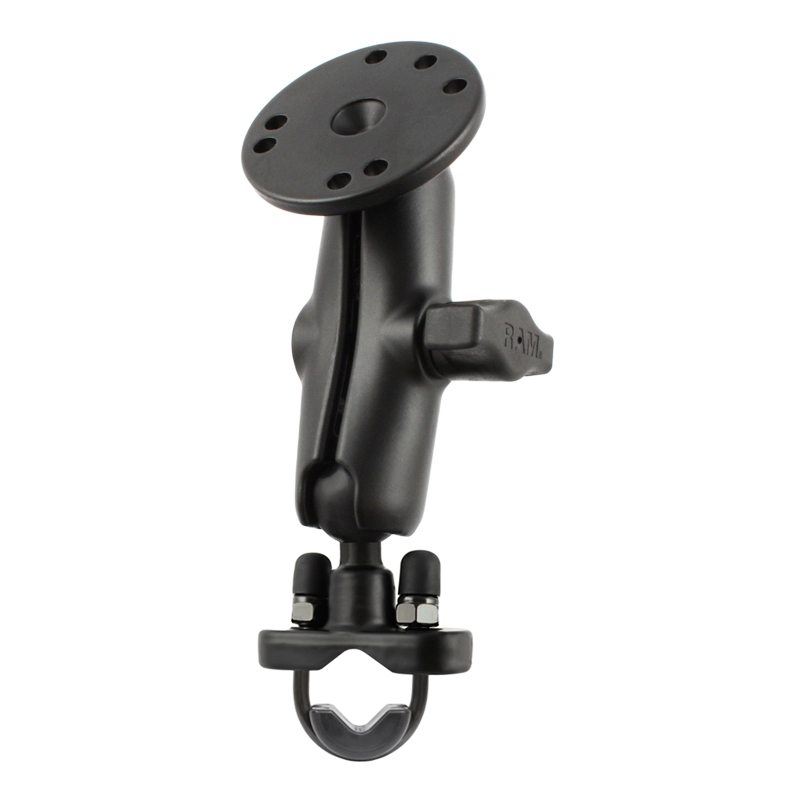

he RAM-B-149Z-202U consists of a zinc coated u-bolt base, double socket arm and round base adapter. The round base adapter has a hole pattern that matches the industry standard AMPS hole pattern and will connect to a large variety of RAM Mount and third party cradles. Included in this package is hardware that will accommodate rails from 0.50" to 1.25" (1.3cm - 3.2cm) in diameter. A composite rail adapter can narrow the rail to a minimum width of 0.5”. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.

KEY FEATURES

2.5" round plate connects to RAM® device holders containing the universal AMPS hole pattern
Includes U-bolt base that accommodates rails from .5" to 1.25" (1.3cm - 3.2cm) in diameter and a medium length B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
Made of powder-coated, marine-grade aluminum and high-strength composite for durability and reliability in the most demanding environments

SPECIFICATIONS

HARDWARE INCLUDED:	(1) 1/4"-20 U-Bolt for .5" - 1" Rails (1) 1/4"-20 U-Bolt for 1" - 1.25" Rails (2) 1/4"-20 Nylock Nuts (2) Rubber Caps (1) U-Bolt Spacer
CLAMP RANGE:	1.3cm - 3.2cm diameter
SOCKET-TO-SOCKET LENGTH:	3" (7.62cm)
HOLE PATTERN:	4-Hole AMPS: 1.181" x 1.496" \| 3-Hole 120 Degree: 1.812" (4.6cm) Diameter BALL SIZE: B Size (1")
BALL SIZE:	B Size (1")
WEIGHT CAPACITY:	Standard Use: 907g Heavy-Duty Use: 453g
MATERIALS:	Marine-grade aluminum \| High strength composite
PACKAGING TYPE:	Retail Bag
WEIGHT:	295g
