RAM® Glare Shield Clamp Double Ball Mount with Round Plate

RAM® Glare Shield Clamp Double Ball Mount with Round Plate

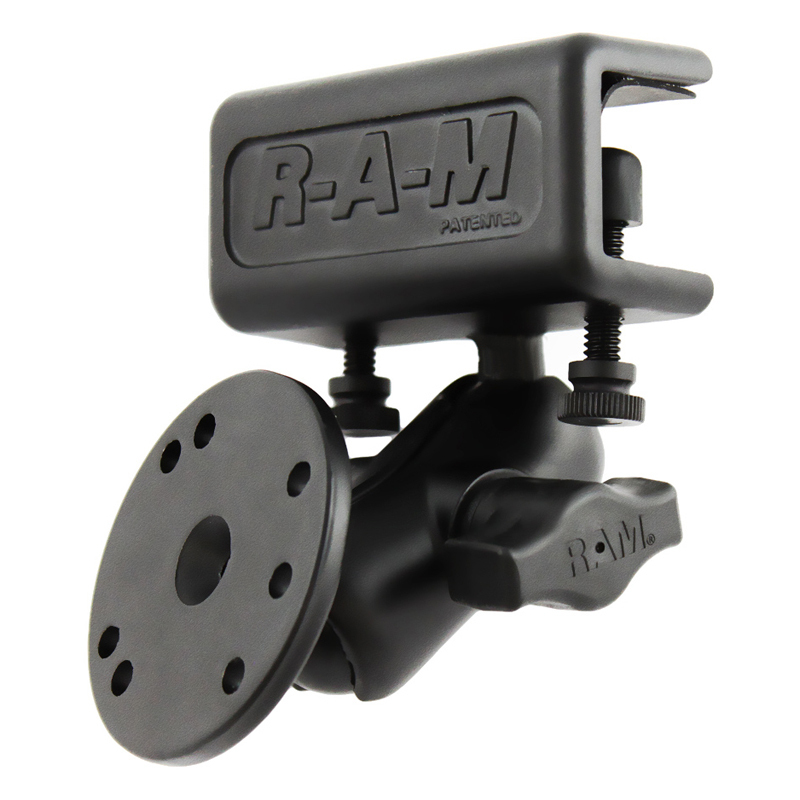

The RAM-B-177-202U consists of a glare shield clamp base, short double socket arm and round base that contains the universal AMPs hole pattern.

This mount is designed to mount to the lip edge of a flat surface up to 5/8" thick. Popular mounting edges include a car side window edge lip or glare shield on an airplance.

The base has two composite bolts that, when tightened, clamp the base to the lip surface. A RAM 1" diameter rubber ball is connected to the base allowing you to connect a RAM 1" diamter arm socket and connection plates to create the perfect mount for your application. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.

SPECIFICATIONS

HARDWARE INCLUDED:	(2) 1/4"-20 x 1.25" Composite Thumb Screws (2) Rubber Caps (1) 1.93" x 3.06" Rubber Adhesive Pad
CLAMP RANGE:	.625" max
SOCKET-TO-SOCKET LENGTH:	1.75"
HOLE PATTERN:	4-Hole AMPS: 1.181" x 1.496" 3-Hole 120-Degree: 1.812" Diameter
BALL SIZE:	B Size (1")
WEIGHT CAPACITY:	Standard Use: 907g Heavy-Duty Use: 453g
MATERIALS:	Marine-grade aluminum
PACKAGING TYPE:	Retail Bag
WEIGHT:	276g
