RAM® C Size Torque™ 1.125"- 1.5" Large Rail Base with 1.5" Ball

RAM® C Size Torque™ 1.125"- 1.5" Large Rail Base with 1.5" Ball

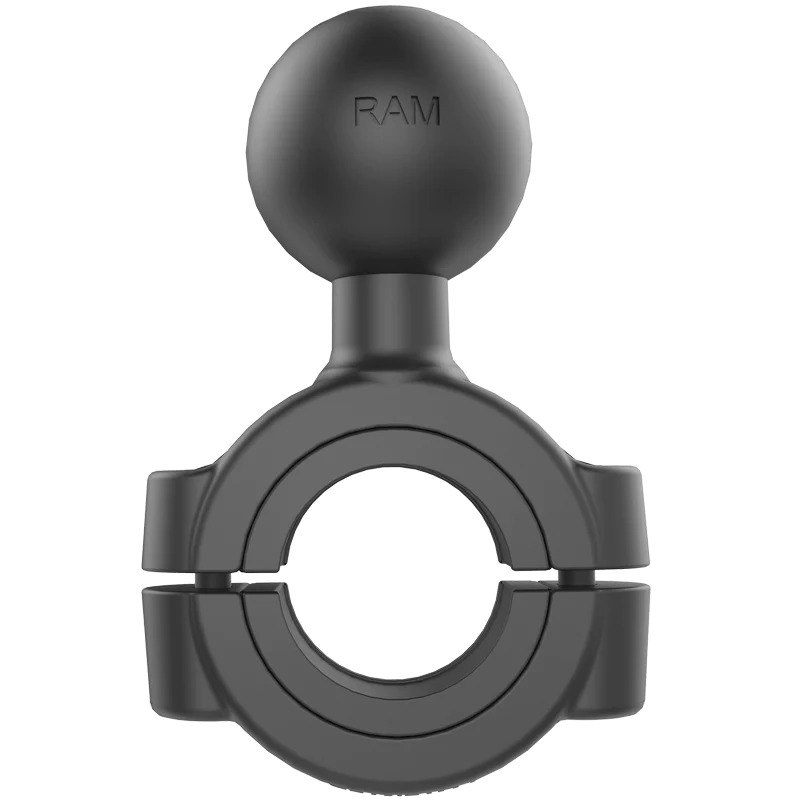

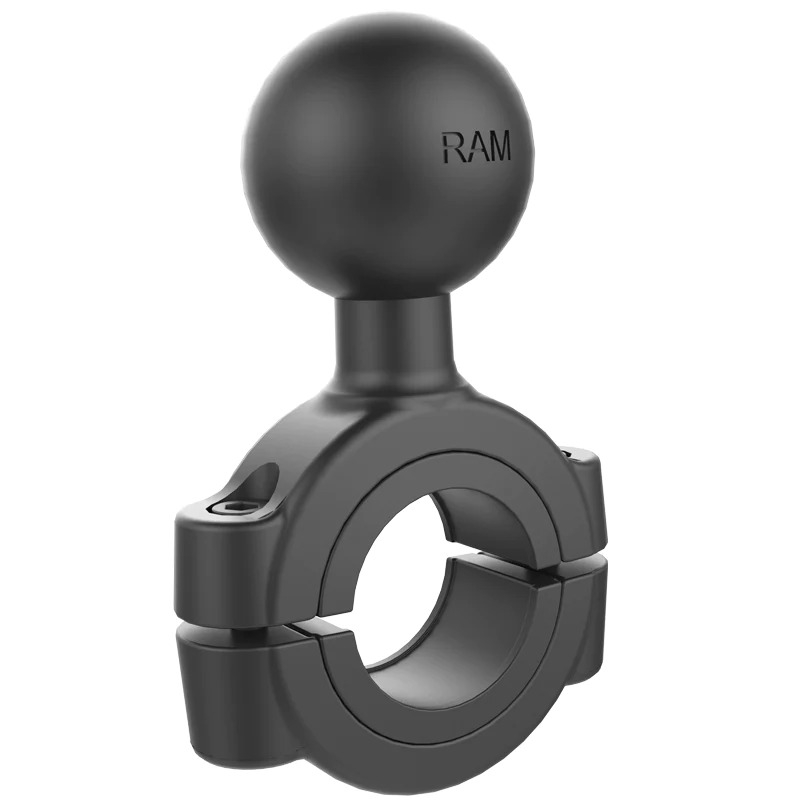

The RAM® Torque™ handlebar and rail mounting base has a 1.5” rubber ball and accommodates bars 1 1/8” to 1 1/2” in diameter. Sizing inserts are included to provide a snug fit and protection of the rail. The mount utilizes nylon-insert lock nuts to prevent loosening in high vibration environments.

KEY FEATURES

Handlebar mounting base with C size 1.5" rubber ball accommodates rails 1 1/8" to 1 1/2" in diameter

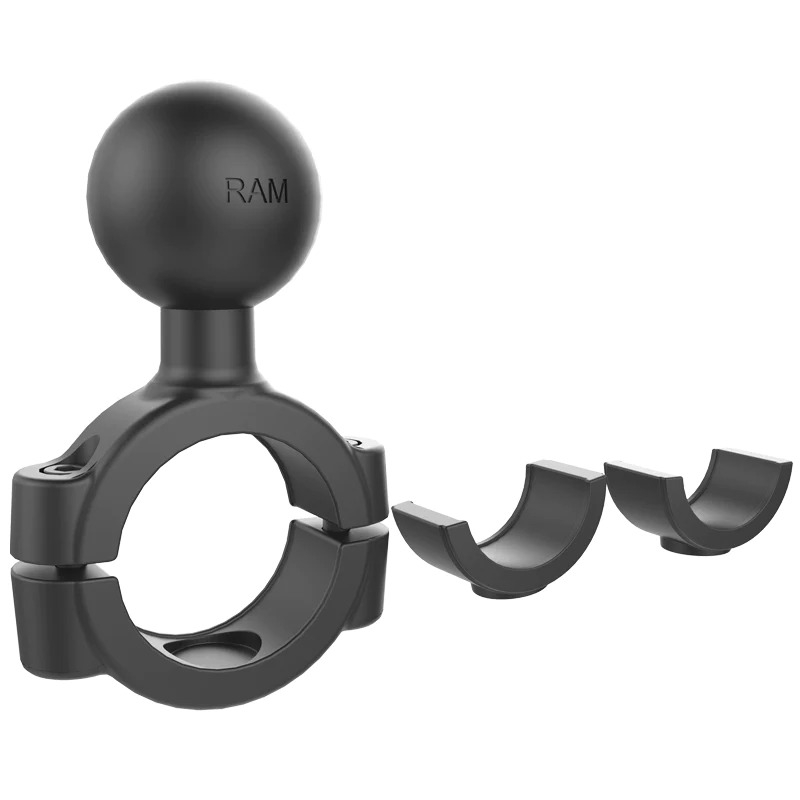

Includes sizing inserts to provide a tight fit while protecting the mounting surface; mount includes nylon-insert locknuts to prevent loosening
Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
Backed by a lifetime warranty

SPECIFICATIONS

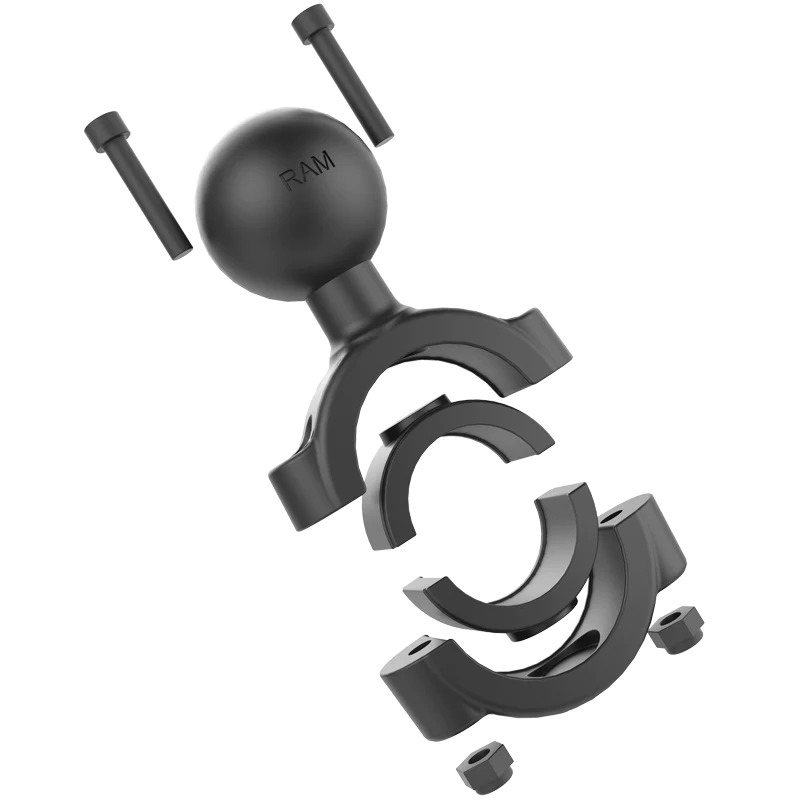

HARDWARE INCLUDED
(2) #10-24 x 1" Socket Head Cap Screws
(2) #10-24 Nylock Nuts
(2) 1.12" Split Reducing Bushings
(2) 1.27" Split Reducing Bushings
(1) 5/32" Hex Key Wrench
(1) 127mm x 17mm Rubber Adhesive Strip

CLAMP RANGE: 1.125" - 1.5" diameter

BALL SIZE: C Size (1.5")

WEIGHT CAPACITY: Standard Use: 4 lbs / Heavy-Duty Use: 3 lbs

MATERIALS: Marine-grade aluminum

WEIGHT: 177g / 0.39 lb

(RAM-408-112-15U)
