RAM® C Size Handlebar U-Bolt Base for 0.5" to 1.25" Rails with 1.5" Ball

$36.00

inc GST

Product Description

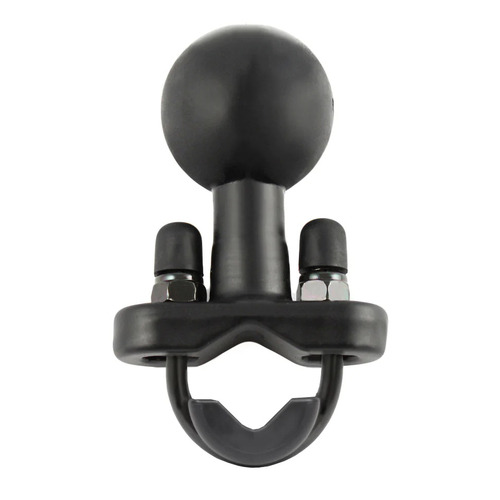

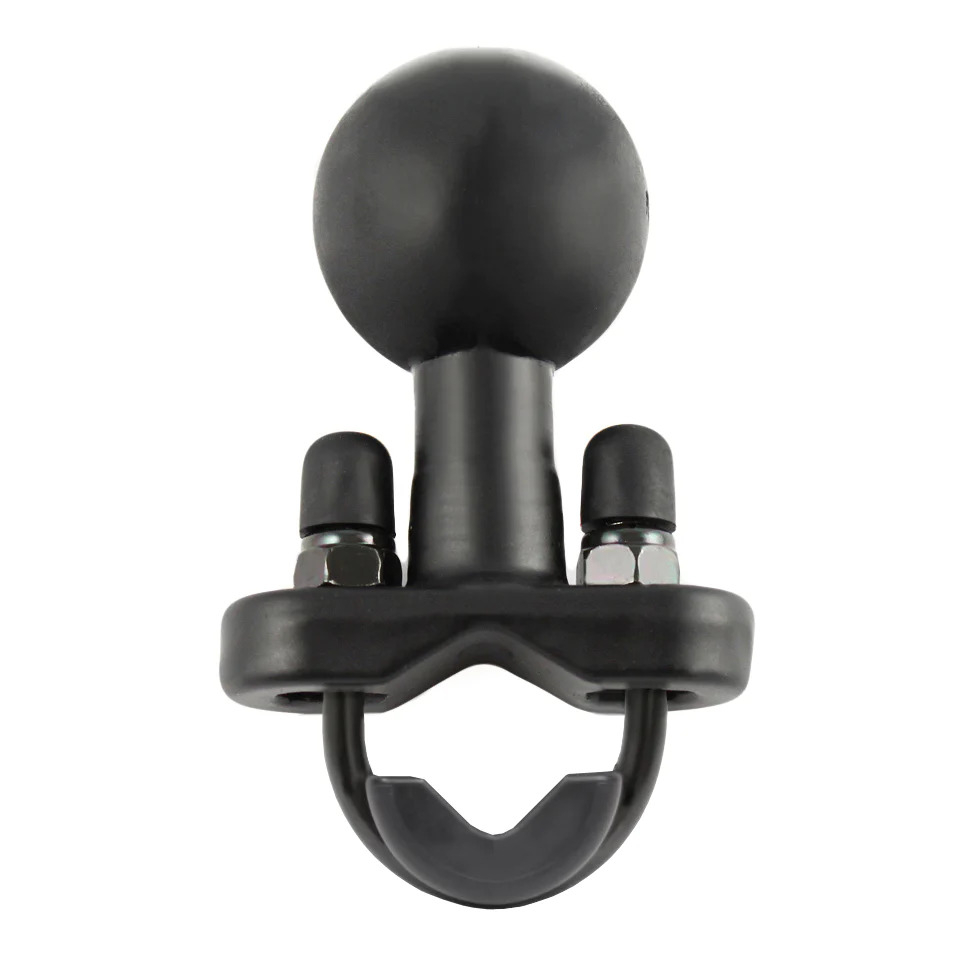

RAM® C Size Handlebar U-Bolt Base for 0.5" to 1.25" Rails with 1.5" Ball

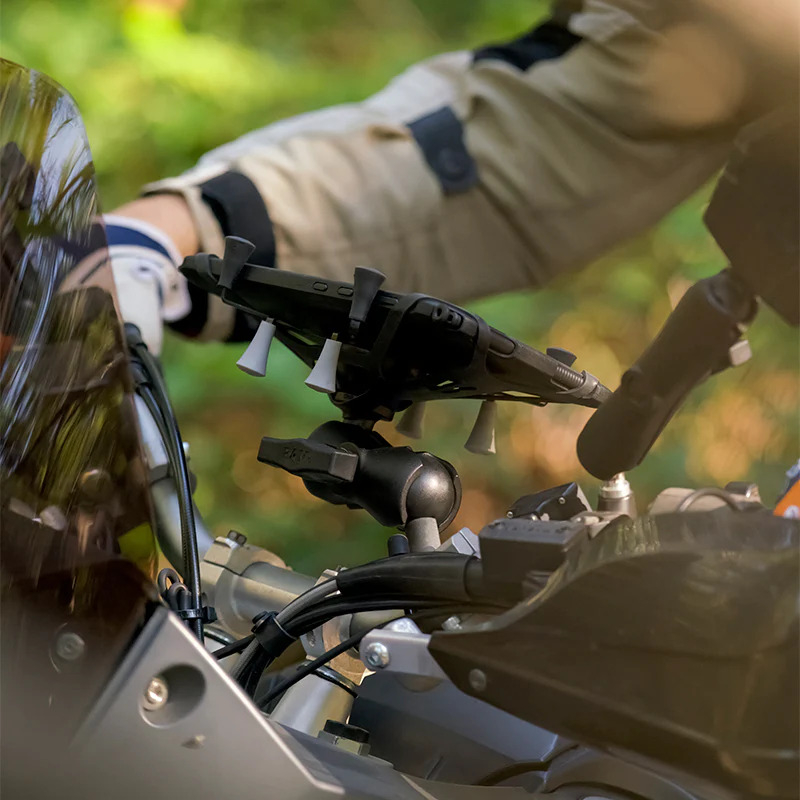

The RAM motorcycle handlebar base contains a 1.5" rubber ball designed to sit at right angles to the mounting rail. The zinc coated u-bolt accommodates rails in diameter from 0.5" to 1.25" in diameter. Included are black cover caps to be placed over the exposed ends of the u-bolt and a composite adapter that can narrow the rail to a minimum width of 0.5".

KEY FEATURES

Rail and bar base for UTVs and ATVs includes two different sizes of U-bolts and U-bolt spacer
Included C size 1.5" RAM® rubber ball allows for connection to any C size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
Backed by a lifetime warranty

SPECIFICATIONS

HARDWARE INCLUDED
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer

CLAMP RANGE: 0.5" - 1.25" diameter

BALL SIZE: C Size (1.5")

WEIGHT CAPACITY: Standard Use: 4 lbs / Heavy-Duty Use: 3 lbs

MATERIALS: Marine-grade aluminum

WEIGHT: 149g / 0.33 lb
