RAM® C Size Double 1.5" Ball Mount with Two Round Plates
$85.00
In Stock
RAM® C Size Double 1.5" Ball Mount with Two Round Plates

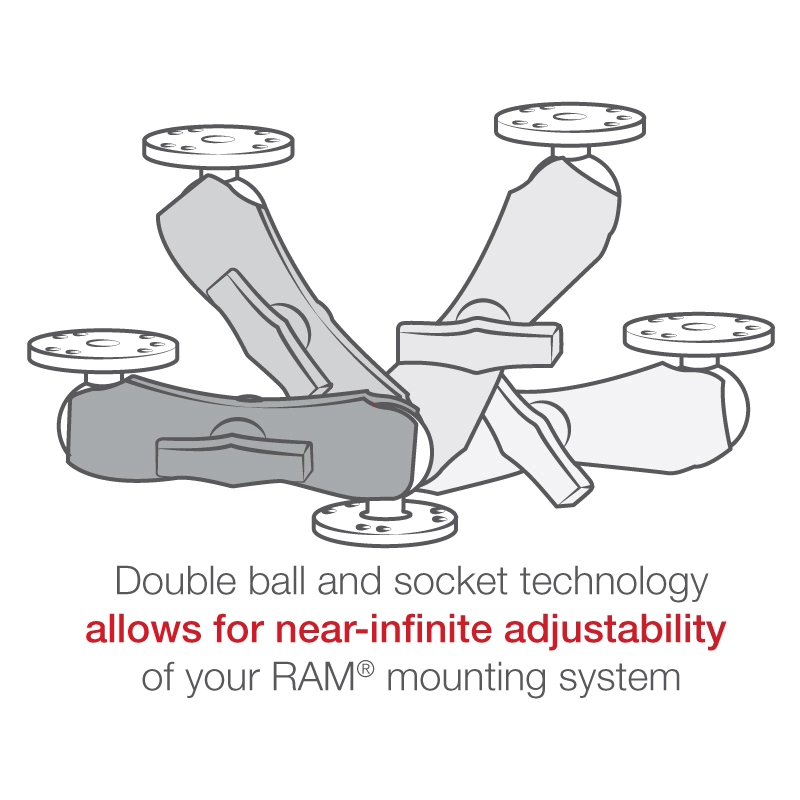

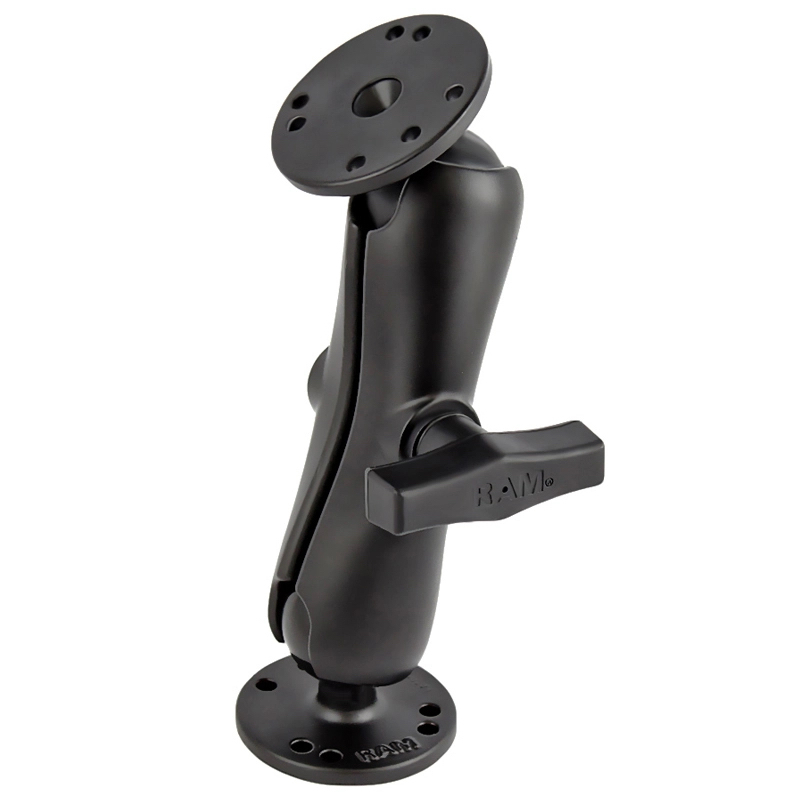

The RAM-101U consists of a medium length C size 1.5" double socket arm and two 2.5" diameter round ball bases that contain the universal AMPS hole pattern. The ball and socket system provides shock and vibration damping, and allows for near-infinite adjustability to achieve an ideal viewing and operating angle of your device.
KEY FEATURES
- Drill-down mounting solution; choose either round plate featuring the AMPS hole pattern for attachment to compatible device holders

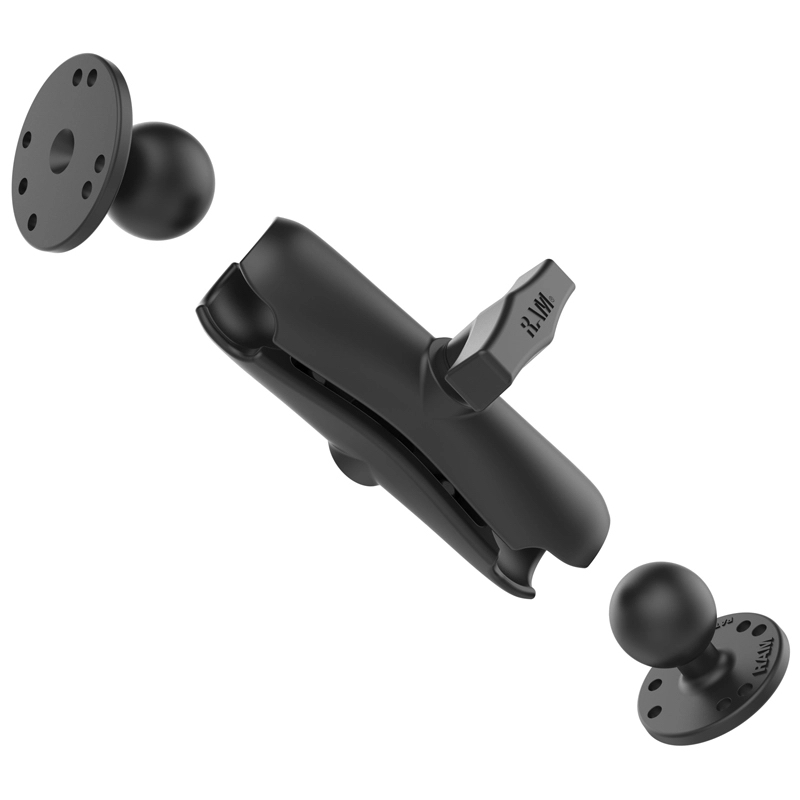

- Includes two round ball bases and C size medium length double socket arm; ball and socket technology allows for near-infinite adjustability
- Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments.
SPECIFICATIONS

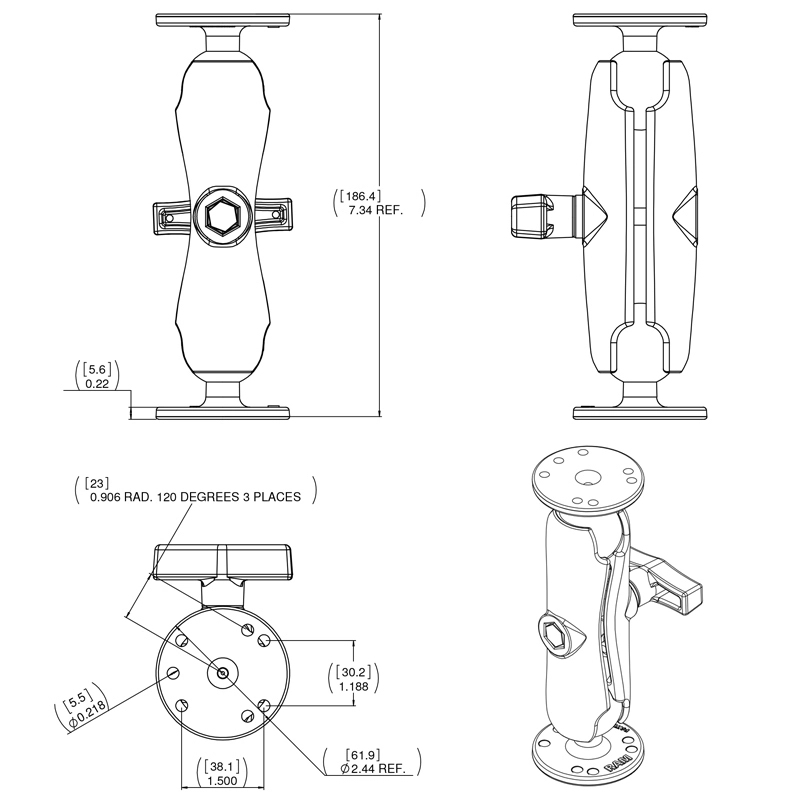

| OVERALL HEIGHT | 187mm / 7.35" |
| SOCKET-TO-SOCKET LENGTH | 118mm / 4.66" |
| HOLE PATTERN | 4-Hole AMPS: 1.181" x 1.496" 3-Hole 120-Degree: 1.812" Diameter |
| PLATE SIZE | 2.5" Diameter |
| BALL SIZE | C Size (1.5") |
| WEIGHT CAPACITY | Standard Use: 1.81kg / 4 lbs Heavy-Duty Use: 1.36kg / 3 lbs |
| MATERIALS | Marine-grade aluminum |
| WEIGHT | 498g |
(RAM-101U)
| SKU | RAM-101U |
| Barcode # | 793442001017 |
| Brand | Ram Mounts |
| Shipping Weight | 0.6000kg |
| Unit Of Measure | ea |
