RAM® 'C' Size 1.5" Double Ball Mount with Diamond Plate Adapter - Medium

RAM® 'C' Size 1.5" Double Ball Mount with Diamond Plate Adapter - Medium

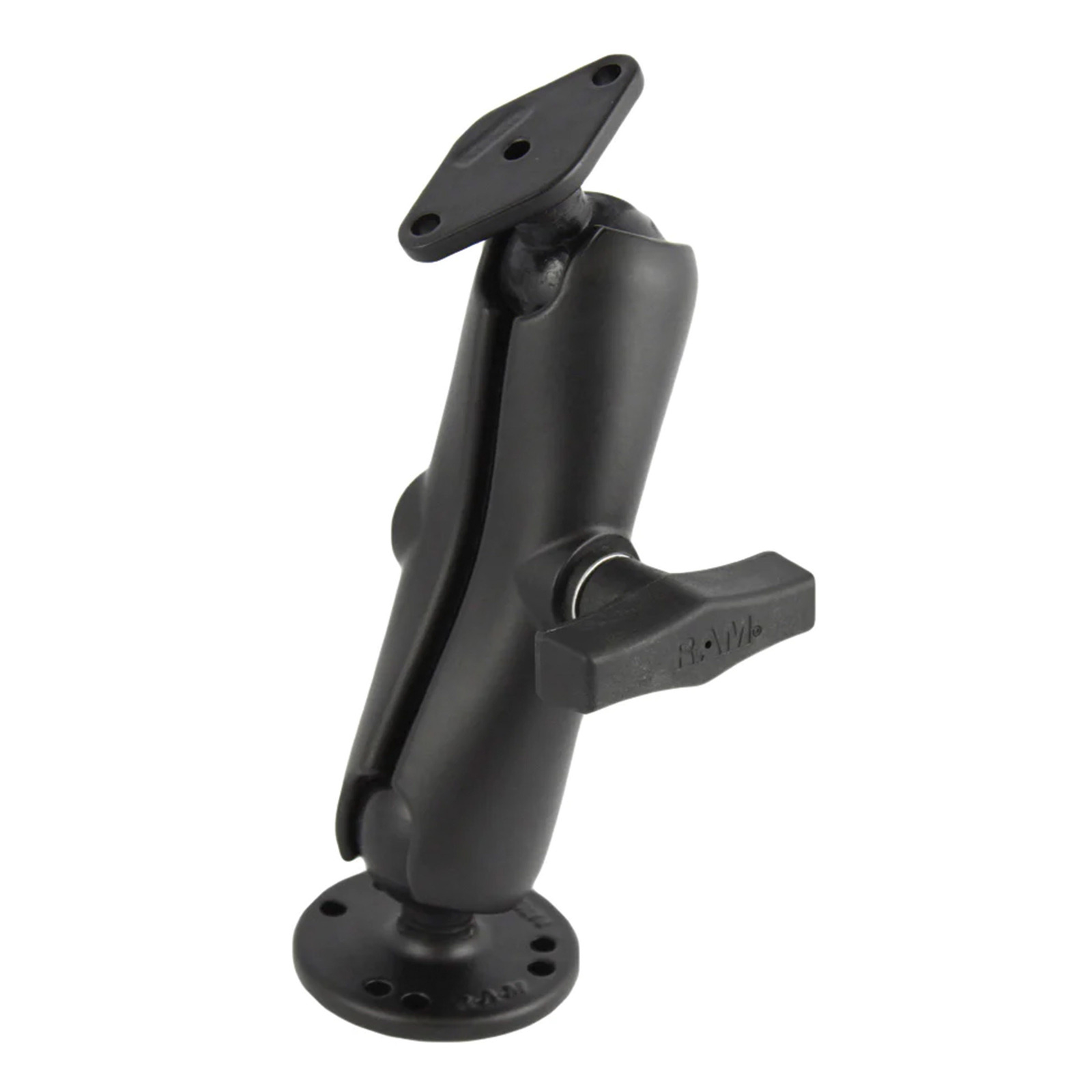

The RAM-138U consists of a 2.5" diameter round base that contains the universal AMPs hole pattern, double socket arm and diamond base adapter. The mount is designed with a 1.5" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The hole pattern found on the diamond base adapter will connect to most RAM cradles. The included RAM’s patented design dampens shock and vibration, helping to extend the life of your device.

KEY FEATURES

Drill-down mounting solution; choose the round plate featuring the AMPS hole pattern or diamond plate for attachment to compatible device holders
Includes round ball base. diamond base and C size medium length double socket arm; ball and socket technology allows for near-infinite adjustability
Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments.

SPECIFICATIONS

OVERALL HEIGHT	187mm / 7.35"
SOCKET-TO-SOCKET LENGTH	118mm / 4.66"
HOLE PATTERN	4-Hole AMPS: 1.181" x 1.496" 3-Hole 120-Degree: 1.812" Diameter
PLATE SIZE	2.5" Diameter
BALL SIZE	C Size (1.5")
WEIGHT CAPACITY	Standard Use: 1.81kg / 4 lbs Heavy-Duty Use: 1.36kg / 3 lbs
MATERIALS	Marine-grade aluminum
WEIGHT	498g
