RAM® 'C' Size 1.5" Ball Adapter with AMPS Plate to Suit Garmin AERA GPS

RAM® 'C' Size 1.5" Ball Adapter with AMPS Plate to Suit Garmin AERA GPS

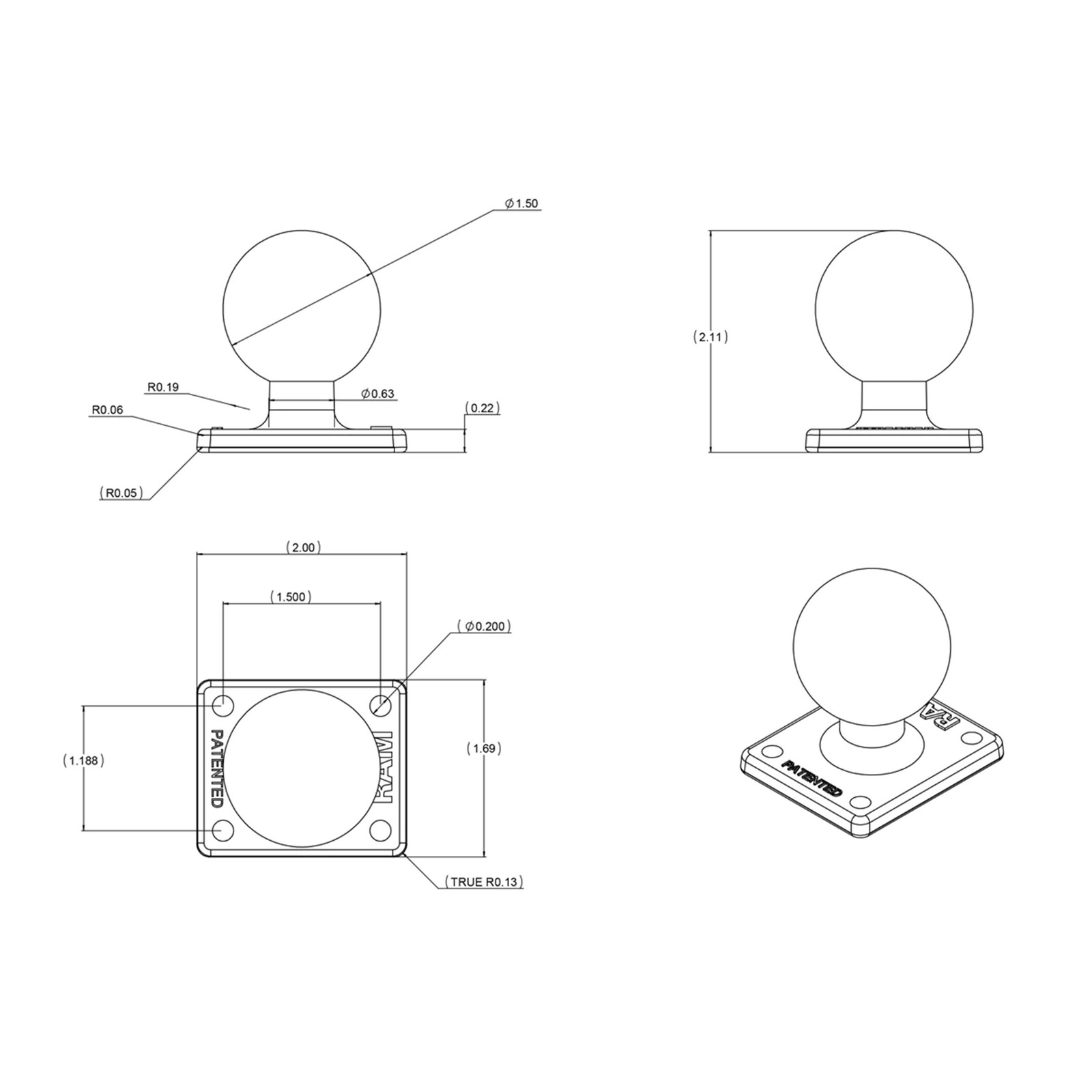

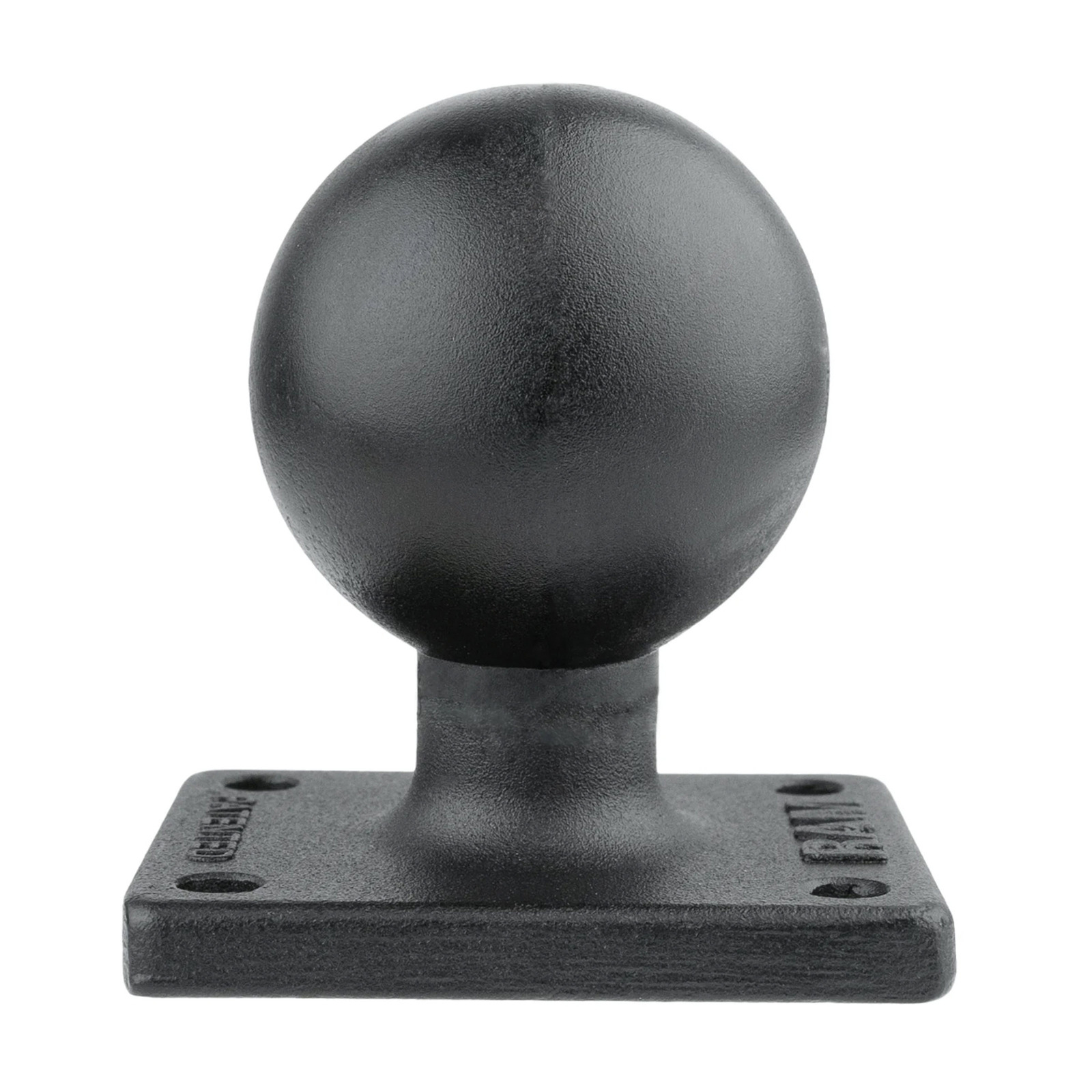

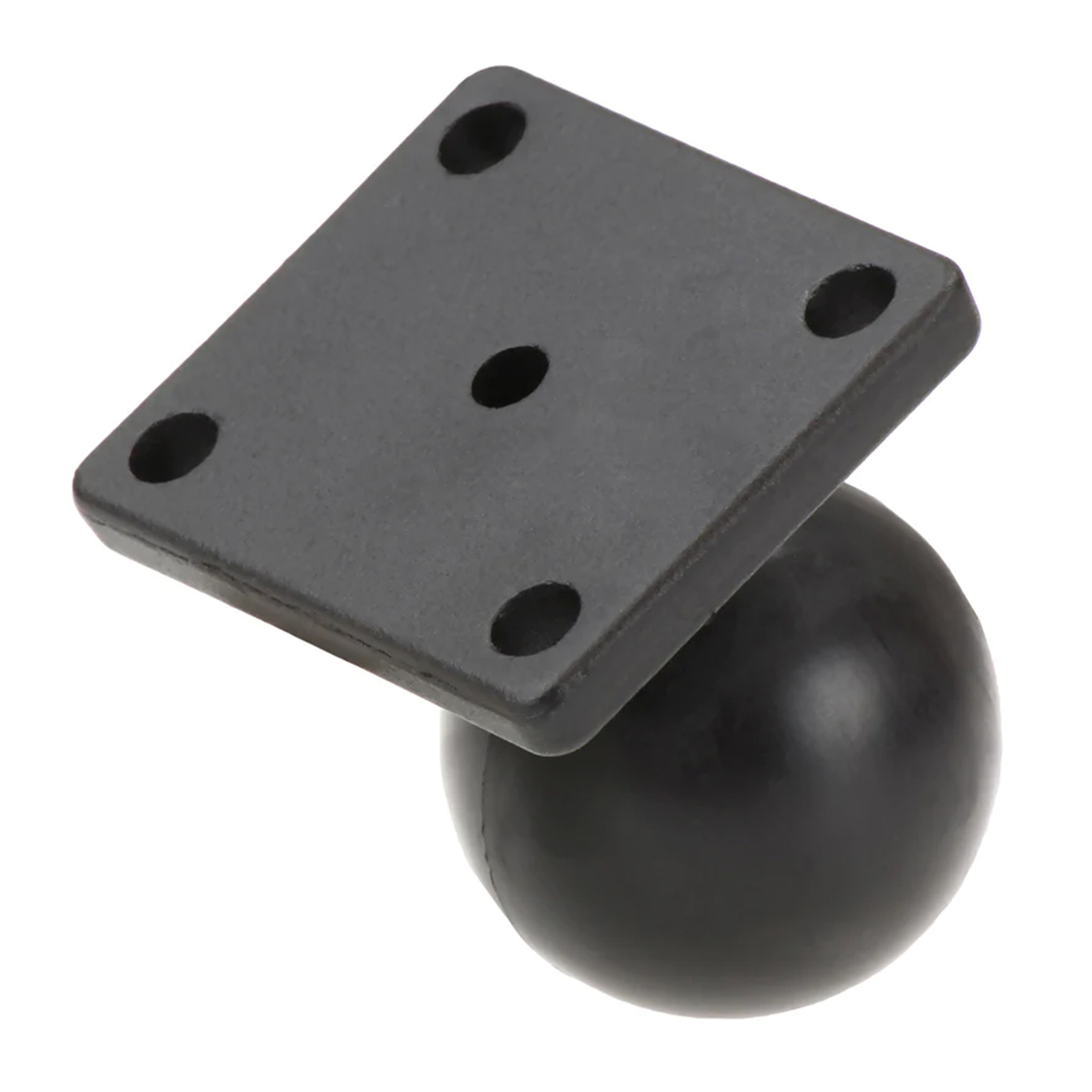

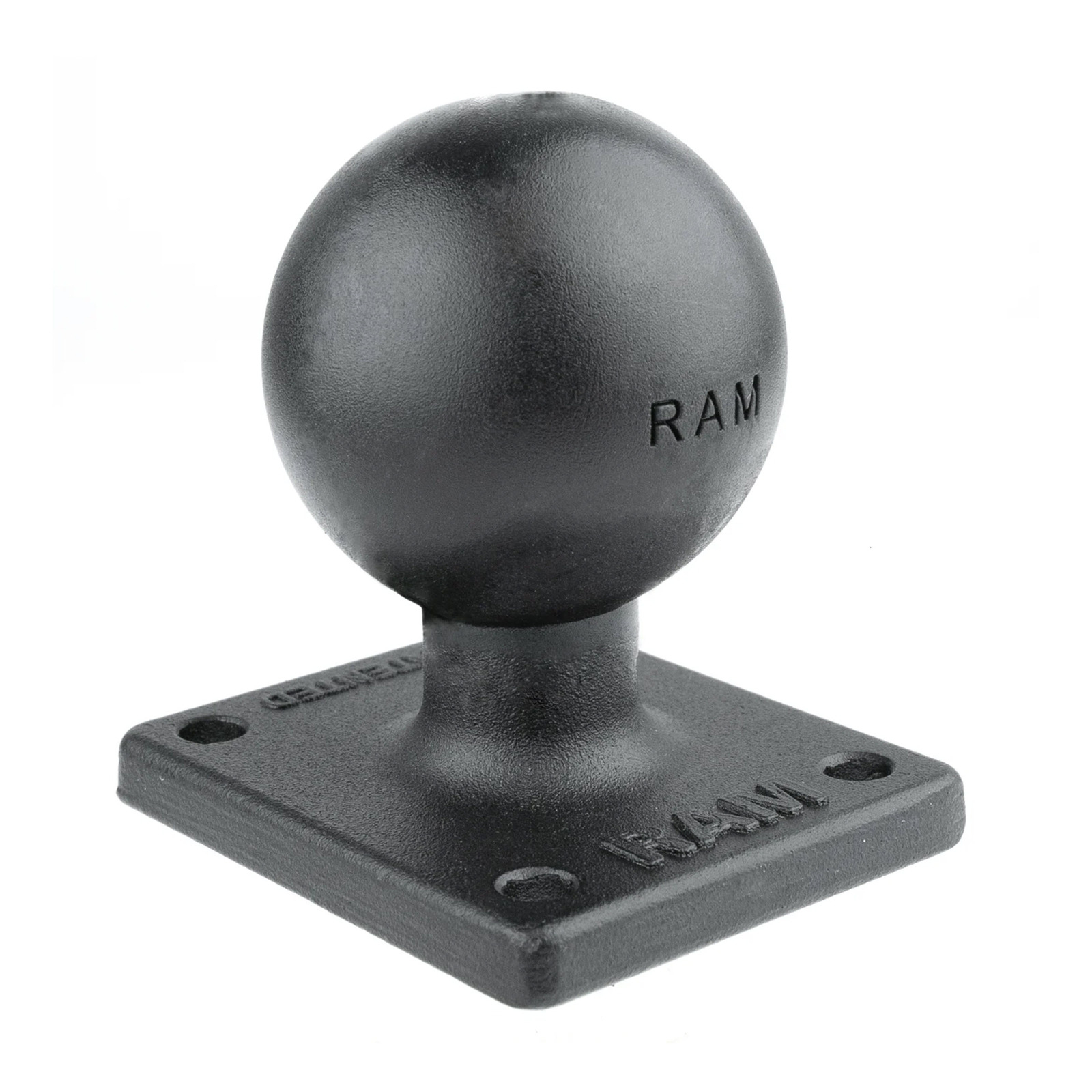

The RAM-347U consists of a 1.5" diameter rubber ball connected at right angles to a 2" x 1.7" square base. The base has four pre-drilled holes at each corner, making the universal AMPS hole pattern..

KEY FEATURES

Rectangular plate features the AMPS hole pattern for connection to a wide variety of devices
Included C size 1.5" RAM^® rubber ball allows for connection to any C size RAM^® double socket arm; ball and socket technology allows for near-infinite adjustability
Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments

SPECIFICATIONS

OVERALL HEIGHT	54mm / 2.11"
COMPATABILITY	Garmin AERA
HOLE PATTERN	4-Hole AMPS: 1.181" x 1.496" 3-Hole 120-Degree: 1.812" Diameter
PLATE SIZE	1.69" x 2" / 43mm x 51mm
BALL SIZE	C Size (1.5")
WEIGHT CAPACITY	Standard Use: 1.81kg / 4 lbs Heavy-Duty Use: 1.36kg / 3 lbs
MATERIALS	Marine-grade aluminum
WEIGHT	95g
