RAM® 75x75mm VESA Plate with C Size 1.5" Ball

$45.00

inc GST

Product Description

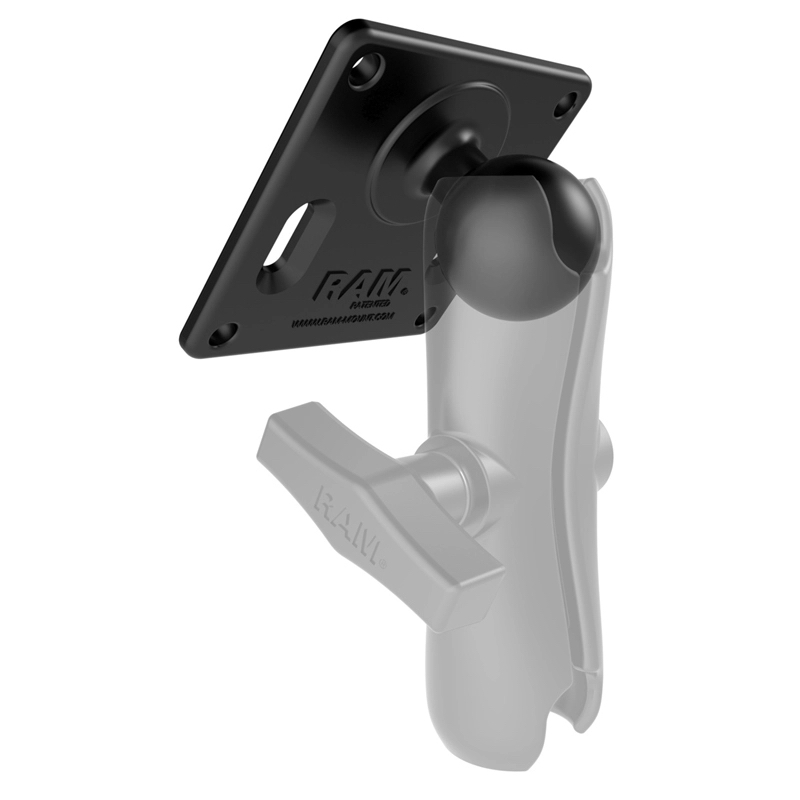

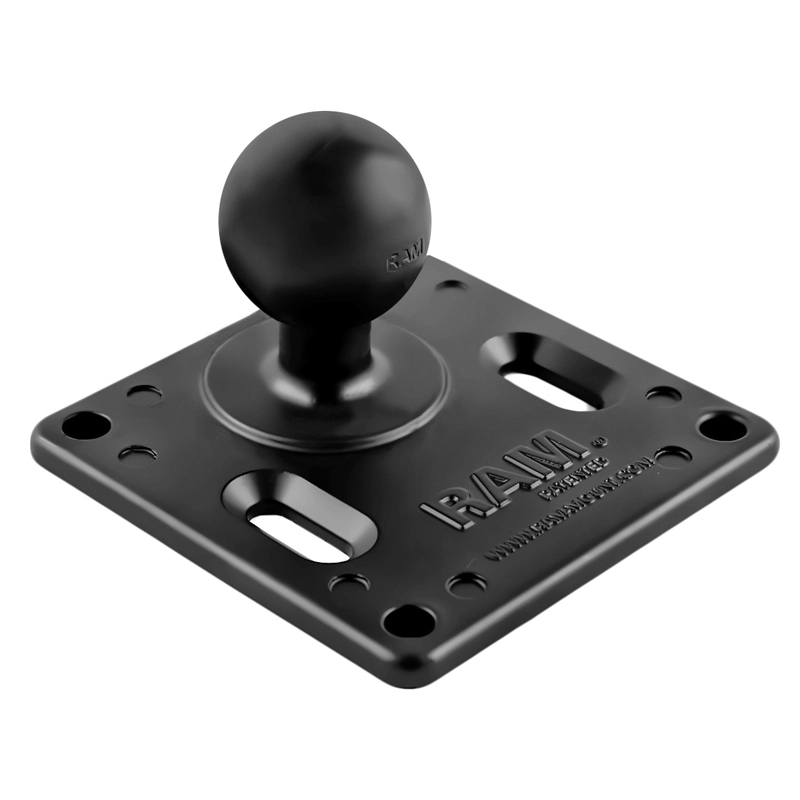

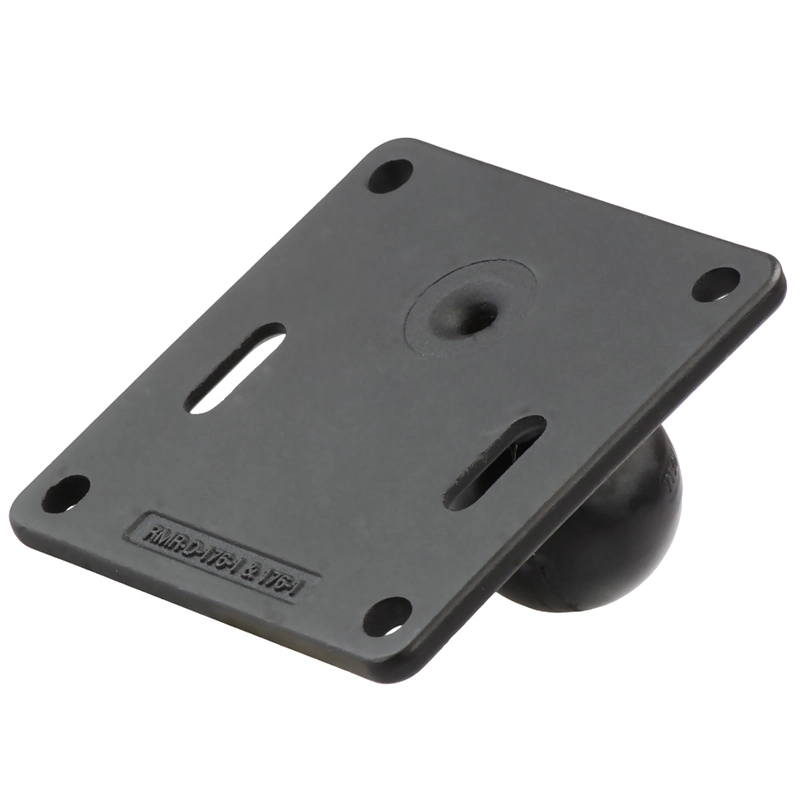

RAM® 75x75mm VESA Plate with C Size 1.5" Ball

The RAM-2461U consists of a C size 1.5" rubber ball connected to a 3.625" square plate featuring a 75mm x 75mm VESA hole pattern. The rubber ball is positioned 0.88" from the center of one edge. The RAM-2461U will attach to all RAM® C size double socket arms.

KEY FEATURES

Square plate features the VESA hole pattern for connection to a wide variety of devices
Included C size 1.5" RAM® rubber ball allows for connection to any C size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
Made of Powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
Backed by a lifetime warranty

SPECIFICATIONS

HOLE PATTERN: 75 x 75mm VESA
PLATE SIZE: 9.21cm x 9.21cm
BALL SIZE: C Size (1.5")
WEIGHT CAPACITY: Standard Use: 1.81 kg / Heavy-Duty Use: 1.36 kg
MATERIALS: Marine-grade aluminum
WEIGHT: 181g

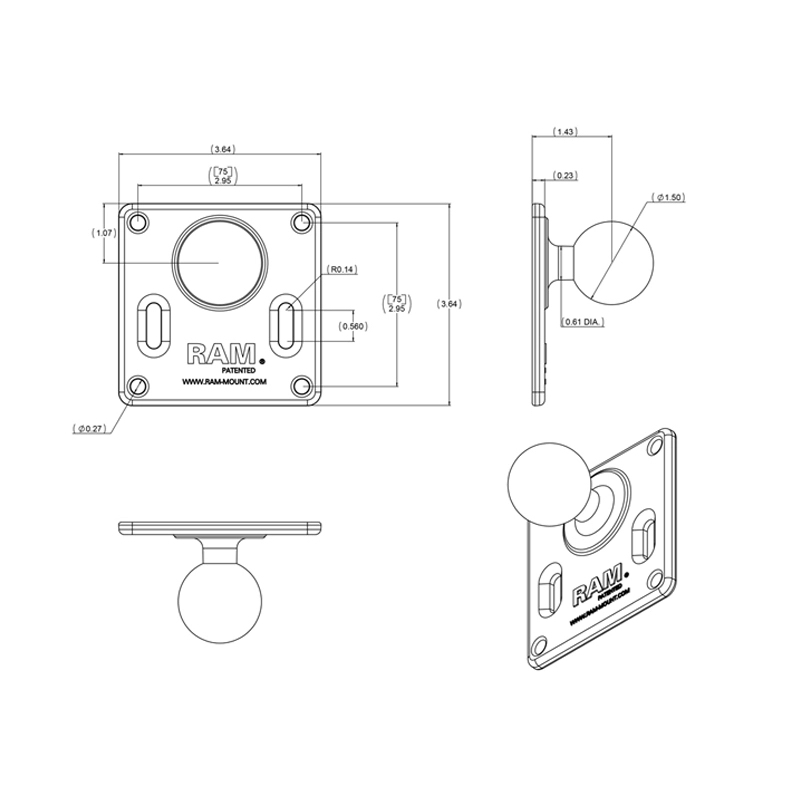

RAM MOUNTS VESA PLATE 75MM x 75MM DRAWING FILE

RAM MOUNTS MATERIAL HANDLING CATALOG

Specifications
