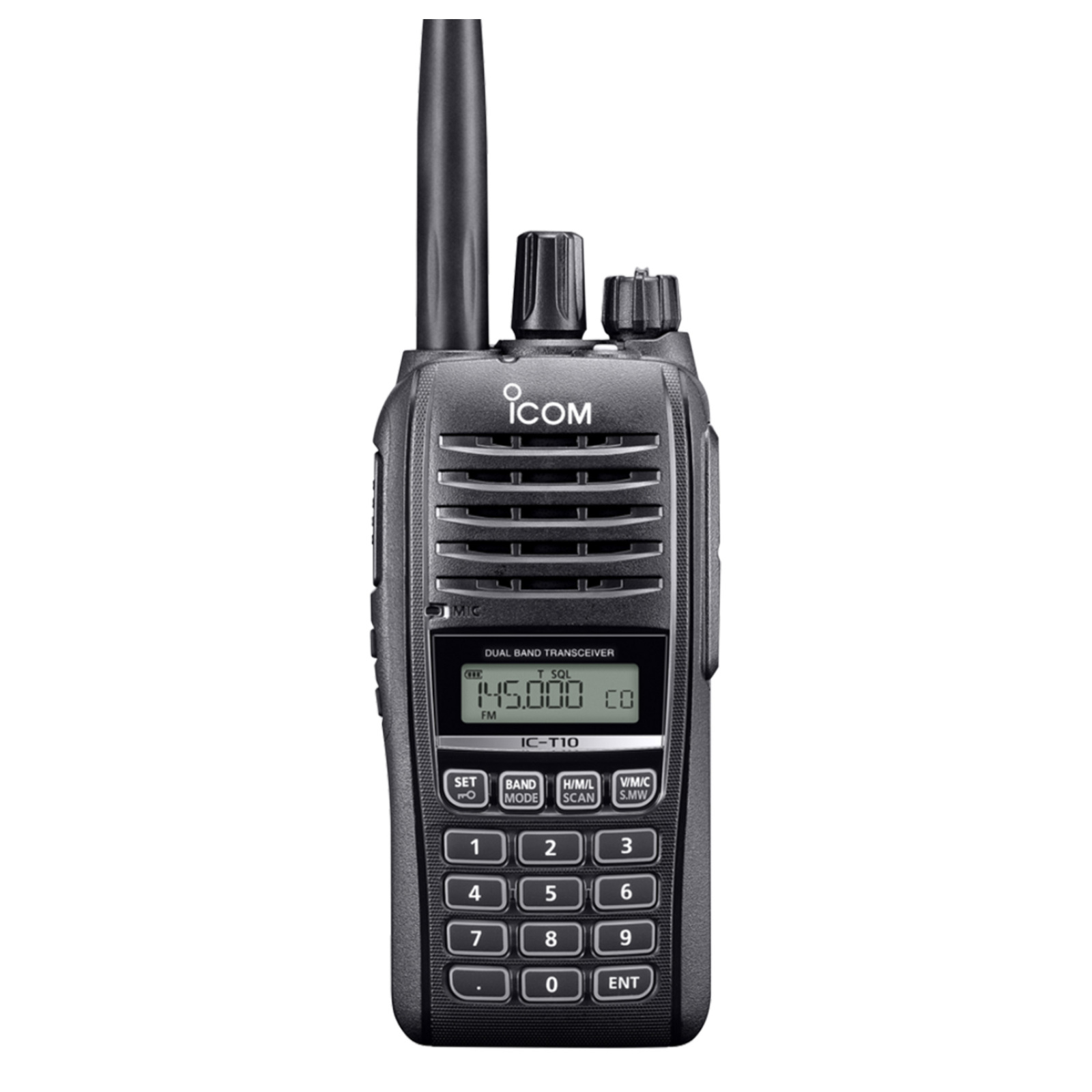

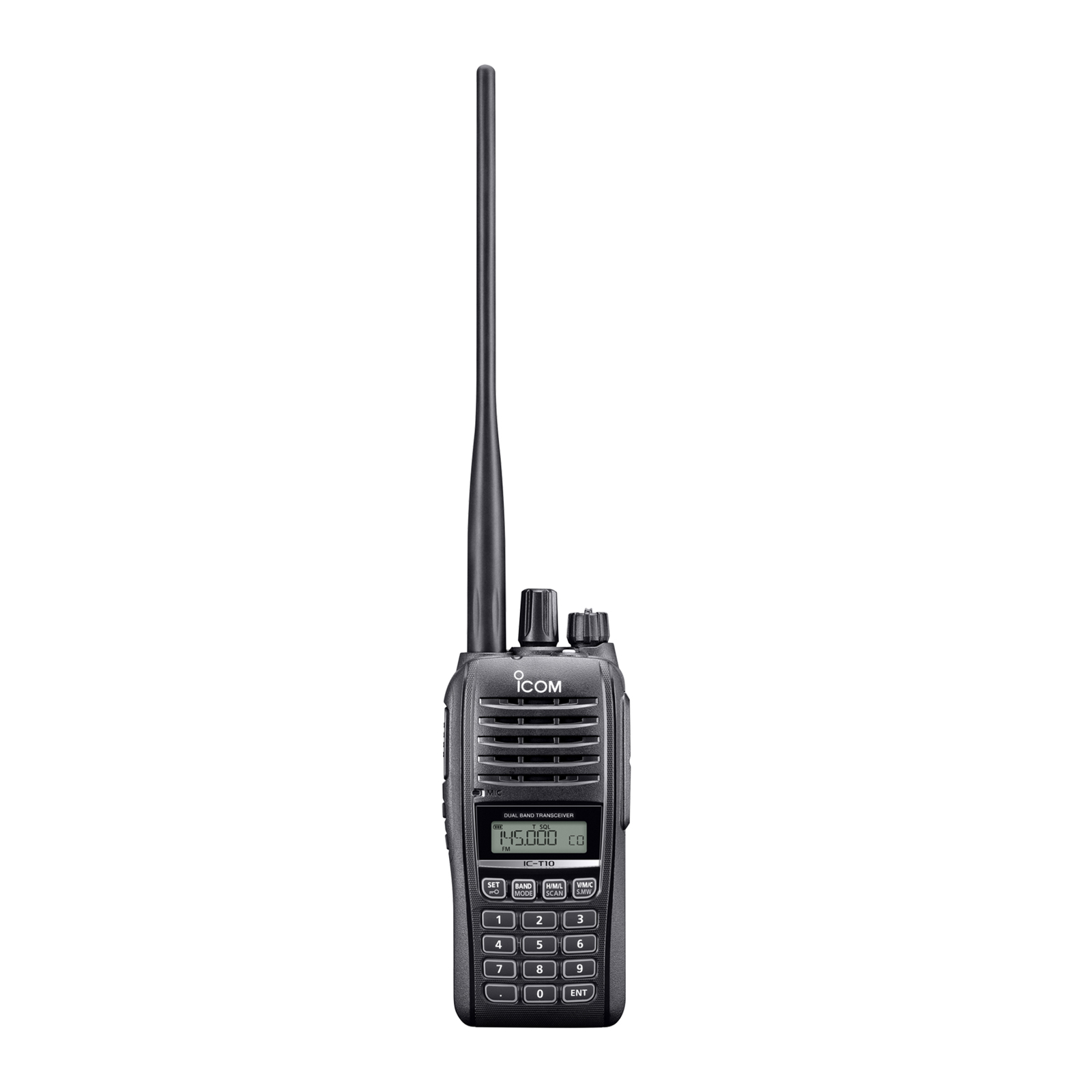

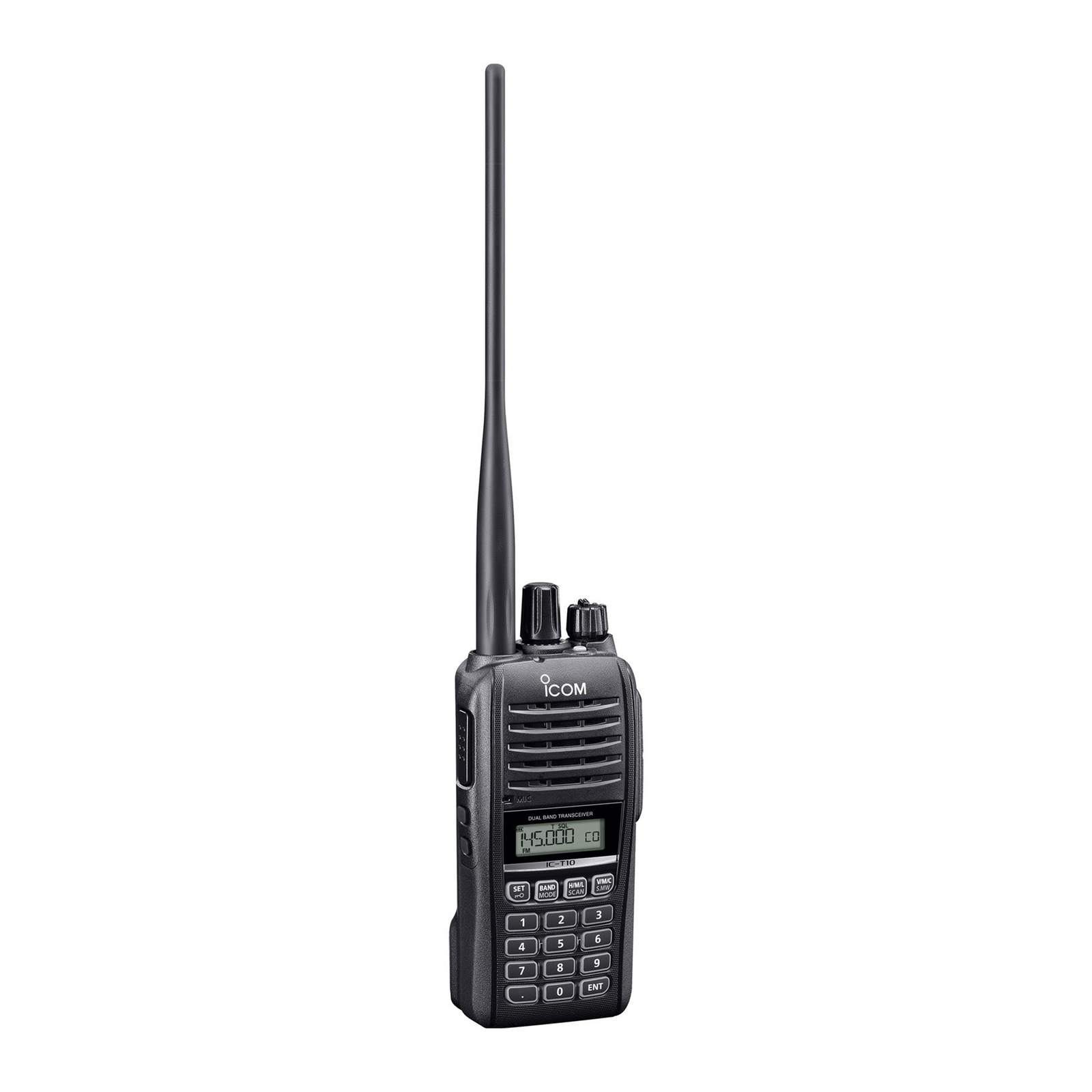

Icom IC-T10 VHF/UHF Dual Band Handheld Transceiver

Rugged, Compact Dual Bander with Simple Operation and Great Performance (IP67)

IMPORTANT - AN AMATEUR RADIO LICENCE IS REQUIRED TO OPERATE THIS EQUIPMENT

PURCHASERS MUST PROVIDE A COPY OF THEIR AMCA AMATEUR RADIO LICENCE BEFORE SHIPPING

THIS RADIO IS NOT SUITABLE FOR VHF AIRBAND TRANSMISSIONS

VHF AIRBAND RADIOS - IC-A16 / IC-A25CE / IC-A25NE

TRANSMISSION FREQUENCIES

TX: VHF 144–146

TX: UHF 430–440 MHz* (*Guaranteed range)

RX: VHF 136–174

RX: UHF 400–479 MHz* (* Working range)

FM broadcast: 76–108 MHz

**the IC-T10 will only transmit and receive on the above frequencies.

KEY FEATURES

5W RF Output in 144 and 430 MHz

1500 mW Loud and Intelligible Audio

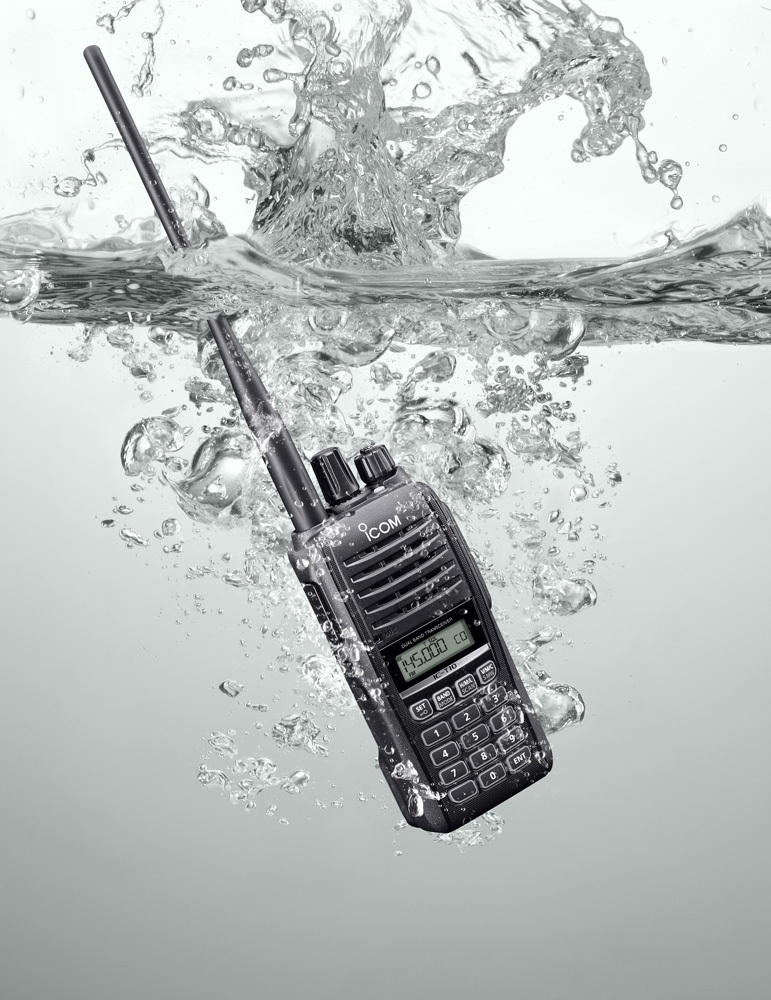

IP67 Dust-tight and Waterproof

Home Button on the Top Panel for Quick Access to Calling Channel

Optional HM-222HLWP, Loud Audio SP-MIC

FM Broadcast Receiver

Up to 11 Hours* Operating Time

* 11/10 hours (VHF/UHF, approx.) with BP-280 battery at 1:1:8 duty ratio (Power save ON)

OTHER FEATURES

DC power operation with optional AD-149H
Free CS-T10 downloadable programming software
Built-in CTCSS/DTCS for repeater operation
Total of 208 memory channels with 6 character channel name
16 DTMF autodial memories
Priority, Program, Memory, Skip, and Tone Scan
Direct-conversion system eliminates IF stages

SUPPLIED ACCESSORIES

BP-280 Battery Pack
FA-S270C Antenna
MB-133 Belt Clip
BC-213 Rapid Charger
AC Adapter (BC-242 or BC-123SA/SE)

USER MANUALS

ICOM IC-T10 - Basic User Manual

ICOM IC-T10 - Advanced User Manual

ICOM IC-T10 - Specifications Brochure

(IC-T10)

IC-T10 SPECIFICATIONS

GENERAL

			IC-T10
Frequency Coverage	Export Version	TX	144–146, 43–440 MHz*²(Working range)
		RX	136–174, 400–479 MHz*²(Working range)
		FM broadcast	76–108 MHz
Number of Channels			208 channels (including 2 call and 6 scan edges)
Type of Emission			F2D, F3E (FM)
Frequency Stability			±2.5 ppm (–20°C to +60°C on the basis of 25°C )
Power Supply Requirement External DC Power			7.2 V DC nominal 10–16 V DC (with AD-149H)
Current Drain (approx.)		Tx High	Less than 2.5 A
		Rx Max. audio	Less than 600 mA
Antenna Impedance			50 Ω (SMA)
Operating Temperature Range			–20°C to +60°C
Dimensions (W × H × D, Projections not included)			52.2 × 111.8 × 30.3 mm (with BP-280)
Dust & Water			IP67 (Dust-tight and waterproof protection)
Weight (Approximate)			278g (with BP-280 and antenna)

*2 Guaranteed range 144–148, 430–440 MHz

TRANSMITTER

		IC-T10
Output Power		5 W, 2.5 W, 0.5 W
Max. Frequency Deviation		±5.0 kHz/±2.5 kHz (W/N)
Spurious Emissions		Less than –60 dBc (High, Mid), Less than –13 dBm (Low)
Ext. Microphone Connector		3-conductor 2.5 (d) mm (1/10ʺ)/2.2 kΩ

RECEIVER

		IC-T10
Receiver sensitivity		Less than 0.18 μV (at 12 dB SINAD)
Squelch sensitivity		Less than 0.18 μV (at squelch threshold)
Adjacent channel selectivity		More than 55 dB (FM, 25 kHz) More than 50 dB (FM Narrow, 12.5 kHz)
Spurious response		More than 60 dB
Audio output power (at 5% distortion, 8 Ω load)	Internal SP	1500 mW (typical)
	External SP	450 mW (typical)
	HM-222HLWP	1500 mW (typical)
Ext. speaker connector		3-conductor 3.5 (d) mm (1/8ʺ)/8 Ω
