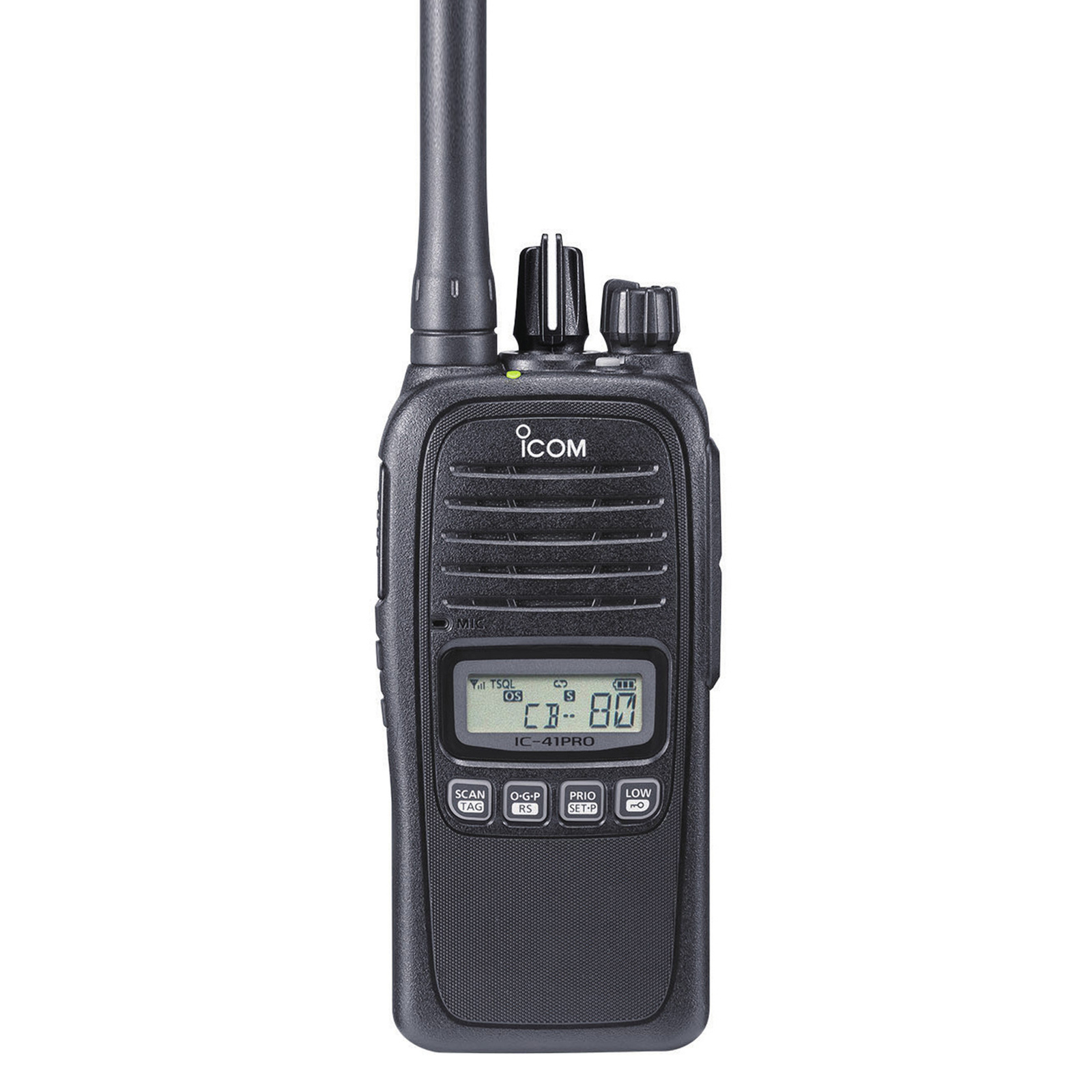

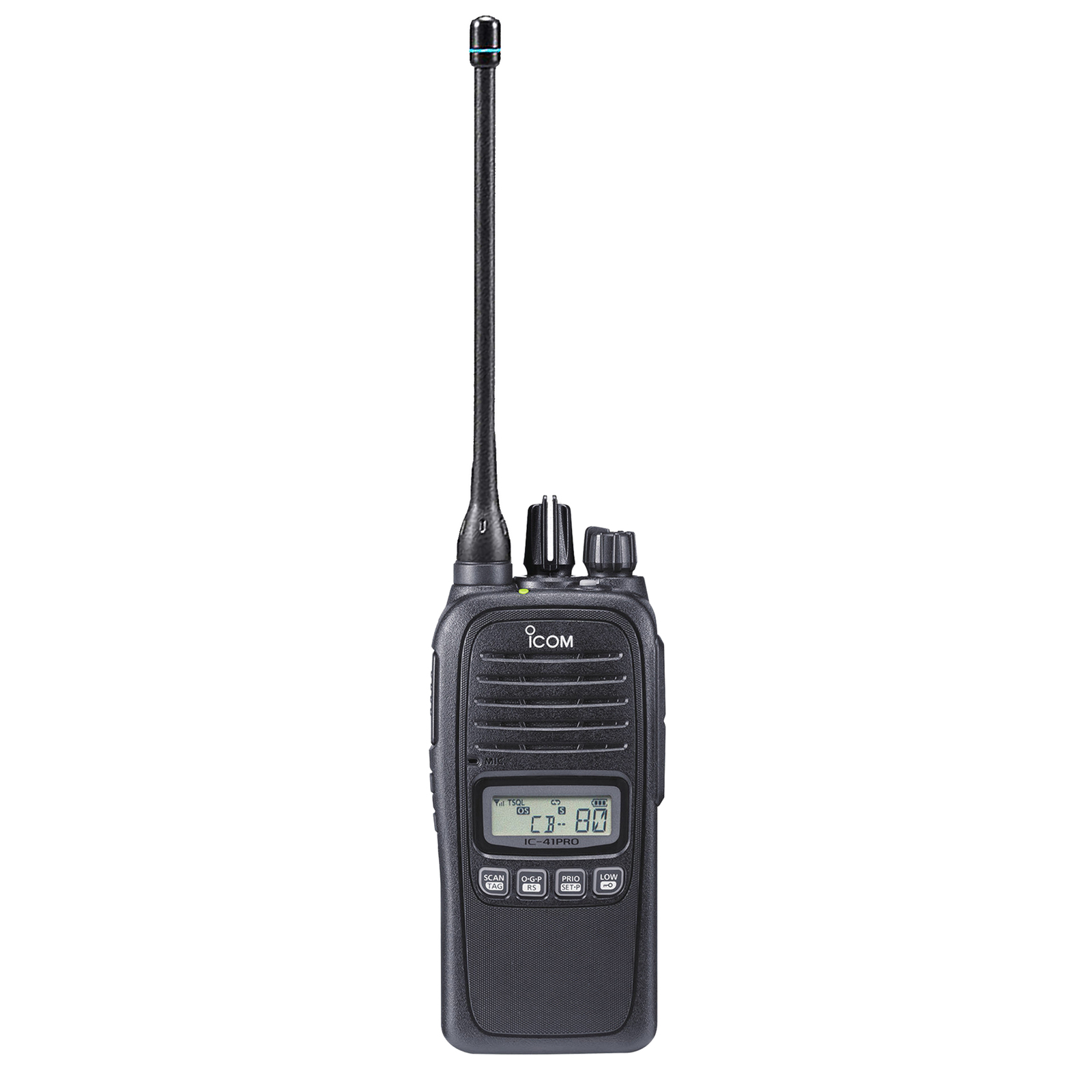

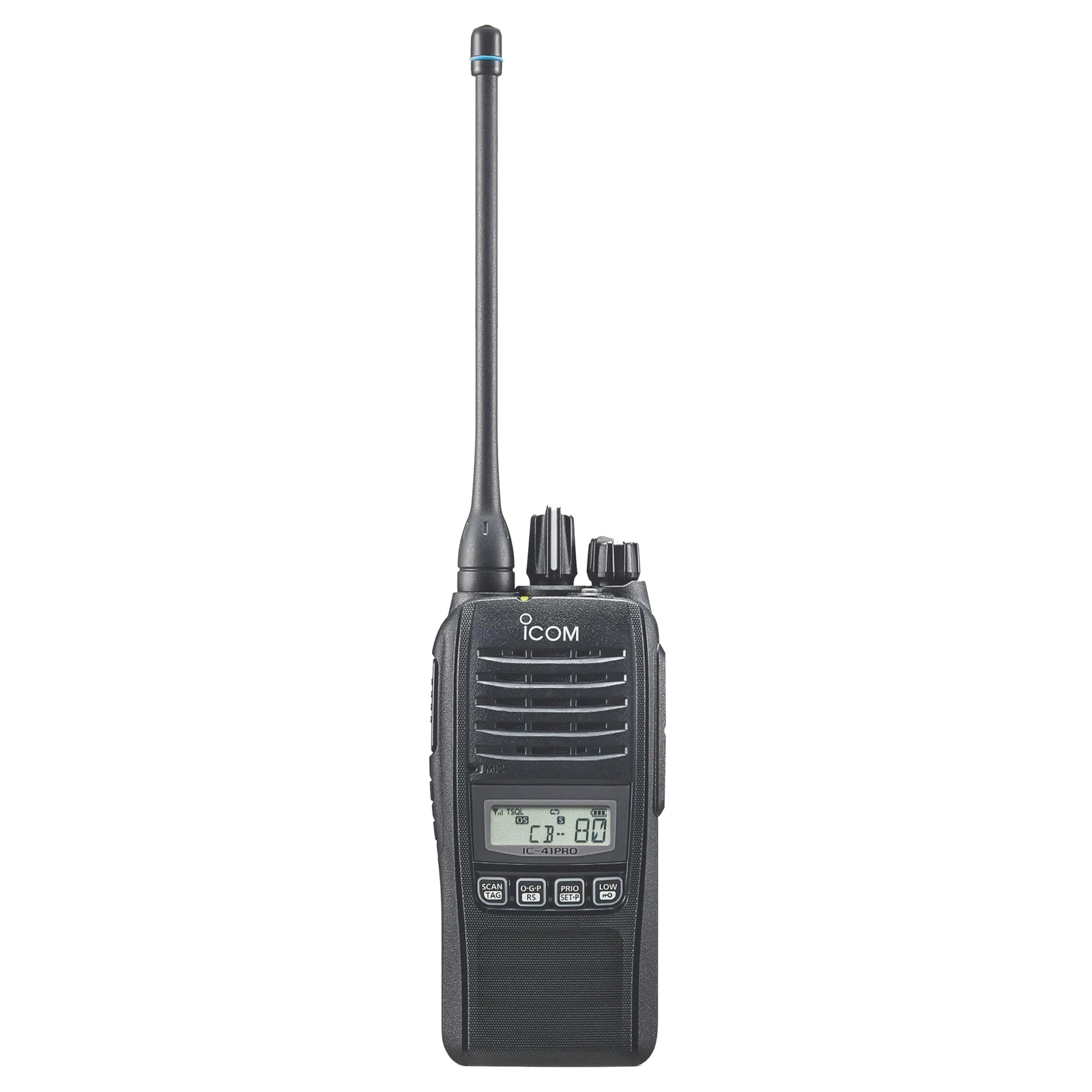

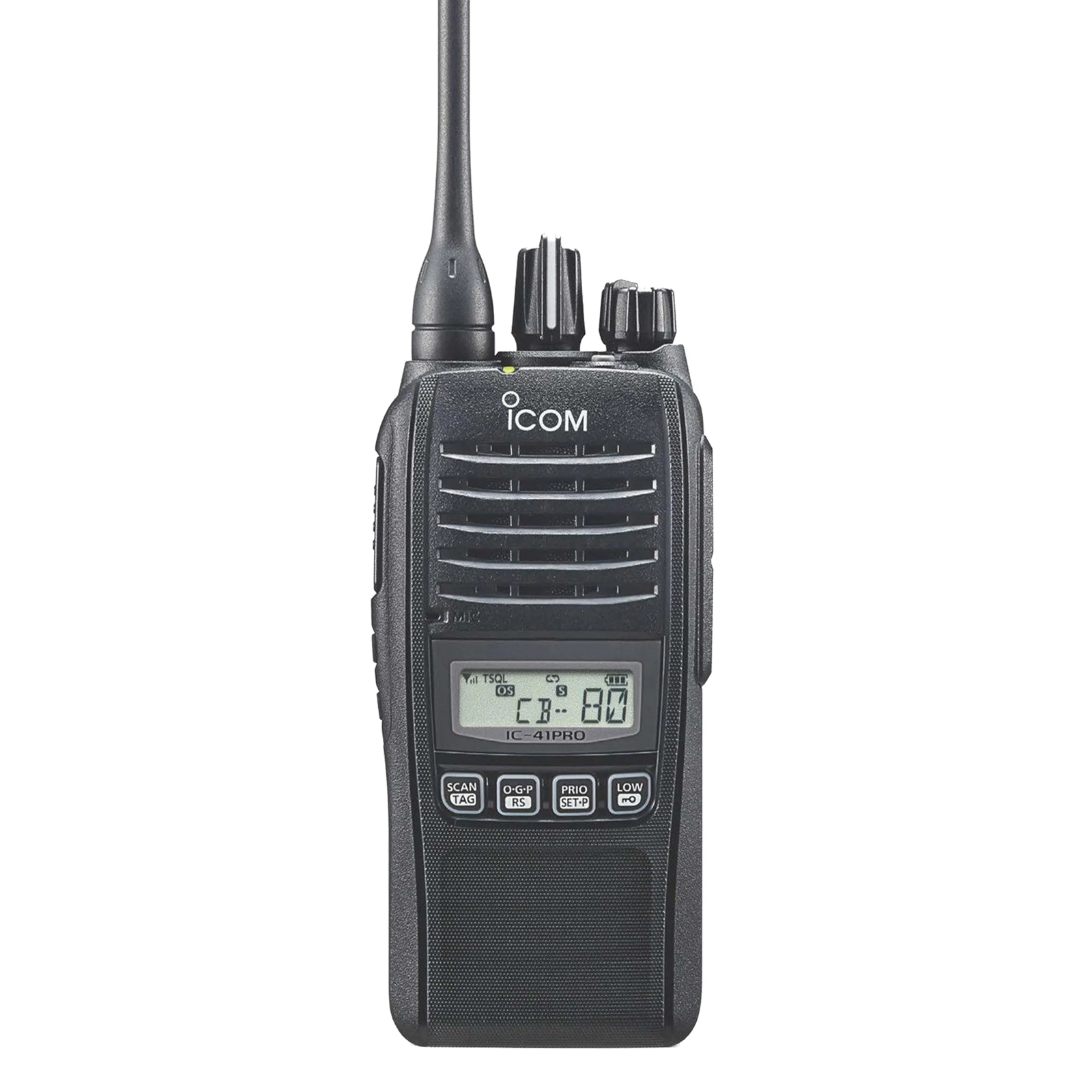

Icom IC-41PRO Waterproof Handheld UHF CB Radio - Black

Other outstanding features



• Smart Ring and Automatic Transponder acknowledges if other Icom CB transceivers received your call or are within range

• Pocket beep function audibly alerts when you receive signals from specified stations

• Optional HM-168LWP waterproof speaker-microphone available

• Power save function

• Radio stun function

• Low battery indicator and alert tone

• Auto power off function

• Monitor function

• PTT hold function

• Key lock function

• Auto power off

• RX frequency setting**

• Roger beep

• Adjustable squelch level

• Scrambler**



**Must be enabled by dealer or via CS-41PRO software

Receiver



• Sensitivity: 0.25μV typ. @ 12 dB SINAD

• Audio power output 1.5 W typ. @ 5 % dist. with 8Ω

• Adjacent channel selectivity 40 dB min 56 dB typ.(N) 70 dB min 73 dB typ.(W)

• Spurious response 70 dB min

• Intermodulation 70 dB min 73 dB typ.

• Hum and Noise 34 dB min 43 dB typ. (N) (without CCITT Filter ) 40 dB min 49 dB typ. (W)

• Squelch sensitivity 0.25μV typ.



General



• Frequency range 476.4250 MHz to 477.4125 MHz AUS CB 450 MHz to 520 MHz Private/Receive Only

• Number of conventional channels: 128 ch

• Type of emission: W: 16K0F3E (25.0kHz) AUS CB N: 8K50F3E (12.5kHz) AUS CB

• Antenna impedance: 50 ohms

• Input impedance (MIC): 2.2k ohms

• Output impedance (audio): 8 ohms

• Intermediate frequency: 1st 46.35 MHz, 2nd 450 kHz

• Operating temperature range: – 30o C to + 60o C

• Power supply voltage: 7.5 V DC

• Current drain (approx.) Receive stand-by 80 mA Receive max.audio 300 mA (INT SP) Transmit Hi (5W) 1.7 A AUS CB

• Dimensions: W 52.2 x H 111.8 x D 30.3mm (with BP-280)

• Weight: 270 grams (with BP-280 and MB-133)



Transmitter



• Rated output power 5W

• Modulation: Variable reactance frequency modulation

• Maximum permissible deviation ±2.5 kHz (N) ±5.0 kHz (W)

• Frequency error: ±2.5 ppm

• Spurious emissions: 70 dB min

• Adjacent channel power: 60 dB min 69 dB typ. (N) 70 dB min 74 dB typ. (W)

• Audio harmonic distortion: 1.0% typ. @ AF 1 kHz 40 % Deviation (W) 1.5% typ. @ AF 1 kHz 40 % Deviation (N)

• FM Hum and Noise 34 dB min 40 dB typ. (N) (Without CCITT FILTER) 40 dB min 46 dB typ. (W)

• Limiting characteristic of modulator: 60 % ~ 100 % of max. deviation

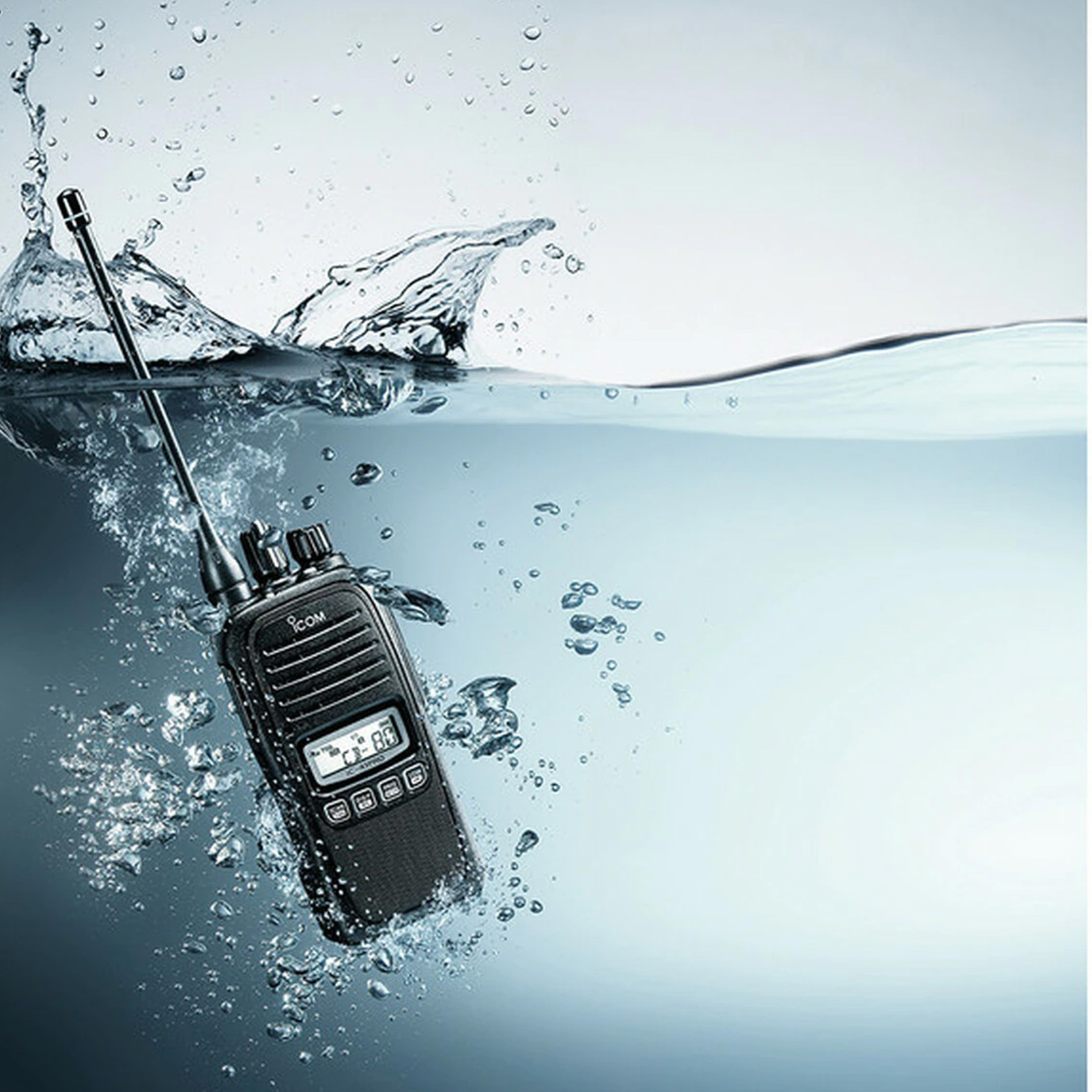

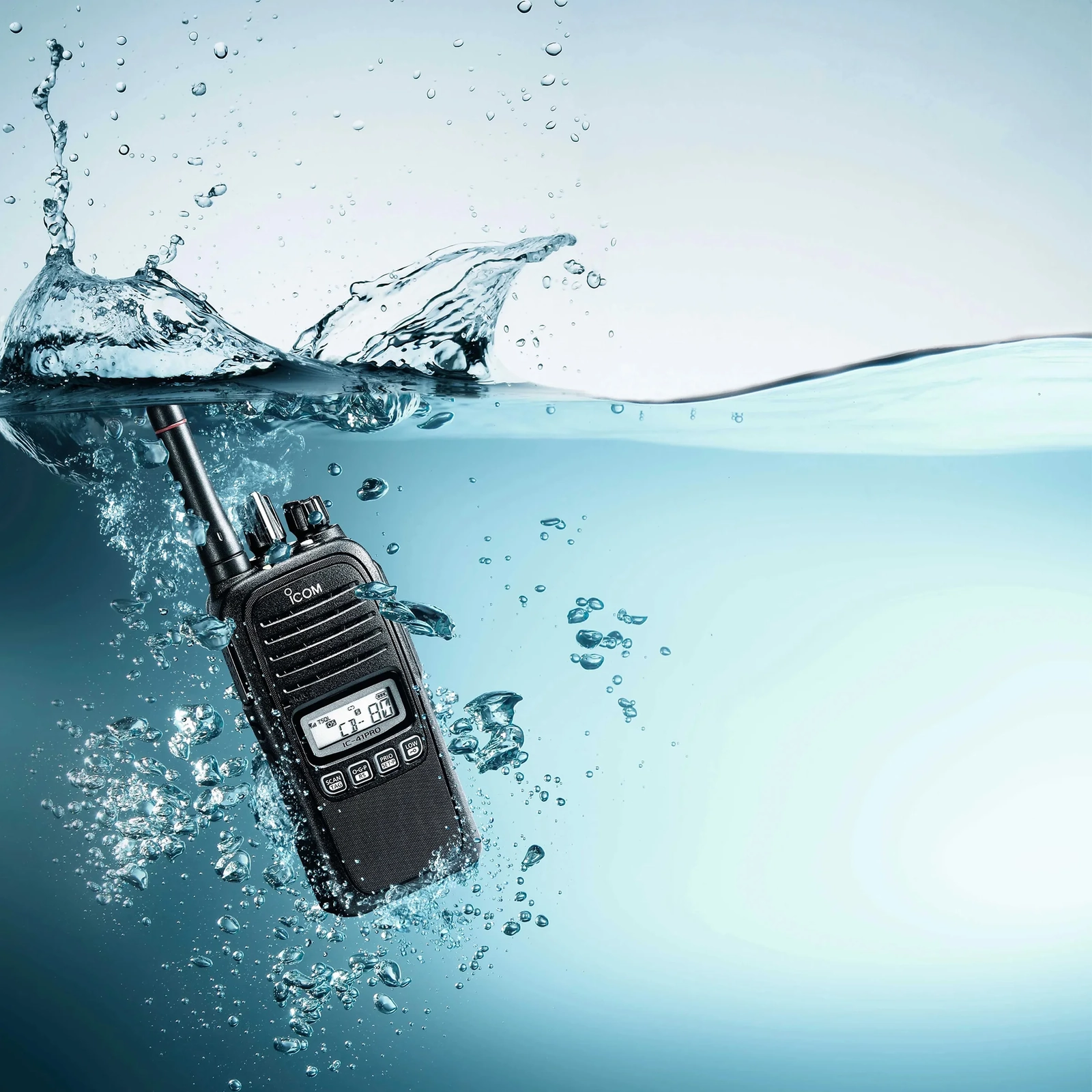

US Military specifications & IP rating Standard MIL 810G Method Procedure Low Pressure 500.5 I. II High Temperature 501.5 I. II Low Temperature 502.5 I. II Temperature Shock 503.5 I Solar Radiation 505.5 I Rain Blowing/Drip 506.5 I. III Humidity 507.5 – Salt Fog 509.5 – Dust Blowing 510.5 I Immersion 512.5 I Vibration 514.6 I Shock 516.6 I. IV Also meets equivalent MIL-STD-810-C, -D, -E and -F Ingress Protection Standard Dust & Water IP67 (Dust-tight and waterproof protection)



SKU	IC-41PRO
Barcode #	731797033963
Brand	Icom
Shipping Weight	1.0000kg
Unit Of Measure	ea
