H3R Aviation 1.25 lb. Halon Fire Extinguisher

$710.00

inc GST

Product Description

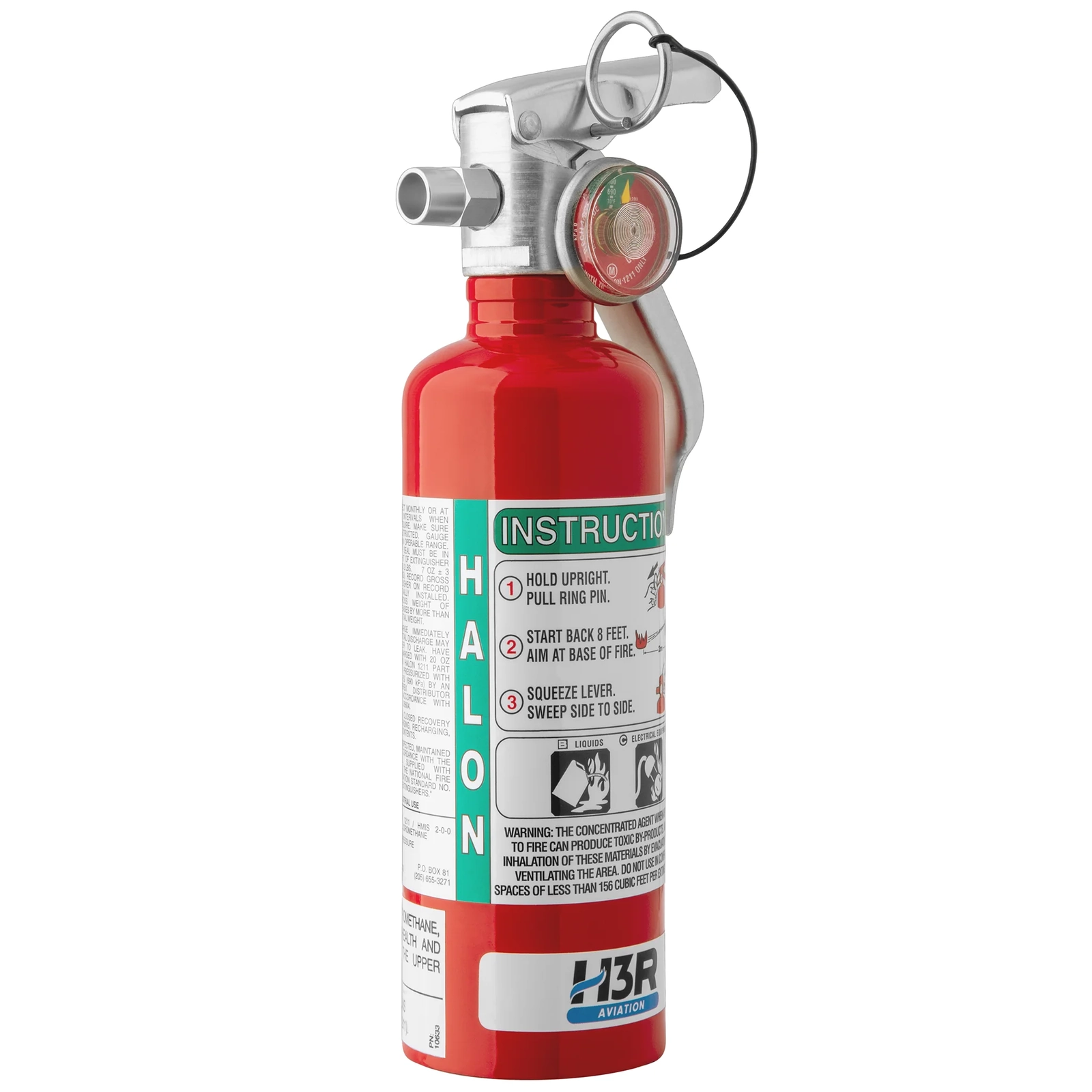

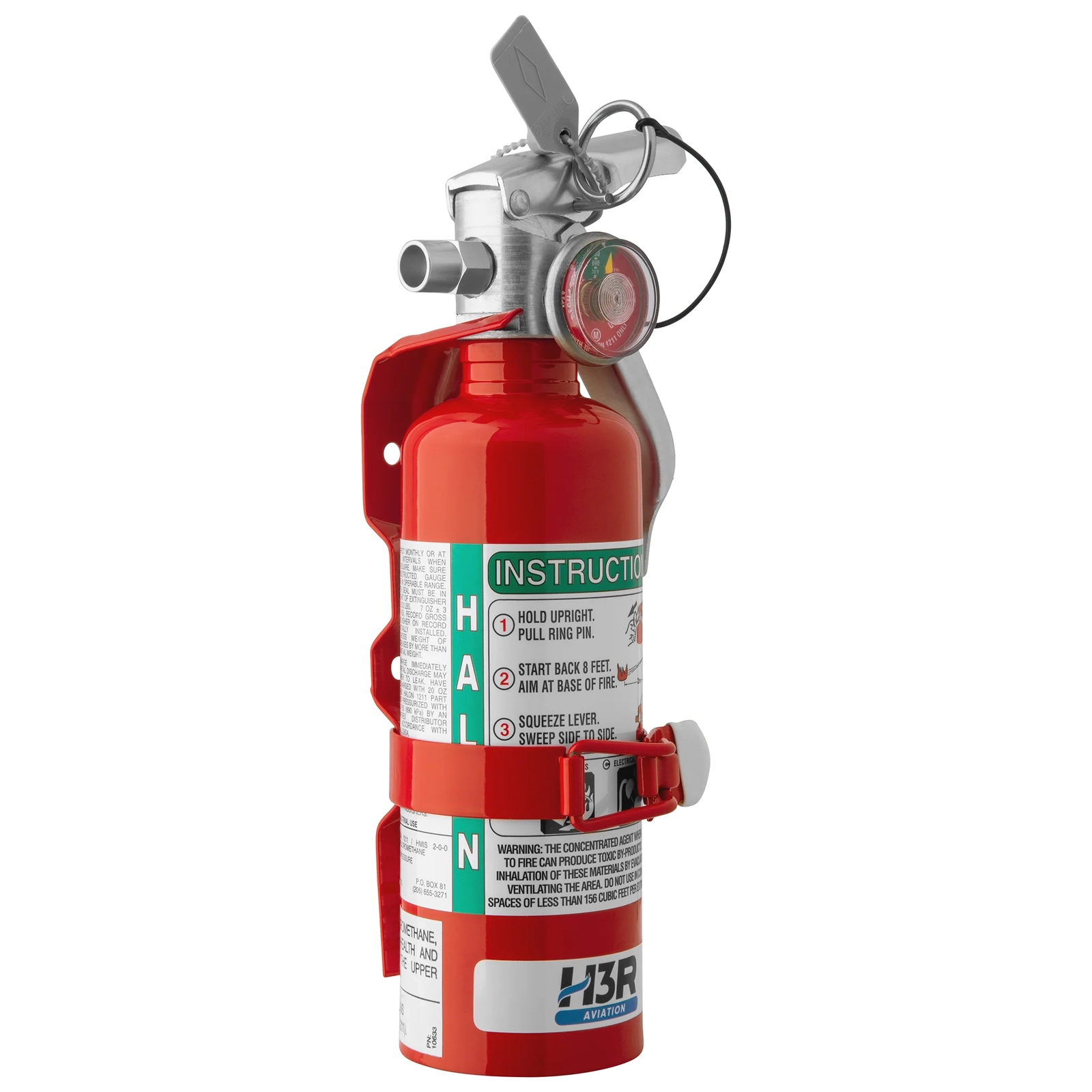

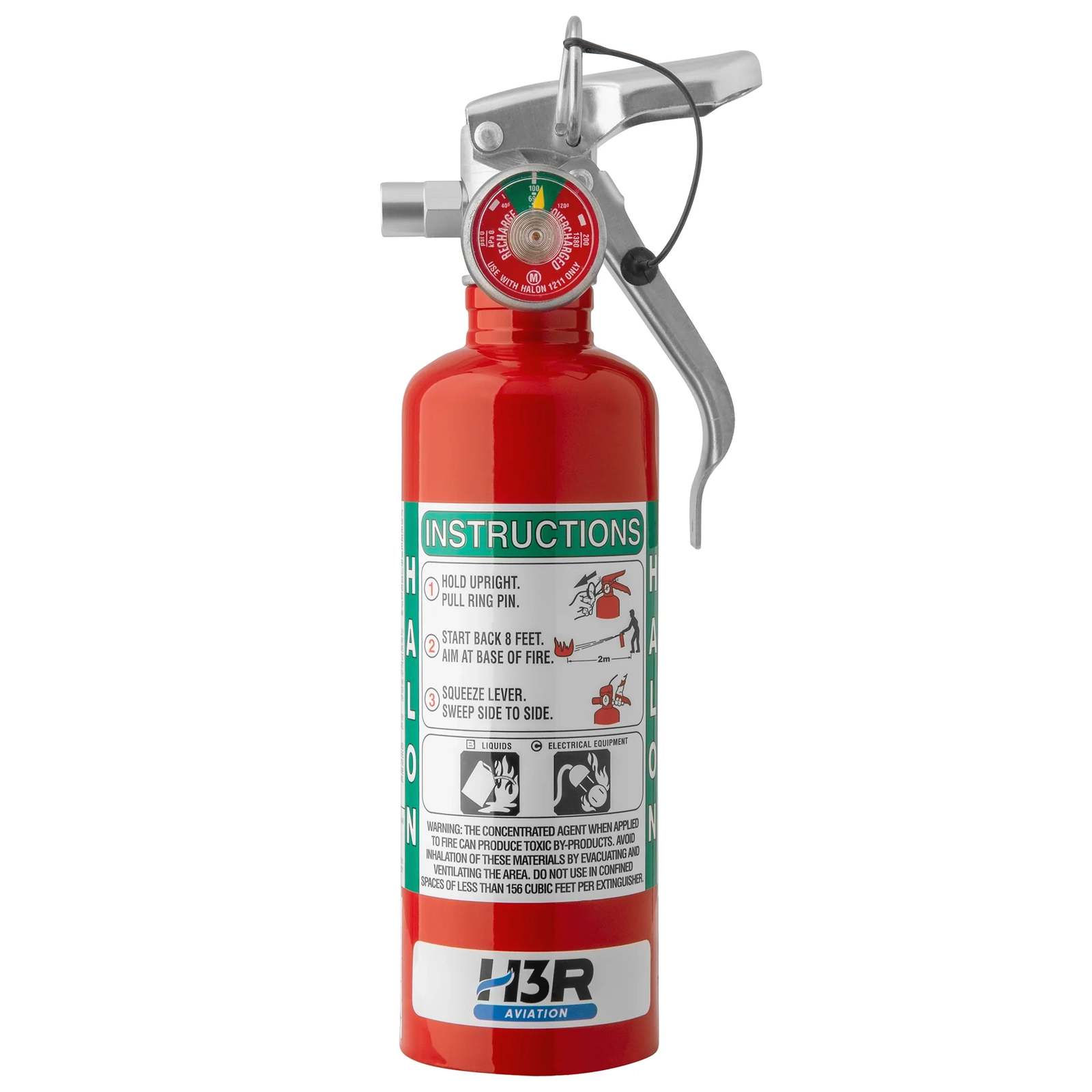

H3R Aviation 1.25 lb. Halon Fire Extinguisher

Model A344T is a compact and lightweight 1.25 lb. Halon fire extinguisher designed for 1-6 person aircraft. This halon fire extinguisher effectively extinguishes flammable liquid and electrical fires. Halon is a liquefied gas that can reach hard-to-reach areas and chemically disrupt combustion.

Note - Minimum Rating.

Your hand fire extinguisher should be rated per the requirements of U.S. - UL 711, dated December 17, 2004. Hand extinguishers produced in the U.S. or those used on airplanes and/or rotorcraft operated within the U.S. should meet U.S. - UL fire rating standards.

(1) Large Aircraft. The required hand extinguishers should be listed and have a minimum U.S. - UL 5B:C rating or the equivalent. Exception: See chapter 4, paragraph 5 of this AC for minimum extinguisher ratings for use in accessible cargo compartments.

(2) Small Airplanes or Rotorcraft. You may use an extinguisher with a minimum rating of U.S. - UL 2B:C or equivalent on aircraft with maximum compartment volumes of up to 200 ft3.

Fire Extinguisher UL Classification 2B:C

Suitable for VH Registered aircraft up to 200 ft3. Your LAME will be required to install the device and sign off in the Aircraft log books.

SPECIFICATIONS

Agent weight	1.25 lb. / 0.567 kg
Gross weight	2.3 lb. / 1.021 kg
Discharge range	9-12 ft. / 2.7 - 3.7 m
Discharge time	10 sec.
Height	10.25 in. / 26 cm
Width	3.9 in. / 9.9 cm
Cylinder diameter	2.6 in. / 6.6 cm
UL Classification	2B:C

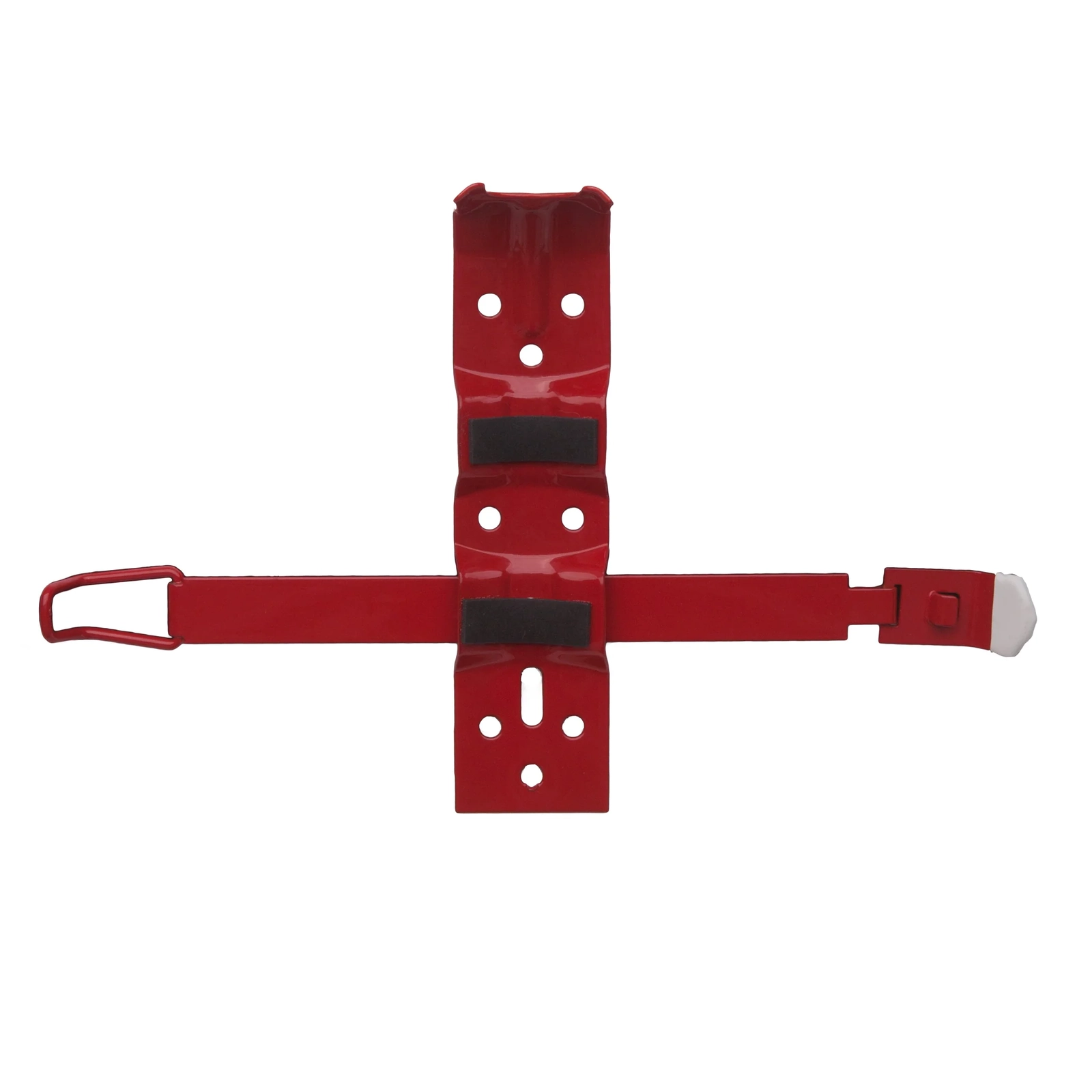

Included bracket	845
