Garmin aera® 760 GPS
Product Description

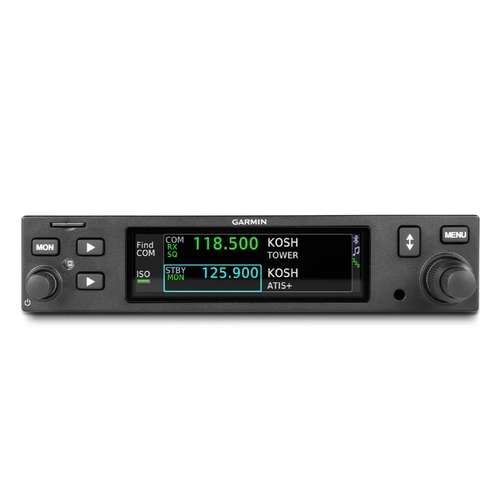

Garmin GTR 205x VHF Transceiver for Experimental Aircraft

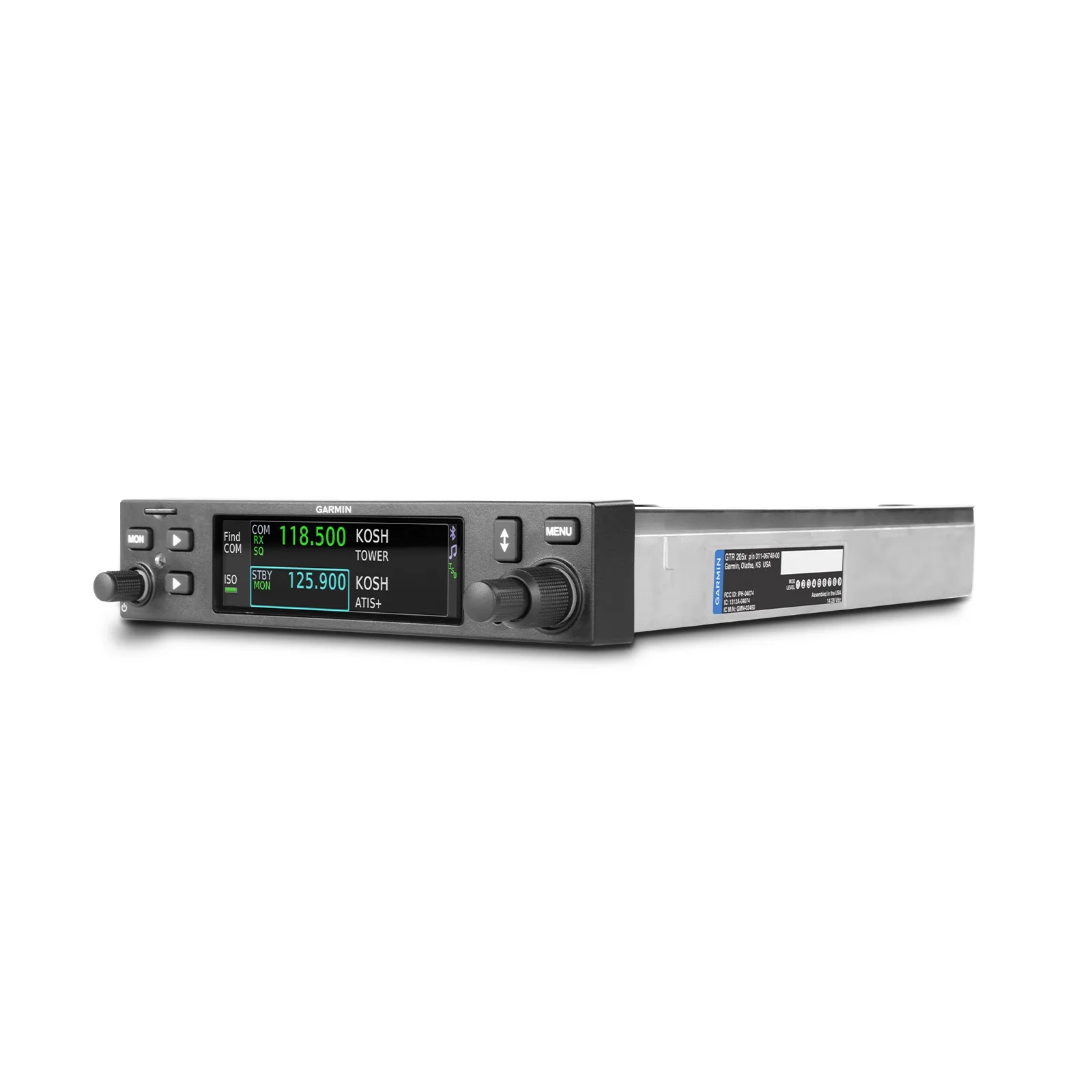

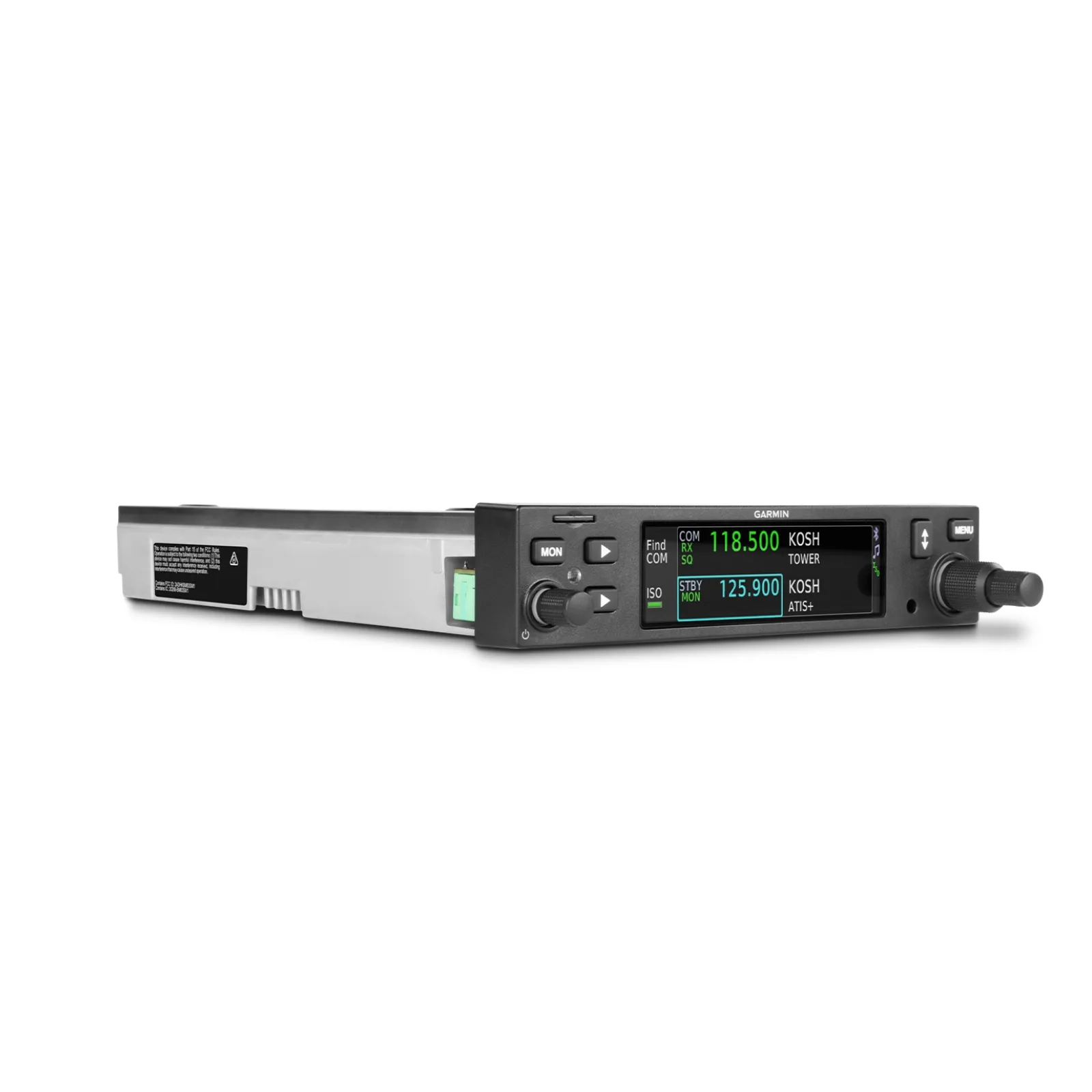

MEET YOUR COMM NEEDS — AND MORE
Upgrade your COMM radio with the modern, cost-effective slimline GTR 205 radio, and add advanced communication and audio entertainment capabilities1 to your panel.
Upgrade your COMM radio with the modern, cost-effective slimline GTR 205 radio, and add advanced communication and audio entertainment capabilities1 to your panel.
 |
 |
 |
 |
 |
 |

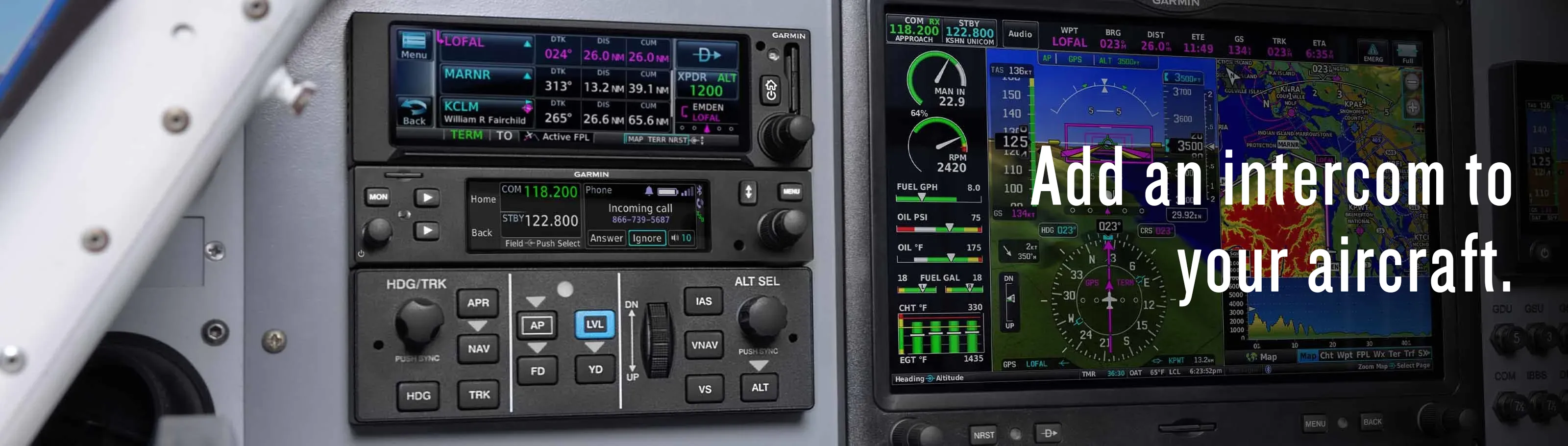

| Small panel? The slim 1.35-inch height fits your aircraft with ease. | See your frequencies clearly on a large, bright, full-color LCD display | Get a two-place intercom with this all-in-one COMM radio. | Find your facility frequency with the worldwide database. | Monitor your standby COMM frequency | Quickly tune to the 121.5 emergency frequency with a single touch. |
| SLIM 1.35-INCH BEZEL | FULL-COLOR LCD DISPLAY | BUILT-IN INTERCOM |

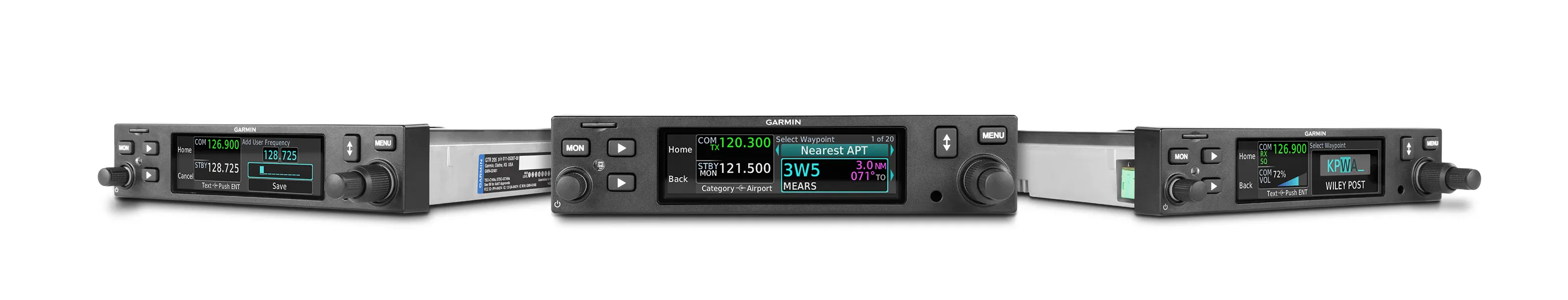

| Replace similar-sized legacy radios, and save valuable panel space in tighter installations. | Enjoy a large high-resolution display with pilot-selectable brightness controls. | Communicate clearly with your passenger, add 3D Audio processing, and connect with BLUETOOTH® technology. |
.webp)
 |
 |
 |
VHF COMM TRANSCEIVER |
FIND A FREQUENCY |
FREQUENCY ID |

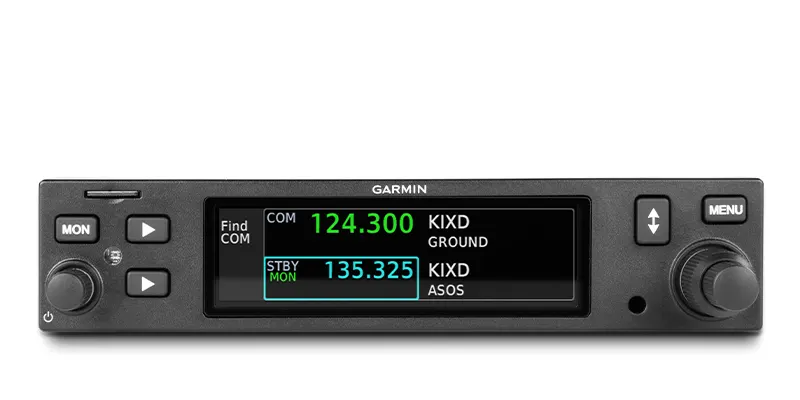

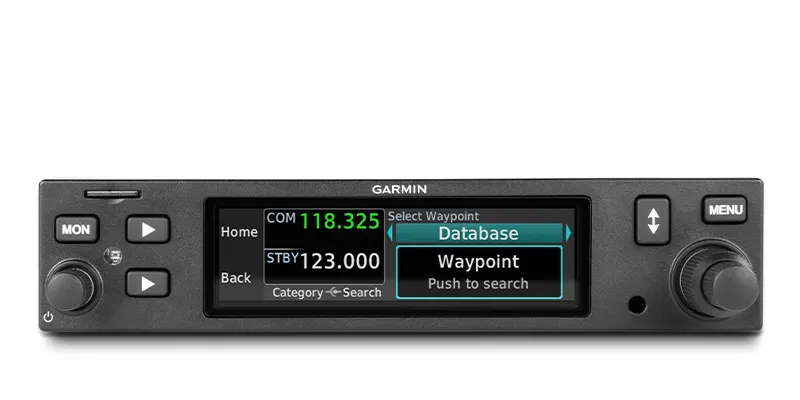

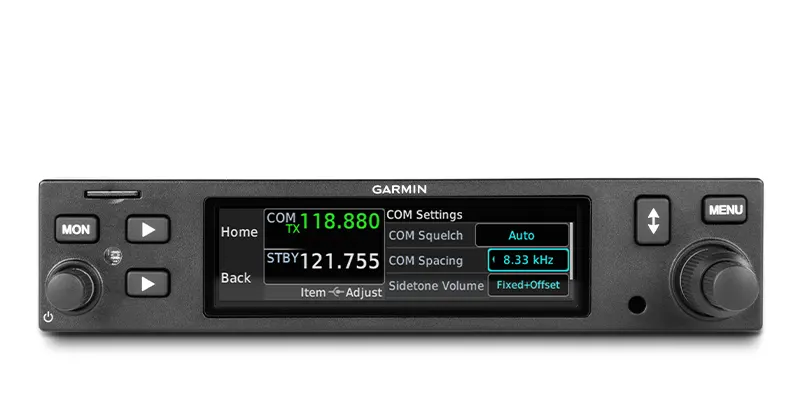

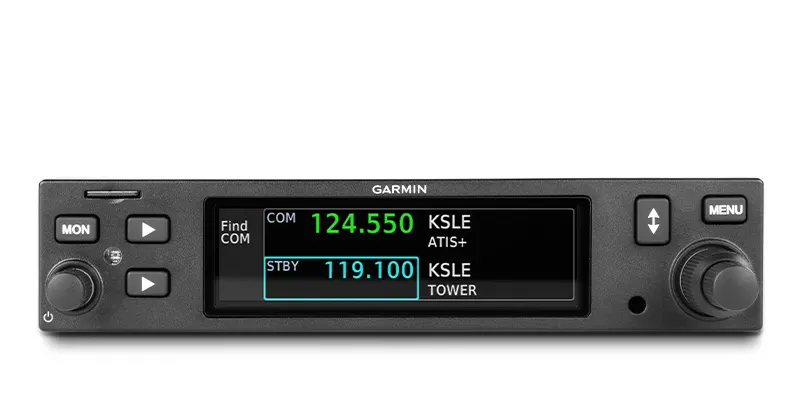

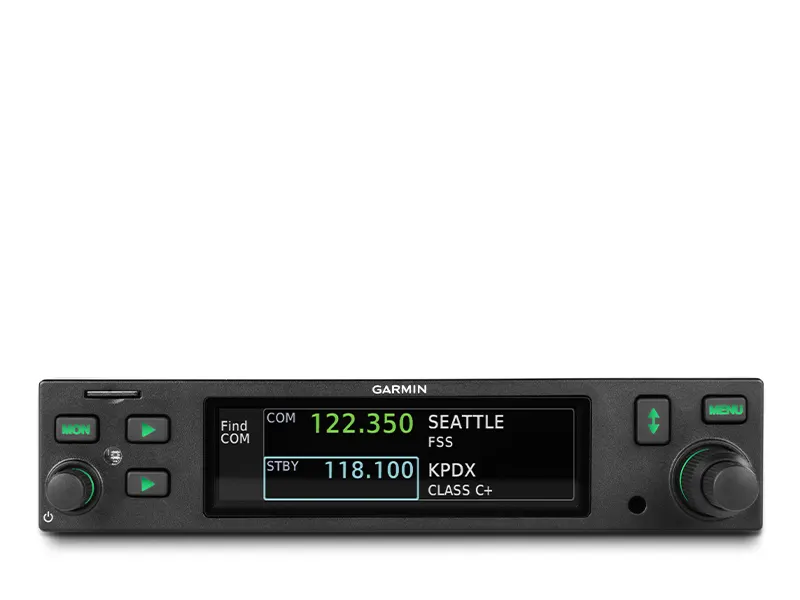

| The 2,280-channel capable VHF COMM radio offers standard 10 watts (or optional 16 watts with enablement) of transmit power plus pilot-selectable 25 kHz or 8.33 kHz channel spacing and automatic or manual squelch. Swap your active and standby frequencies with a single touch of a button. | Enter an airport identifier, and let the GTR 205 radio look up frequencies for that location (tower, ground, ATIS, clearance delivery and more) from its worldwide database. Then, send the selected frequency to the standby position. | Pair with your compatible GPS source to enable frequency ID, and show your tuned frequency’s identifier and type, including tower, ATIS, center and more. So you know who you’re talking to. |
 |
 |
 |
STANDBY COMM MONITORING |
INSTANT RECALL |
BUILT-IN TIMER |

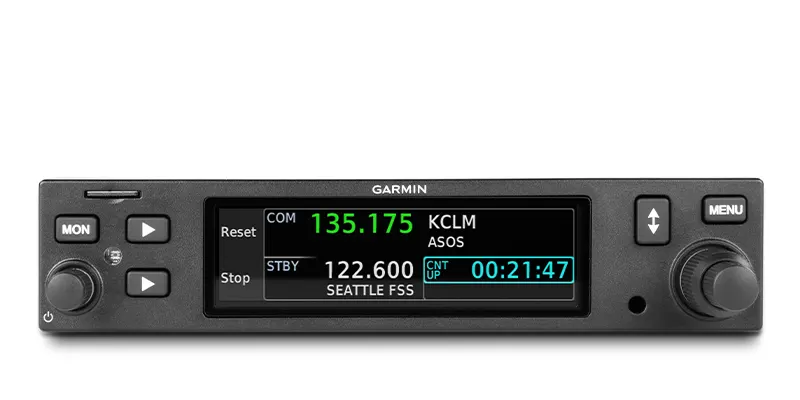

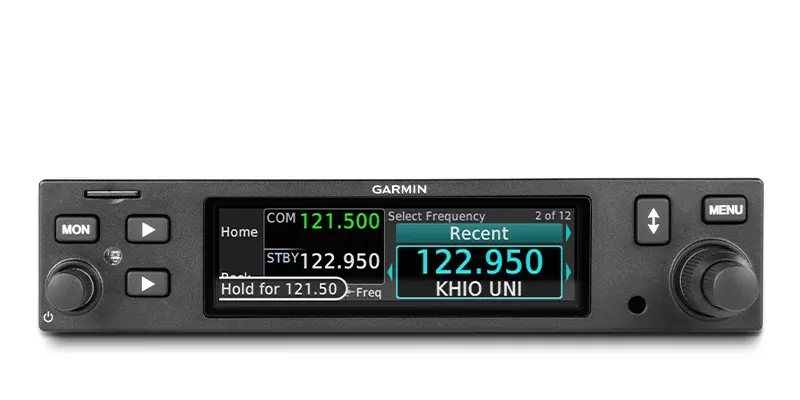

| Listen to a standby frequency, such as ATIS, without leaving your active channel. | With frequency memory and recall, you can quickly tune your most frequently or recently used frequencies. Plus, holding down the volume knob will dial up the 121.5 emergency frequency. | Use the built-in timer to assist with approaches, holds and other assigned maneuvers — with the option to count up or count down. |
 |
 |
|
NVG COMPATIBLE |
REMOTE TUNING |
|

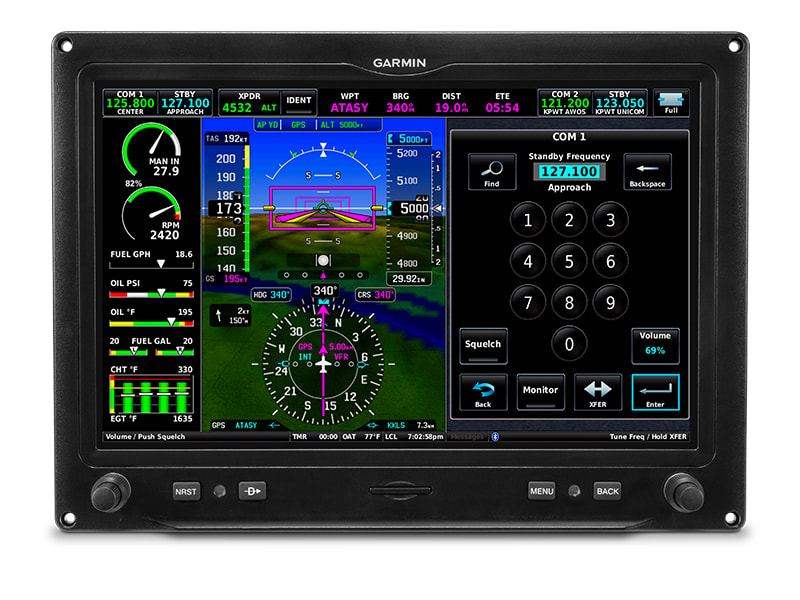

| For demanding night missions, GTR 205 is available with an optional NVIS enablement. | Pair the GTR 205 radio with your G3X Touch™ flight display, and remotely tune your radio via your flight display touchscreen. |
.webp)
.jpg) |
 |
 |

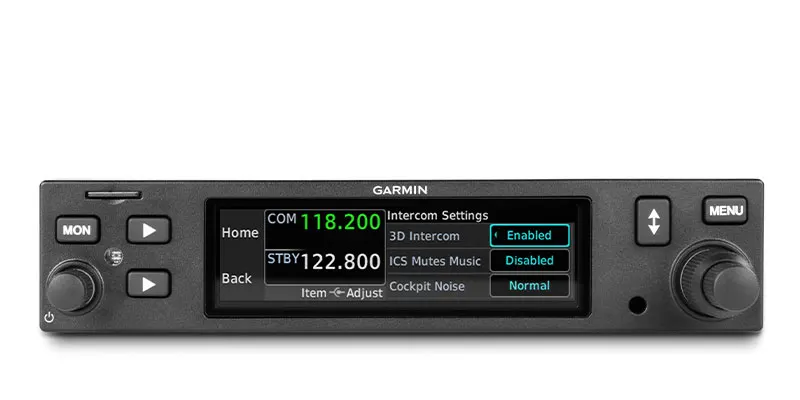

| TWO-PLACE INTERCOM | AUTO SQUELCH TECHNOLOGY | 3D AUDIO PROCESSING |

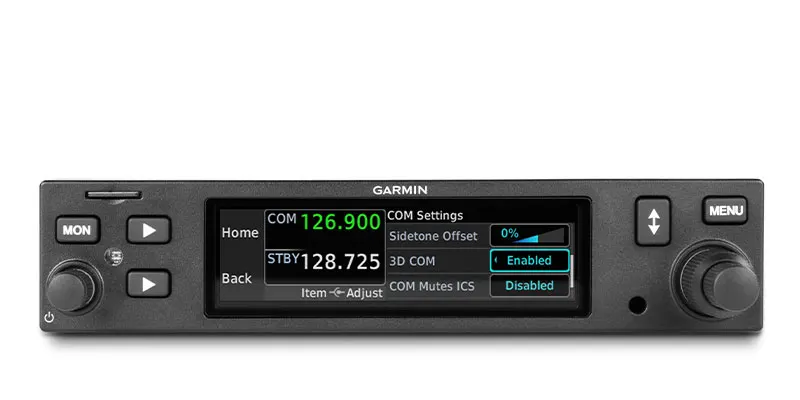

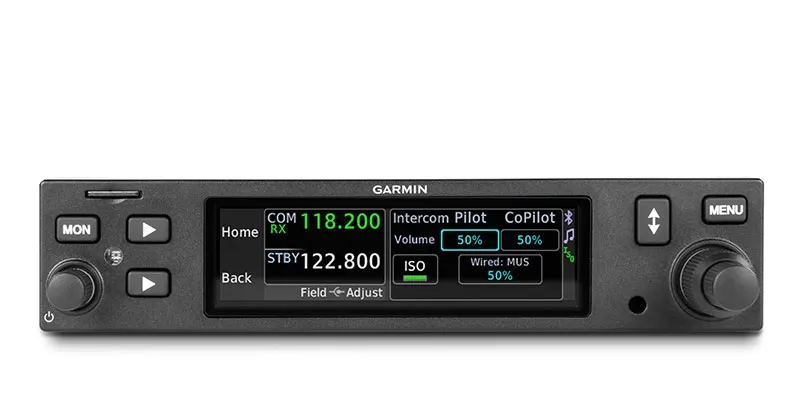

| Communicate clearly with your passenger via the built-in intercom. The pilot-isolate feature allows you to focus on COMM radio communications or for your passenger to listen to music without radio interruptions. | Auto squelch allows GTR 205 to automatically sense noise levels in the cockpit and adjust the mic squelch for easy intercom use regardless of the cockpit noise level. | With your stereo headset, hear each audio source as if it’s coming from a unique location — so it’s easier to differentiate between sources. |
 |
 |
 |

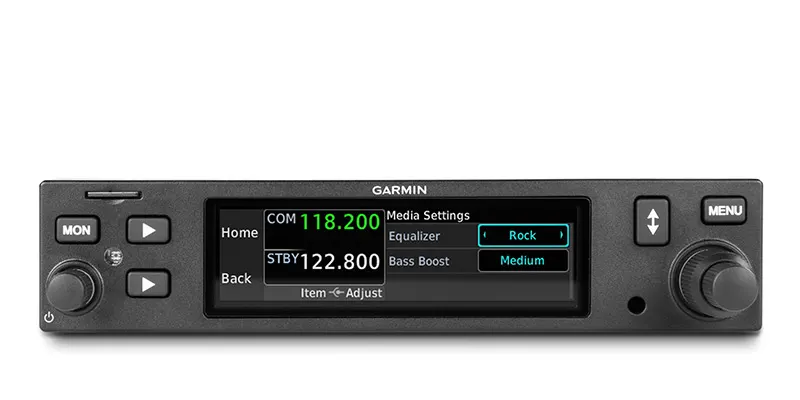

| BLUETOOTH CONNECTIVITY | EQ SETTINGS | AUXILIARY INPUTS |

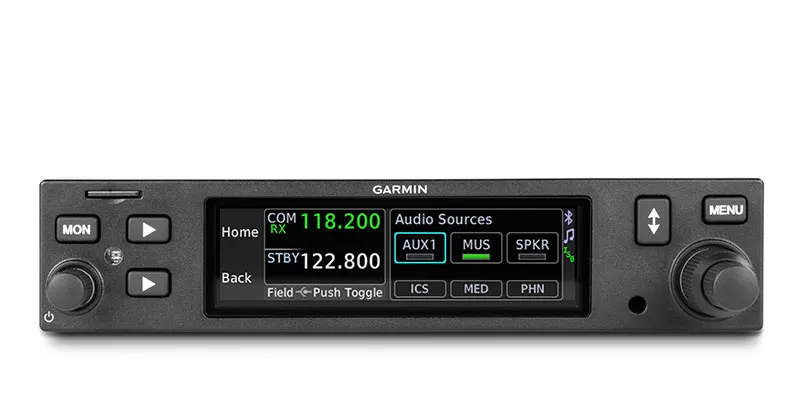

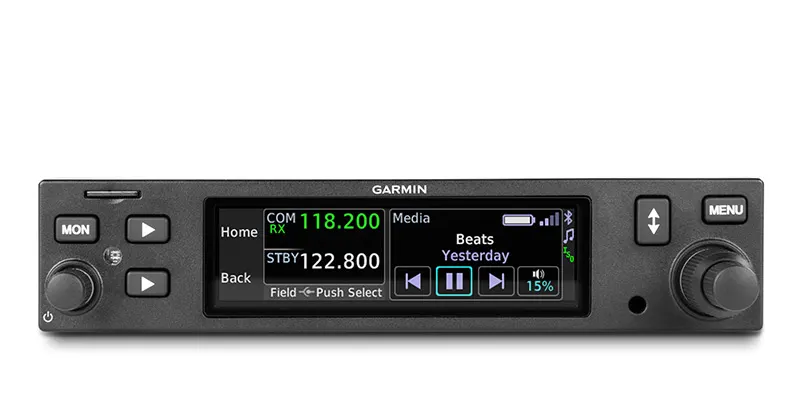

| Pair with your smartphone or other compatible device to stream music and see the song and artist on the GTR 205 display. Play, pause, skip & repeat tracks without needing to access your device. Receive incoming calls, view phone numbers, end calls, and see your device’s signal strength and battery life right on the display. | Music settings allow you to select enhanced bass boost levels as well as equalizer effects that include rock, classical and pop audio profiles. | GTR 205 is capable of up to four AUX inputs, including two channels for stereo audio plus mono audio alerts and more. |
MANUALS
Specifications
Performance:
Communication channels: 760 with 25 kHz spacing; 2280 channels with 8.33 kHz spacing
Frequency range: 118.000 to 136.992 MHz
Transmit power: 10 watts (16 watts with optional enablement)
Input voltage range: 9 to 33 VDC
Operating temperature range: -20 to +55 C
GTR 205X
Performance:
Communication channels: 760 with 25 kHz spacing; 2280 channels with 8.33 kHz spacing
Frequency range: 118.000 to 136.992 MHz
Transmit power: 10 watts (16 watts with optional enablement)
Input voltage range: 9 to 33 VDC
Operating temperature range: -20 to +55 C
Physical:
Dimensions: 1.35”H x 6.25”W (3.43 cm x 15.88 cm)
Weight: 2.2 lbs (1 kg) unit only; 2.8 lbs (1.4 kg) with mounting rack and connectors

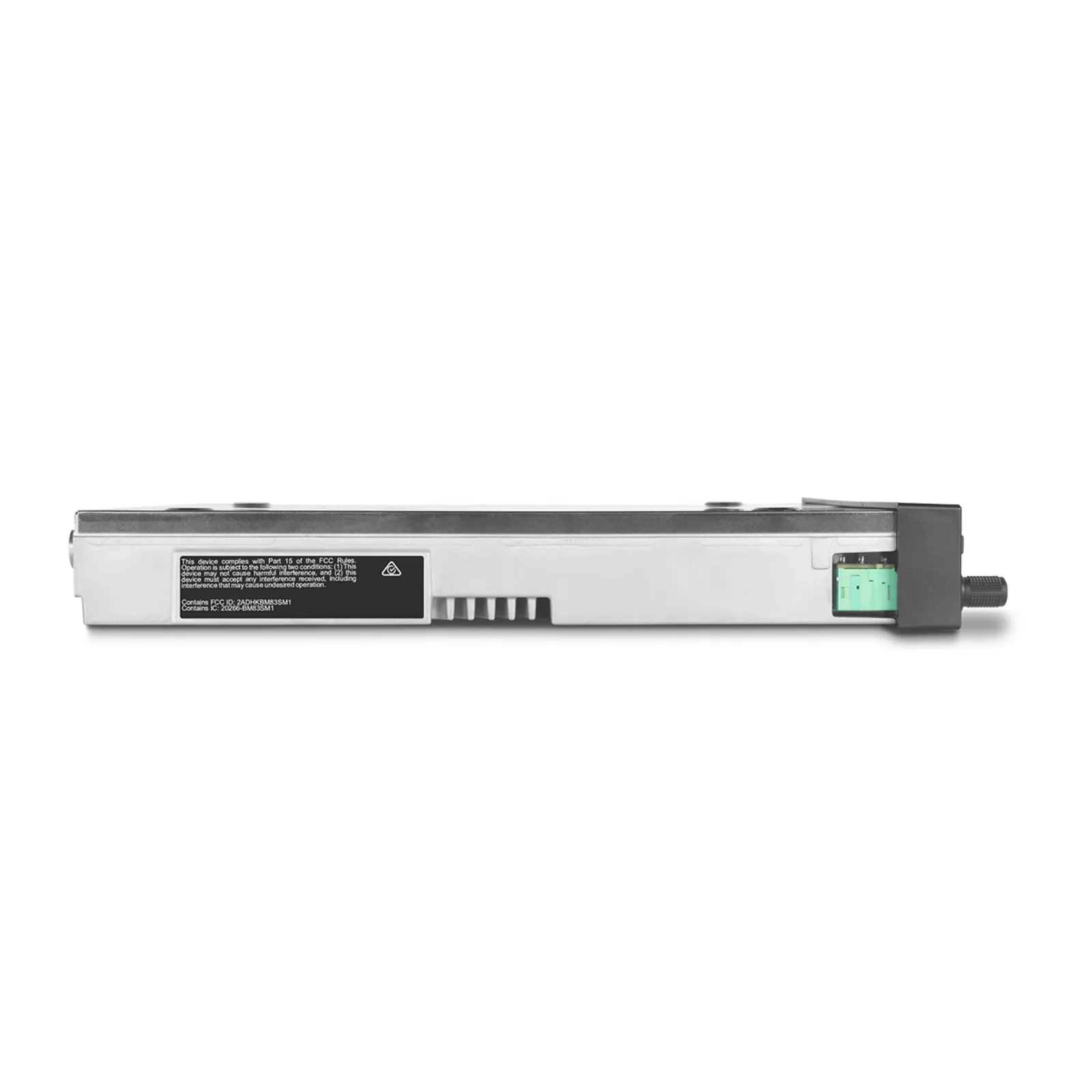

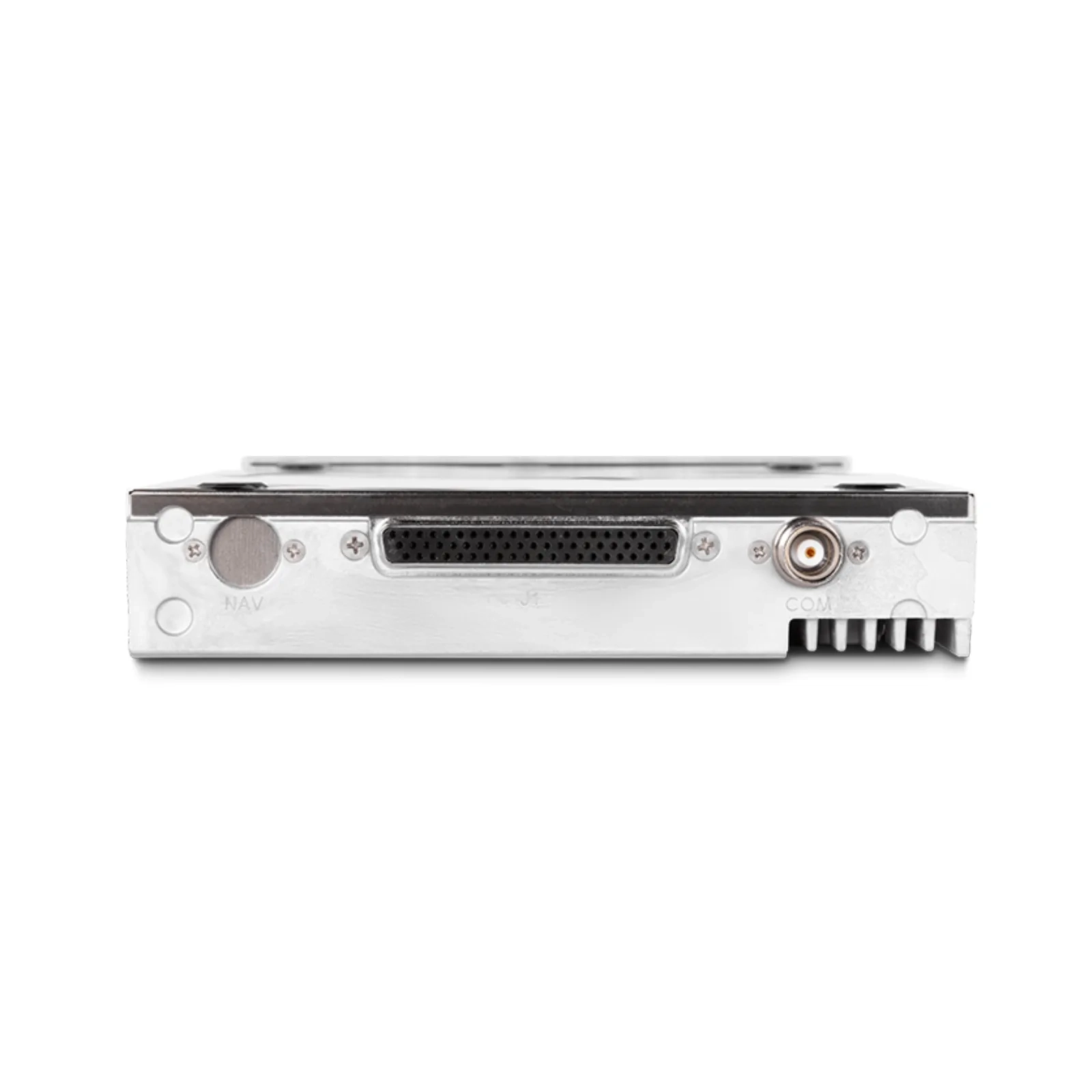

Depth: 10.32 inches (26.21 cm) behind panel, including mounting rack and connectors
Dimensions: 1.35”H x 6.25”W (3.43 cm x 15.88 cm)
Weight: 2.2 lbs (1 kg) unit only; 2.8 lbs (1.4 kg) with mounting rack and connectors
Depth: 10.32 inches (26.21 cm) behind panel, including mounting rack and connectors
Bluetooth
- Bluetooth 5.0 Compliant
- Supported profiles: A2DP and AVRCP (music) and HFP (phone)
- Paired devices stored: 8
- Connections allowed: 1 device
- Supported devices: Phones, tablets, and GDL 51/52 (music). Streaming music from Garmin watches (D2 Delta) is also supported.
- Firmware updates: Free and field loadable by micro-SD card
| SKU | 010-03395-01 |
| Brand | Garmin |
| Shipping Weight | 1.5000kg |
| Unit Of Measure | ea |
