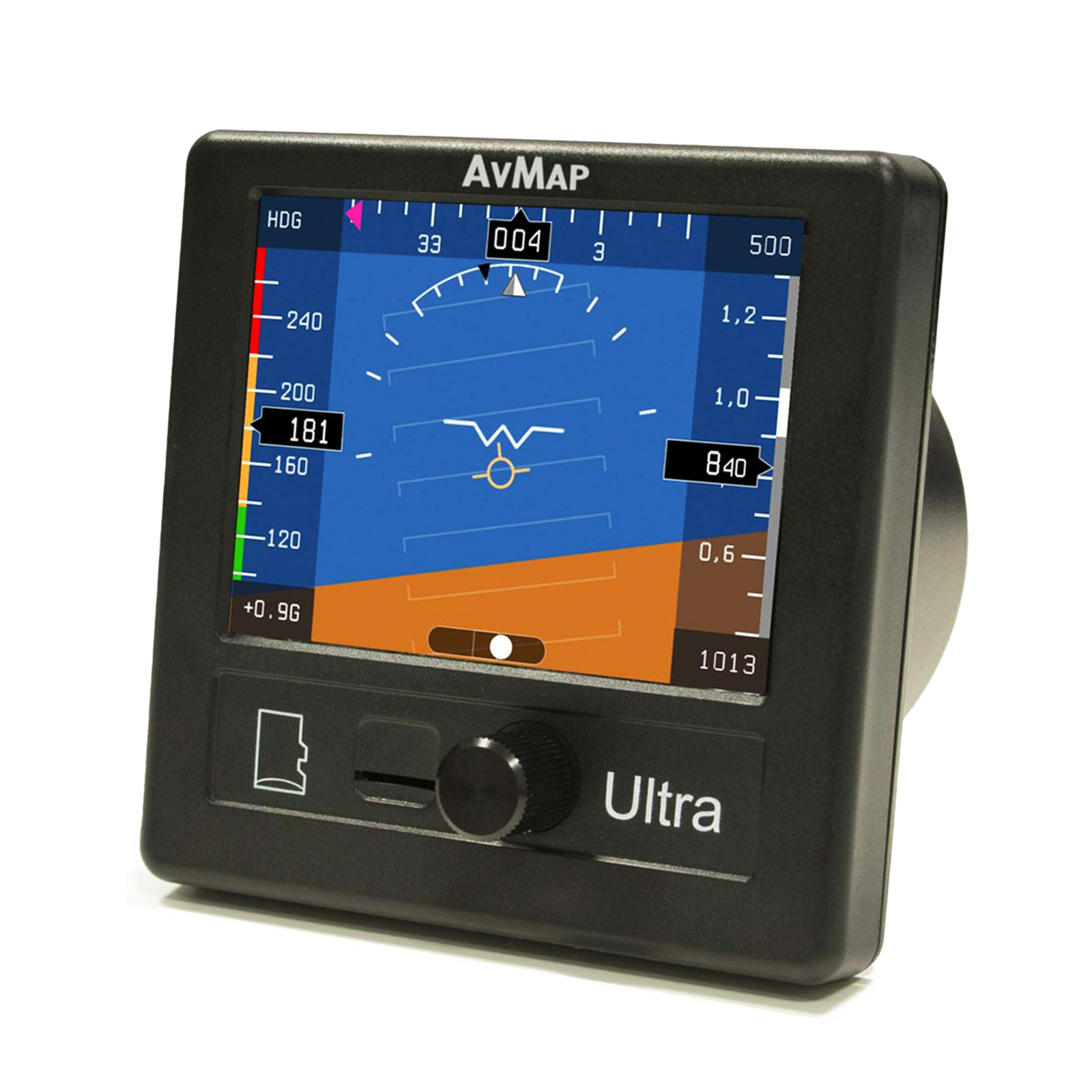

Avmap Ultra EFIS

Ultra EFIS
Save space, weight and money - measures only 9.5cm x 9.5cm in size and weighs 230g

9 Instruments in 1

1. Altimeter
2. Airspeed Indicator
3. Artificial Horizon
4. Directional Gyro/HSI
5. Side Slip Indicator
6. Vertical Speed Indicator
7. Automatic Direction Finder with GPS
8. G-Meter
9. Magnetic Compass

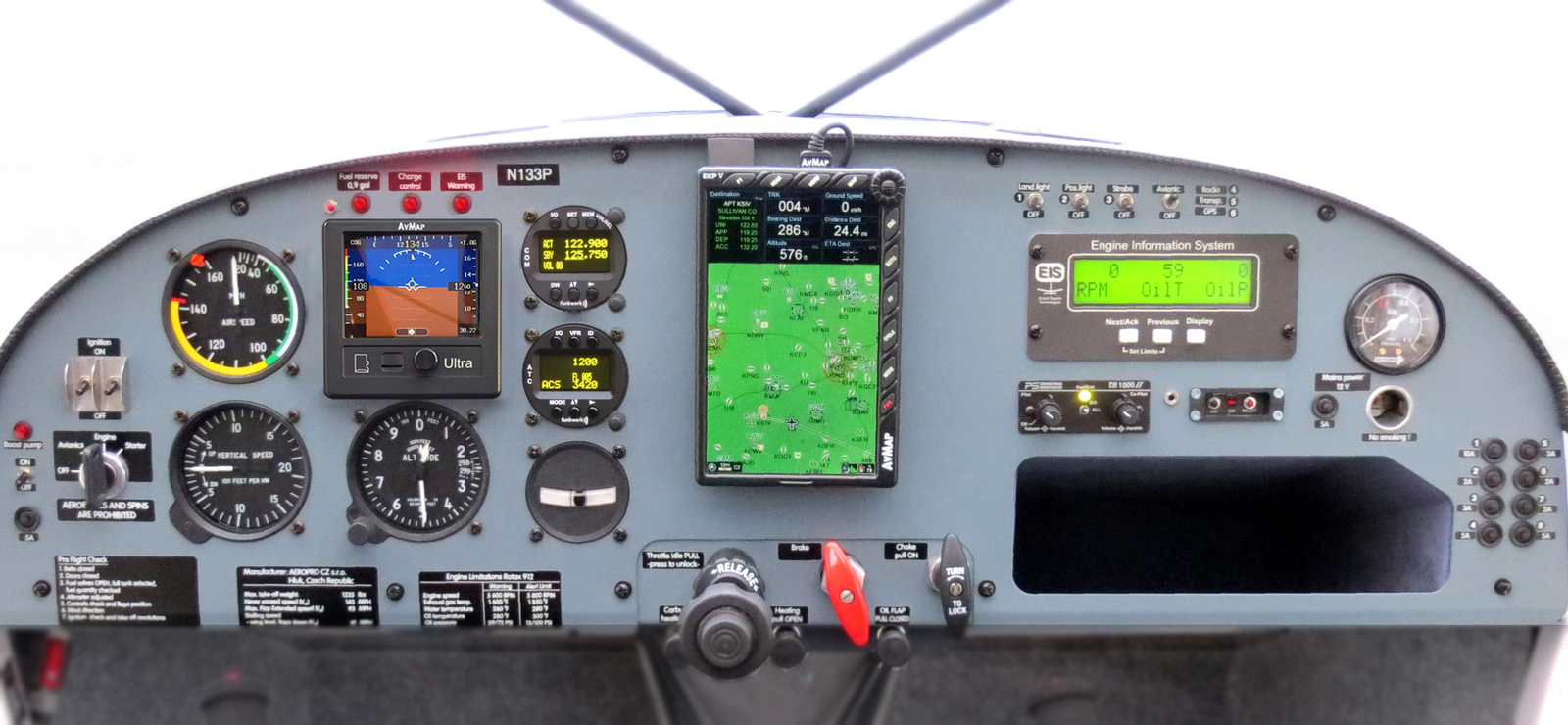

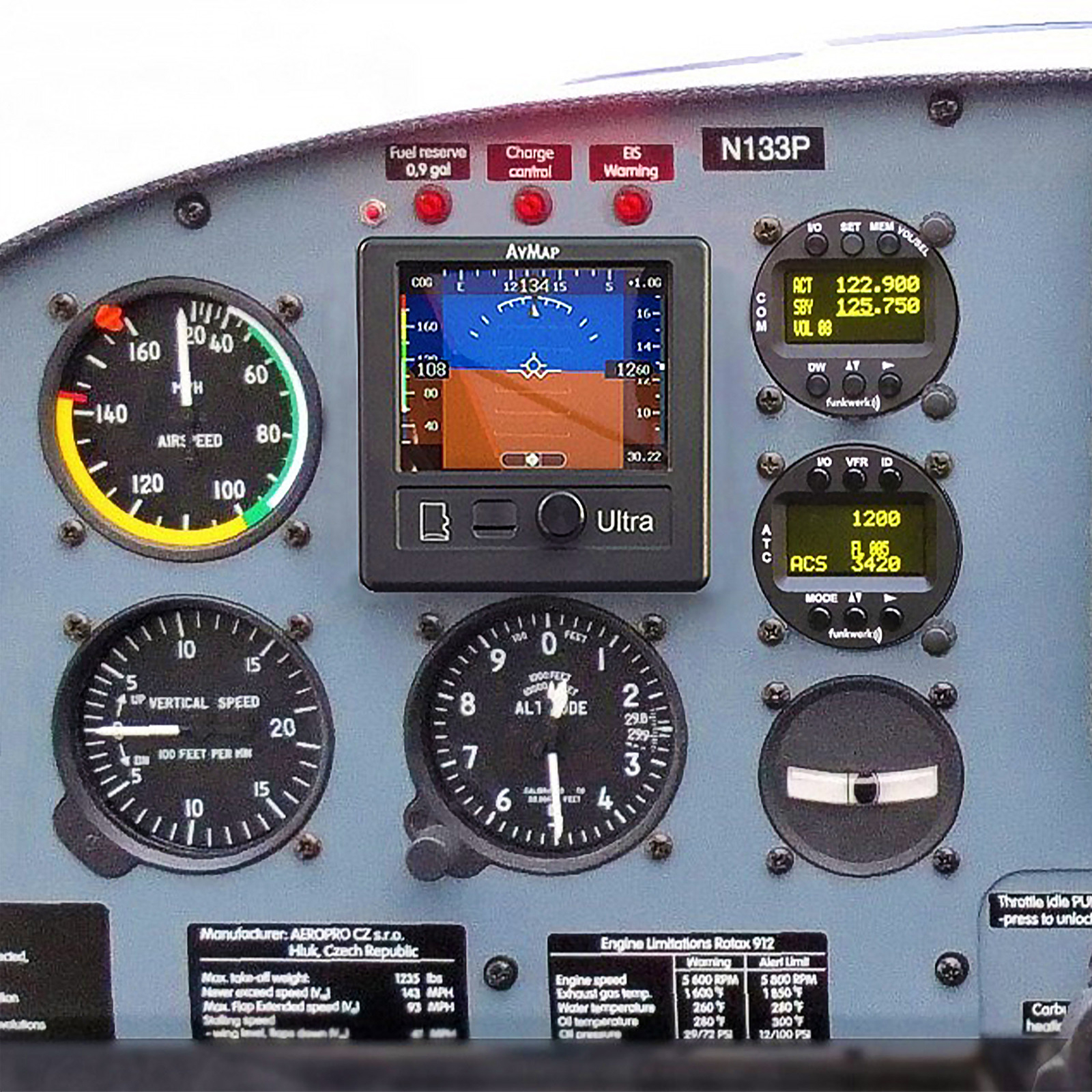

Designed for light-sport, ultralight and experimental aircraft

Ultra light: only 230g

Ultra compact: only 2.49” of installing depth, and only 9.5cm x 9.5cm of external frame

Ultra bright: 3.5” ultra bright LCD display with 500 cd/m2 brightness

Ultra powerful, packed with everything you need
3.5” ultra bright LCD

GPS

Solid state 3-axis gyro

3-axis accelerometer

3-axis magnetic field sensor

Pitot and Static air data sensors

UAV motion processor and sensor fusion software

Preloaded with Jeppesen database (APT, VOR, NDB)

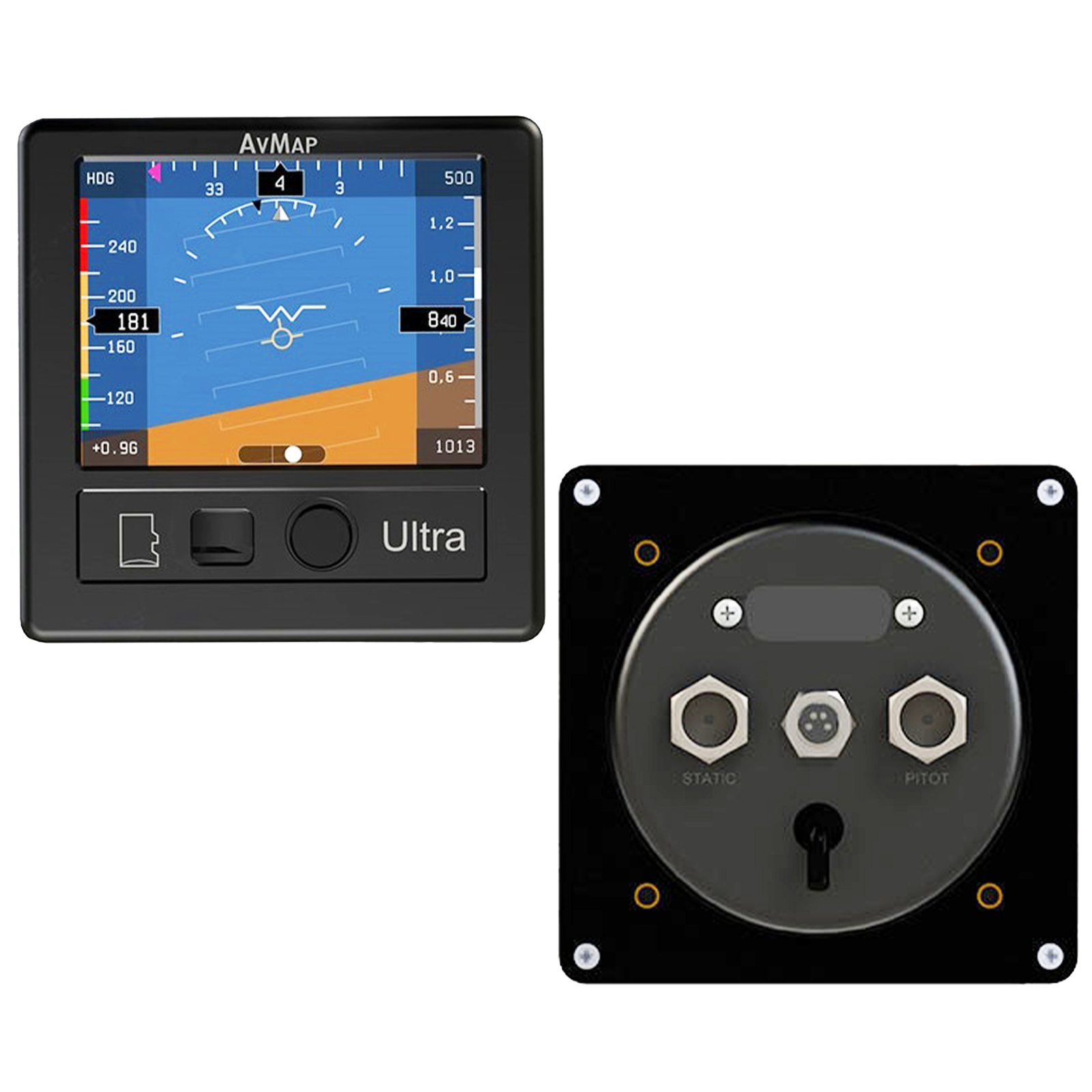

AvMap Ultra EFIS connects to the aircraft Pitot – Static system

When connected to the Pitot-Static, Ultra provides Air Data and advanced performance!

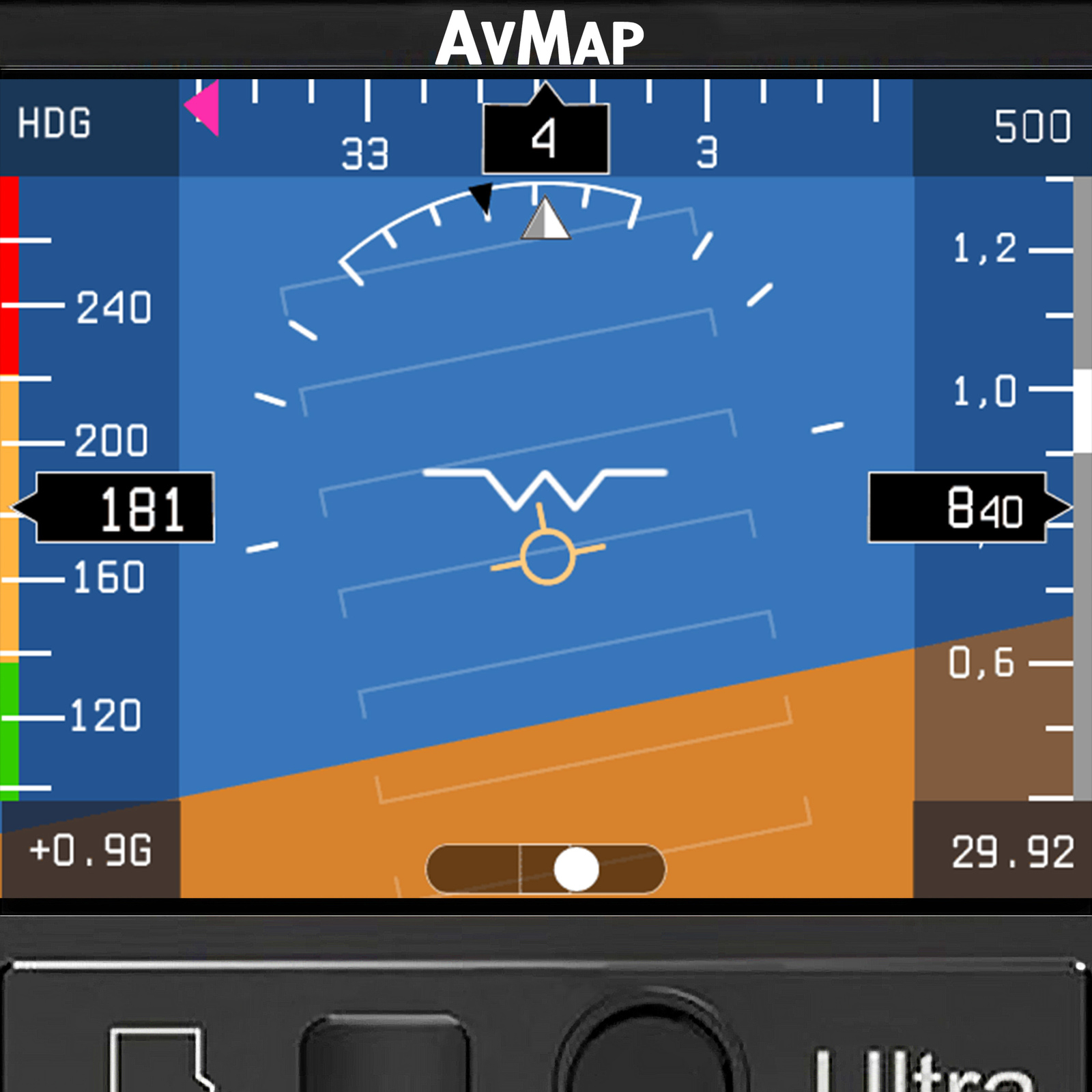

PFD and HSI pages

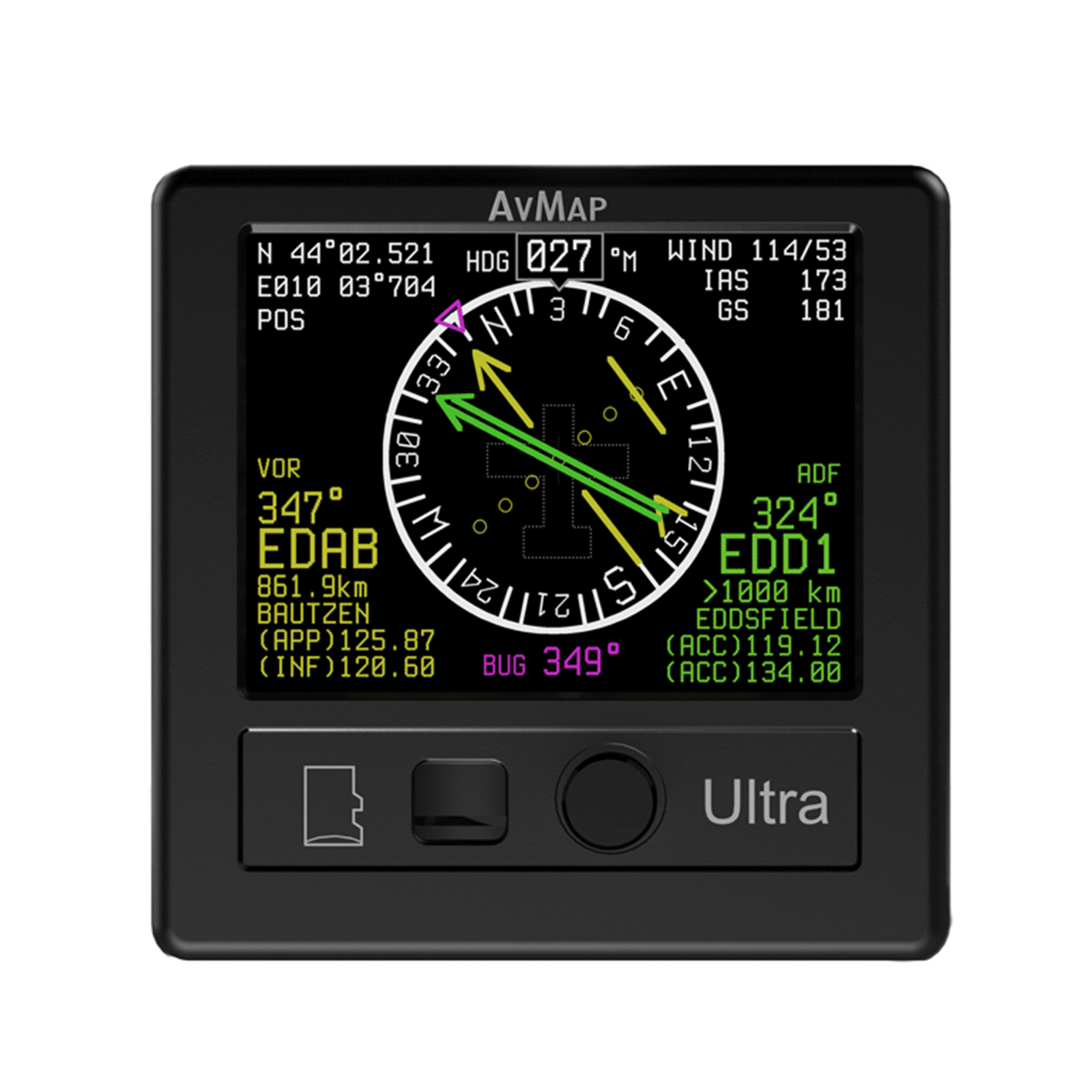

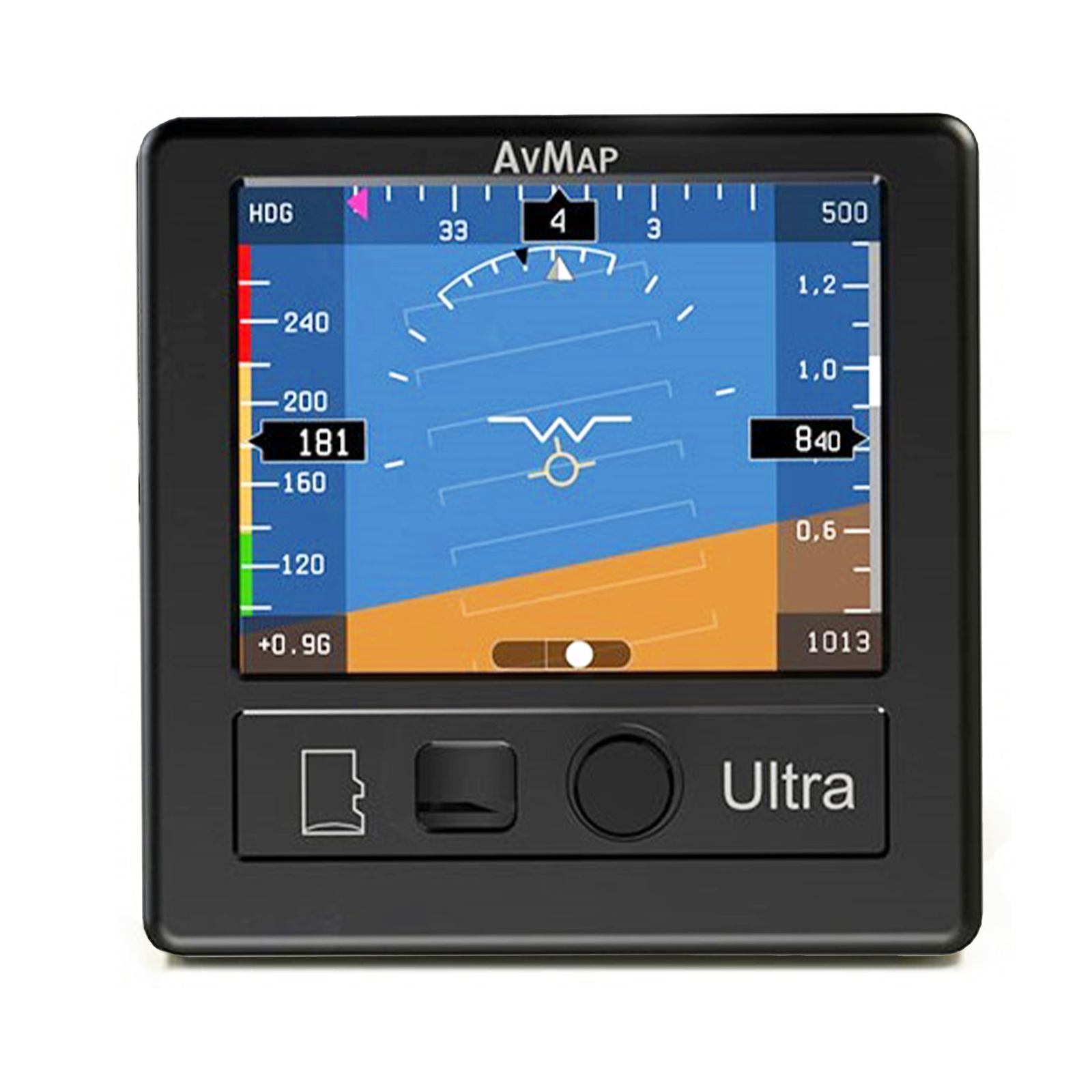

The AvMap Ultra can display on the 3.5” LCD two different pages: PFD and HSI. Change Page by using the rotor knob.

Your Navigation back-up!

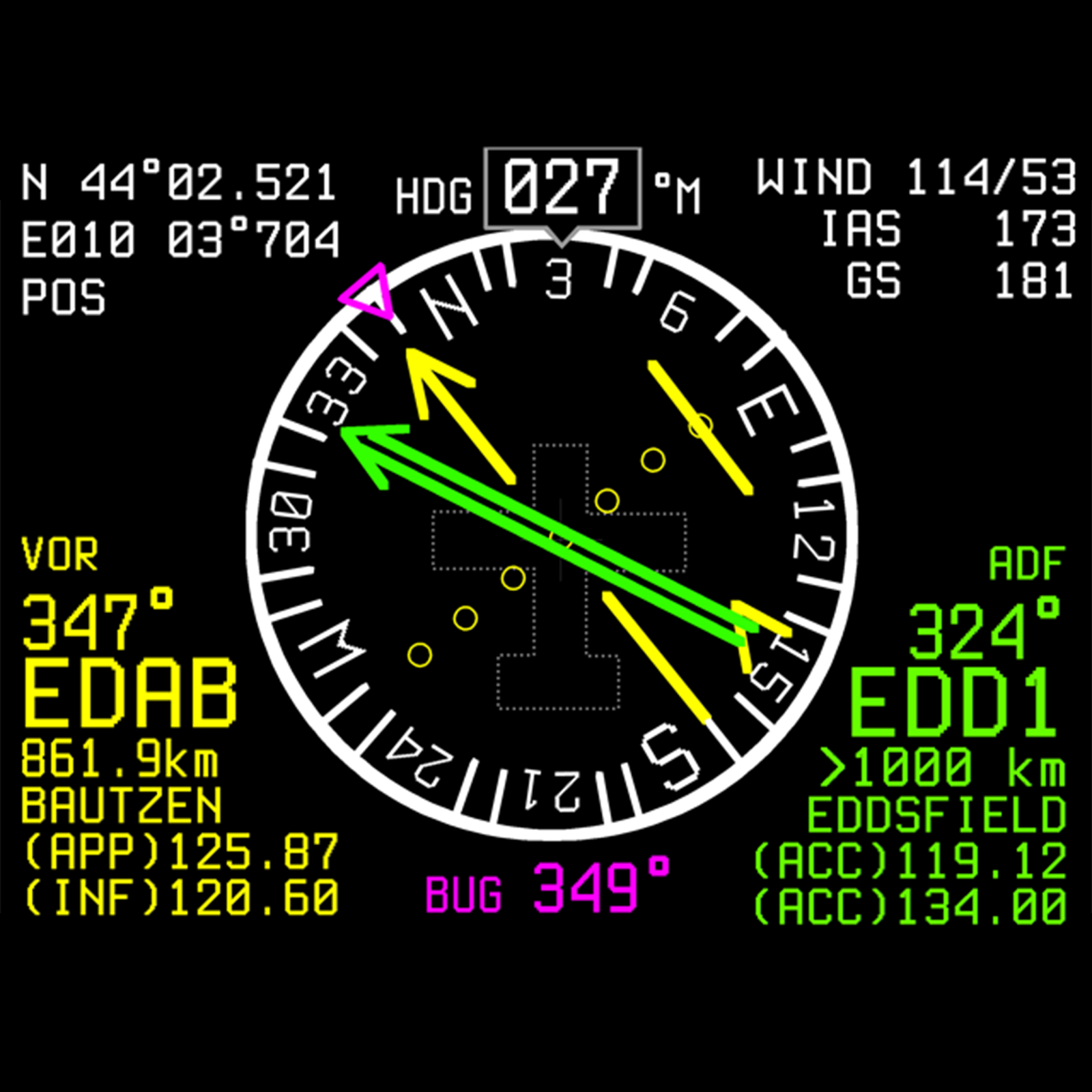

The AvMap Ultra also provides navigation back-up: in the HSI screen you can select from the preloaded Jeppesen Database an Airport, a VOR station or NDB transmitter as your navigation point. The Ultra EFIS contains an internal world magnetic model that allows it to calculate the local magnetic deviation and dip. The Ultra EFIS can calculate current position and ground speed even in the absence of GPS.

CLICK HERE FOR AVMAP ULTRA EFIS BROCHURE

CLICK HERE FOR AVMAP ULTRA EFIS USER MANUAL

Technical specifications:

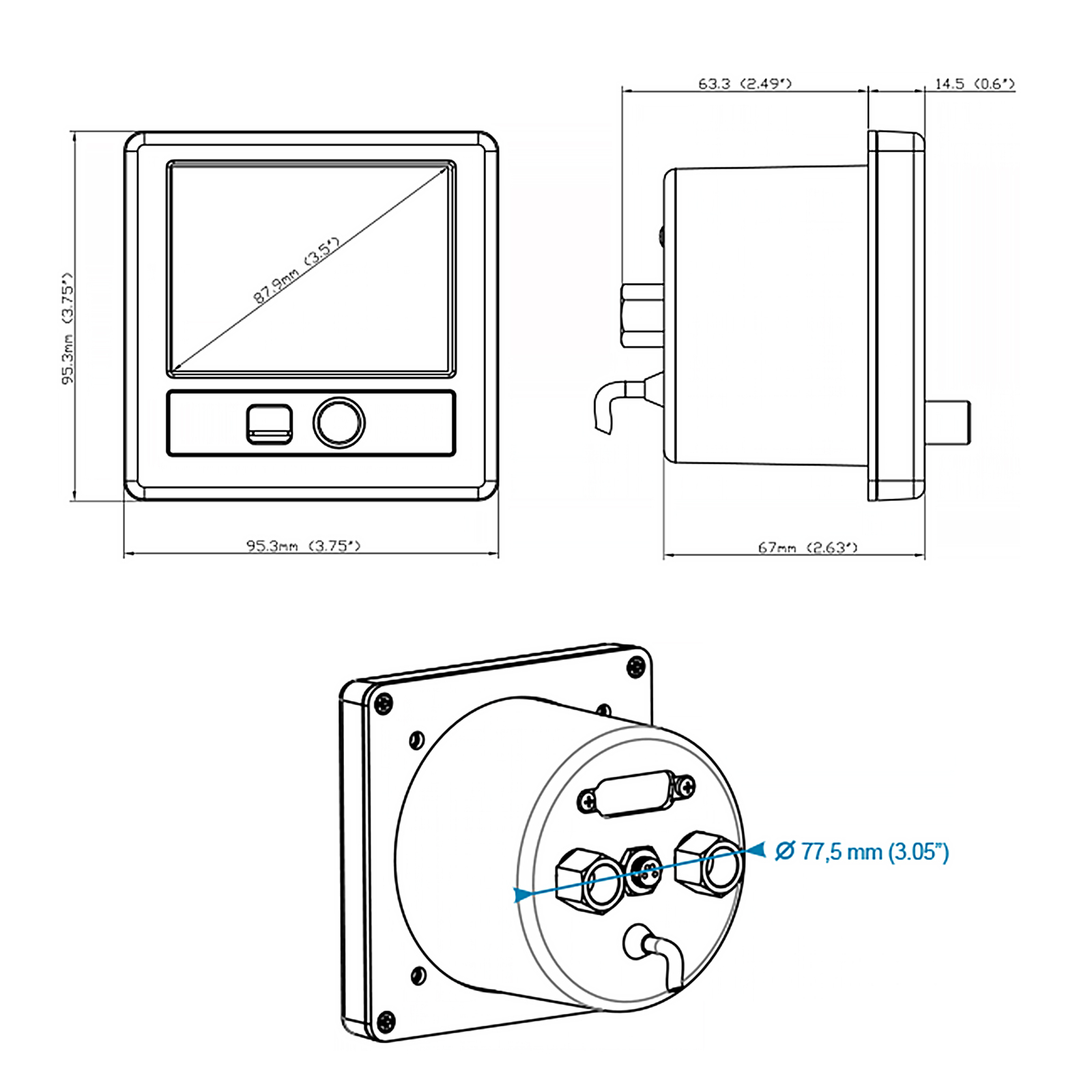

• Dimensions: 95 x 95 x 63.3 mm (3.74” x 3.74” x 2.49”)
• Diameter: 77.5 mm (3.05”); Installing diameter: 79.5 mm (3.125”)
• Weight: 230 g (8.1 oz)
• Display: 3.5”; 320 x 240 pixels, brightness 500 cd/m2
• Operational Temperature: -20 °C to + 70 °C / -4 °F to +158 °F
• 3-axis gyros, accelerometers and magnetometers
• Acceleration range (3 axis): +/- 8 g
• Rotation Range: +/- 1600 deg/s
• Air data sensors: range 10 to 215 kts, -1000 to 40000 ft
• UAV Navigation® Motion processor
• Micro SD slot (for data logging)
• 1.5 m (59”) free wires power supply cable (10/35 VDC)
• 3 serial ports RS-232
• Consumption @ 12 V DC: 100 mA nominal

Included accessories:

• GPS receiver U-Blox NEO 6Q with 1.5 m (59”) cable
• MicroSD Card
• Mounting KIT (Cutting template, 4x metal washers and 4x screws)
• 1x 1A fuse holder
• Microfiber cleaner cloth

Software Capabilities:

• Advanced data fusion capability
• Airspeed and Altitude from pitot-static system
• Attitude (roll, pitch and heading) and side slip
• Wind indicator
• Clear HSI with Course Deviation Indicator (CDI)
• Altimeter reference, Heading reference, Aircraft specific V-speed reference values
• Preloaded with Jeppesen Database (APT, VOR, NDB) for navigation back-up
• Exceptional navigation capability in case of loss of GPS signal
• Load factor (G-meter)

(UX0EFS53AM)
