Product Description
When connected to the A2 ADAHRS module, the EKP V turns into a full-featured Primary Flight Display providing:
A2 ADAHRS connects to the aircraft Pitot-static system and to the docking station via USB and provides information that are displayed on the EKP V LCD.
Dimensions 70 x 60 x 35 mm (2.76” x2.36” x 1.38”)
Weight < 50 g (1.8 Oz)
Operational Temperature -25°C to +85°C / -13°F to +185°F
3-axis gyros, accelerometers and magnetometers
Acceleration range (3 axis) +/- 8 g
Rotation Range +/- 1600 deg/s
Air data sensors: Range 10 to 215 kts, -1000 to 40000 ft
Advanced data fusion capability
USB Interface (1.5 m cable)
UAV Navigation® technology inside
Airspeed and Altitude from Pitot-static system
Attitude, side slip and heading information
Integration of TAWS into the PFD with AGL Altitude indication
Wind indicator with wind components
Clear HSI display linked with EKP V flight planning function
Customizable data fields
PFD settings: Altimeter reference, Heading reference, Aircraft
Specific V-speed reference value
A2 ADAHRS provides a Air Data, Attitude and Heading Reference System to your EKP V.

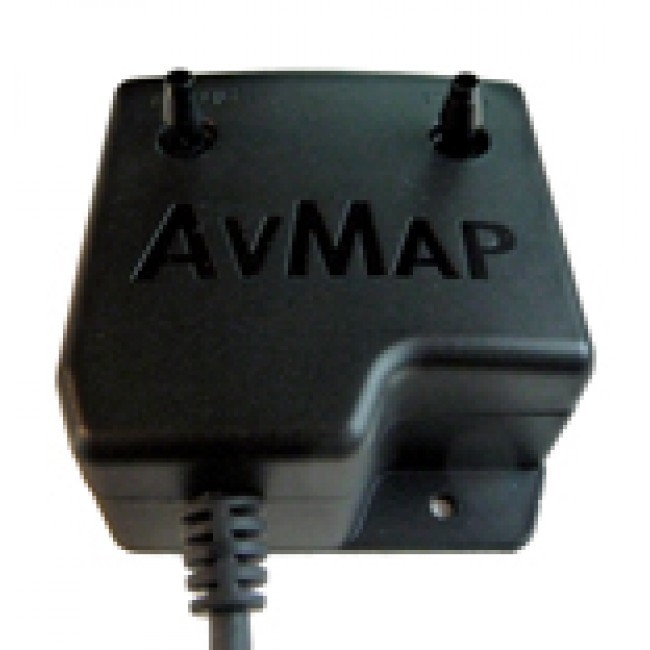

Designed specifically for Light-sport, Ultra light and Experimental Aircraft, A2 ADAHRS is a compact and light module (only 1.8 Oz ) packed with solid-state 3-axis gyro, accelerometer, magnetic field sensor and air data sensors.
Get Airspeed, Altitude, Attitude and Heading on the EKP V’s 7” display. EKP-V can be panel mounted in either Vertical or Horizontal orientation depending on your panel configuration and preference.
When connected to the A2 ADAHRS module, the EKP V turns into a full-featured Primary Flight Display providing:
Airspeed and Altitude from Pitot-static system
Attitude, side slip and heading information Integration of TAWS into the PFD with AGL Altitude indication
Wind indicator with wind components
Clear HSI display linked with EKP V flight planning function
Customizable data fields
PFD settings: Altimeter reference, Heading reference, Aircraft
Specific V-speed reference value.
Ease of Installation

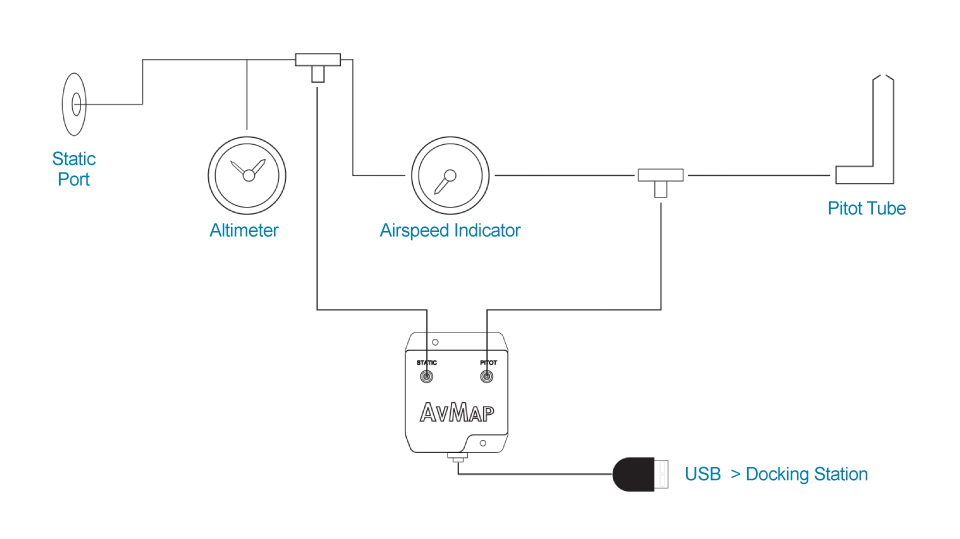

A2 ADAHRS connects to the aircraft Pitot-static system and to the docking station via USB and provides information that are displayed on the EKP V LCD.
A2 ADAHRS can be installed in either Vertical or Horizontal, as long as a proper calibration procedure is performed.
Hardware
Dimensions 70 x 60 x 35 mm (2.76” x2.36” x 1.38”)
Weight < 50 g (1.8 Oz)
Operational Temperature -25°C to +85°C / -13°F to +185°F
3-axis gyros, accelerometers and magnetometers
Acceleration range (3 axis) +/- 8 g
Rotation Range +/- 1600 deg/s
Air data sensors: Range 10 to 215 kts, -1000 to 40000 ft
Advanced data fusion capability

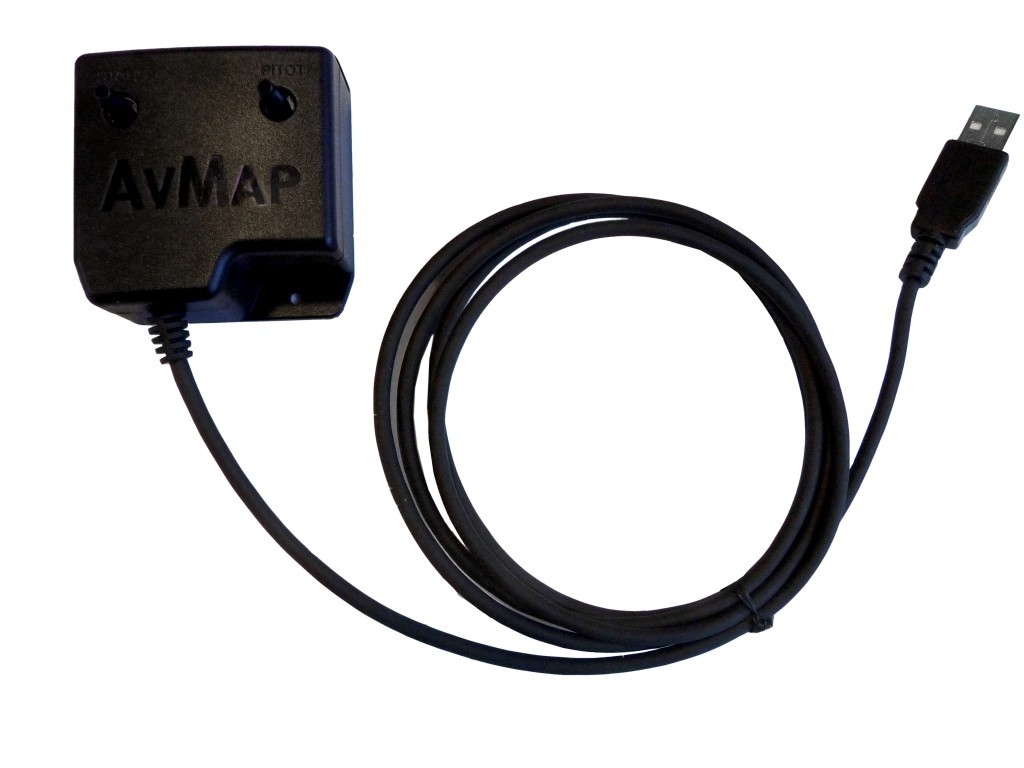

USB Interface (1.5 m cable)
UAV Navigation® technology inside
Software
Airspeed and Altitude from Pitot-static system
Attitude, side slip and heading information
Integration of TAWS into the PFD with AGL Altitude indication
Wind indicator with wind components
Clear HSI display linked with EKP V flight planning function
Customizable data fields
PFD settings: Altimeter reference, Heading reference, Aircraft
Specific V-speed reference value
Specifications
| SKU | UX0IM000AM |
| Brand | Avmap |
| Shipping Weight | 1.2000kg |
| Unit Of Measure | ea |
