13" Diameter Standard Windsock Frame
Product Description

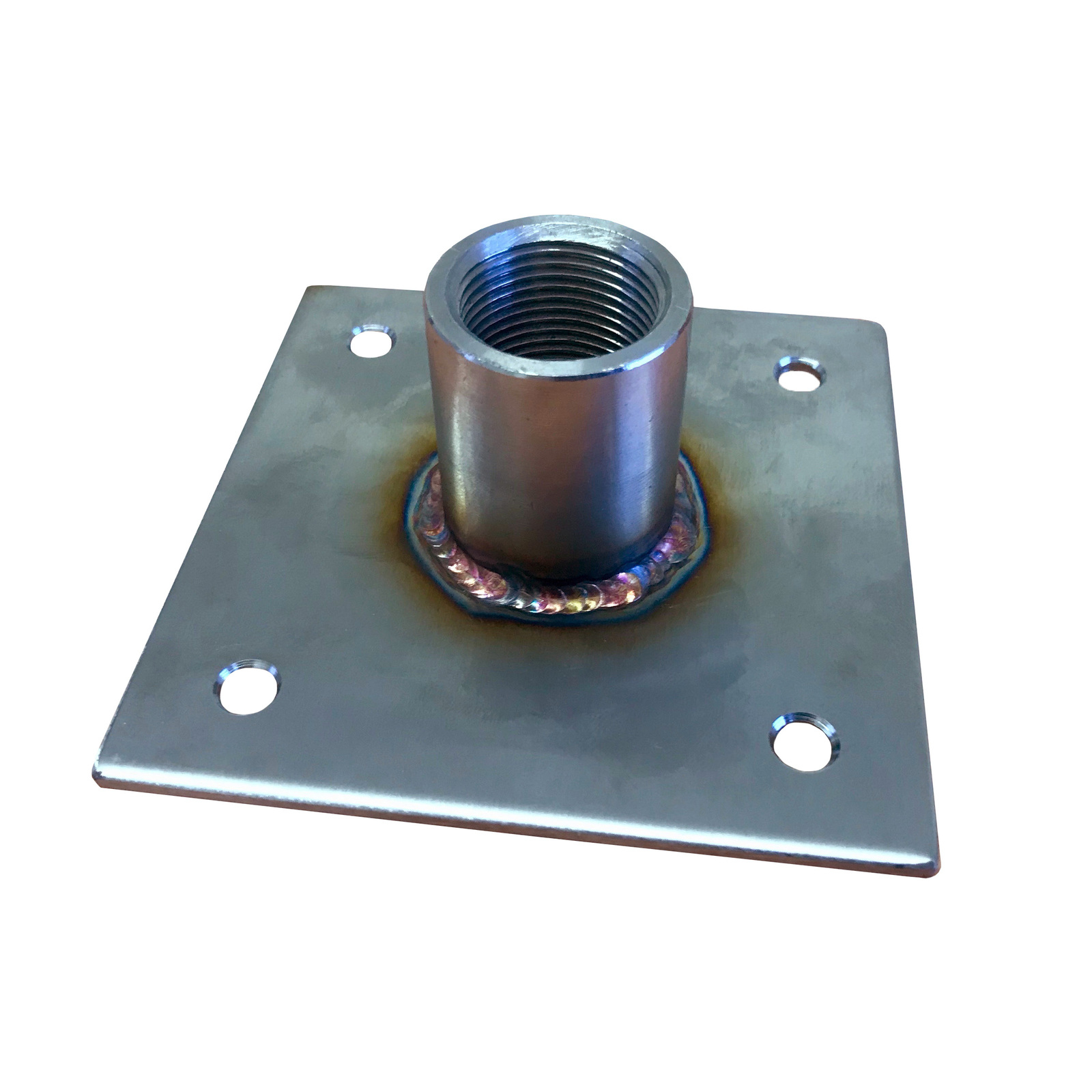

316 Stainless Steel Windsock Mounting Bracket
The TIG welded 316 SS Windsock Mounting Bracket / flange is threaded and matched to screw on to the threaded spine of the windsock frame. The 100mm x 100mm flange has four M8 bolt holes for mounting to a pole or any flat surface.
Made from 316 stainless steel in Australia, the mounting bracket is durable and suitable for use in all weather conditions.
Thread is matched to suit 13", 18" and 36" Windsock Frames.
Thread size 1 inch UNF
Specifications
Base Plate: 100mm x 100mm
Base Plate Thickness: 3mm Stainless Steel
Holes: 4 x 8mm (M8) @ 70mm Square Spacing
Height Overall: 38mm
Thread Tube ID: 24mm ( 1 Inch UMF )
Thread Tube OD: 30mm
Specifications
| SKU | 316001 |
| Brand | FlightStore |
| Shipping Weight | 0.4000kg |
| Unit Of Measure | ea |
